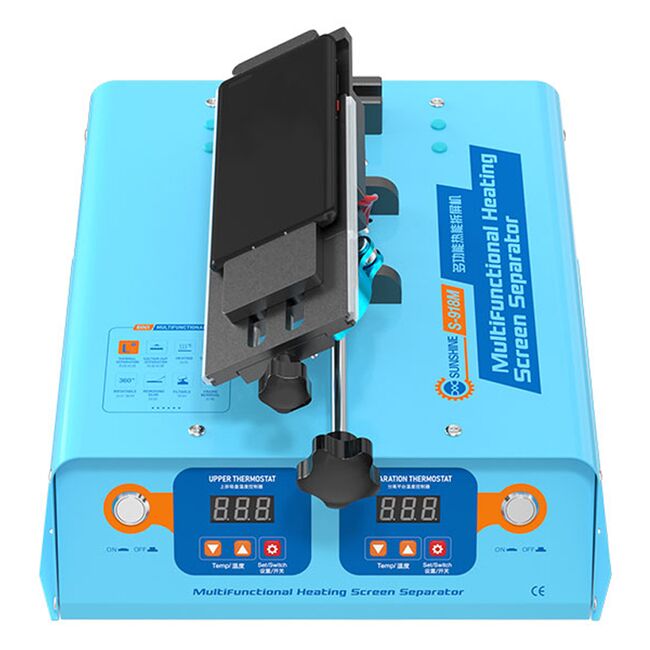

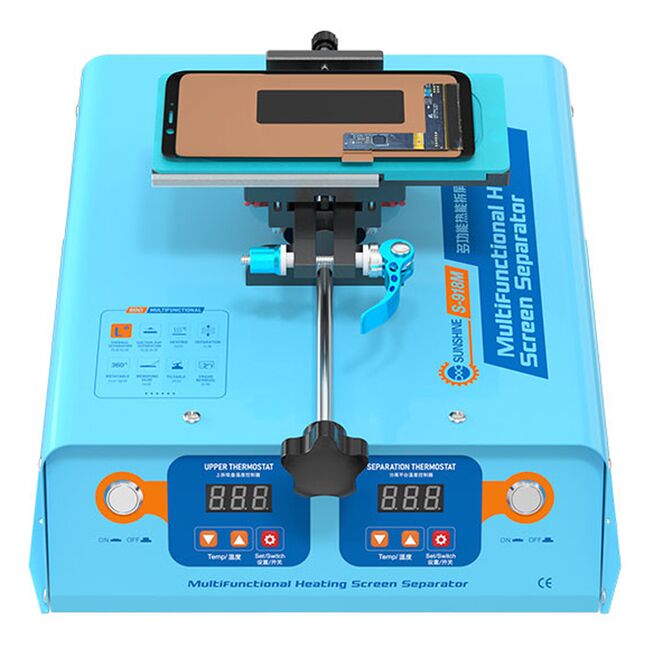

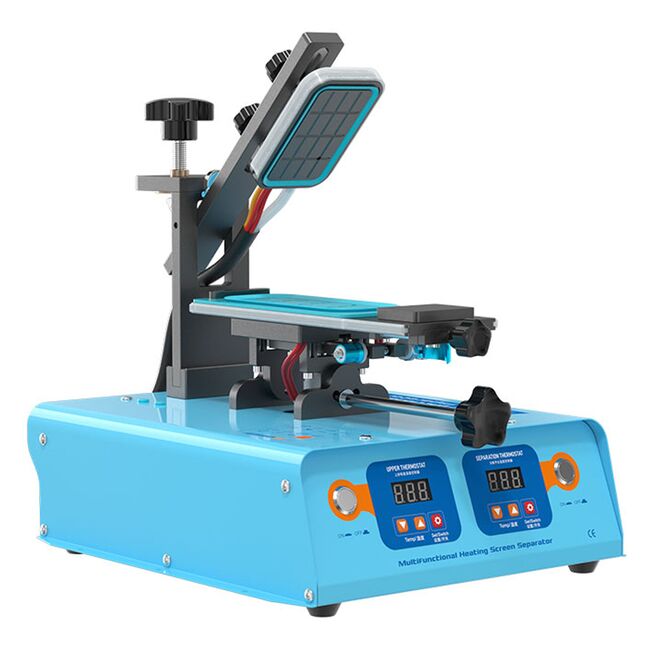

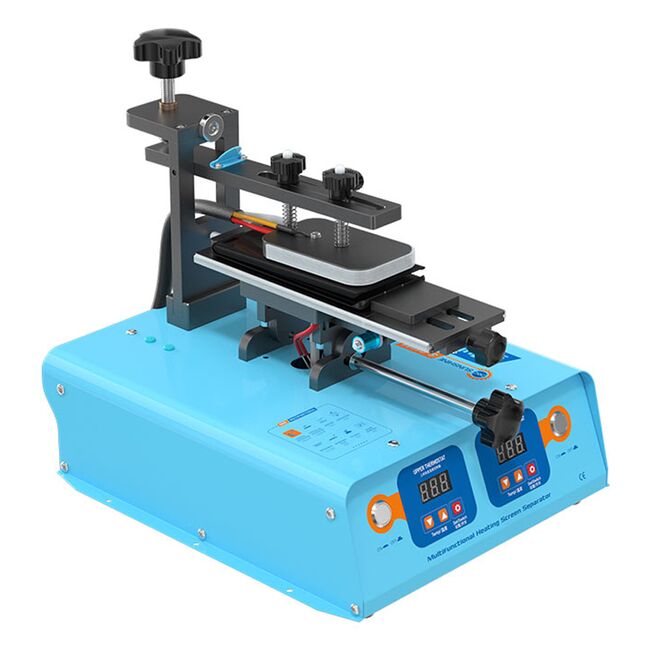

Sunshine S-918M All-in-one MultiFunctional Heating LCD Screen Separator Machine

Sunshine S-918M All-in-one MultiFunctional Heating LCD Screen Separator Machine

Features:

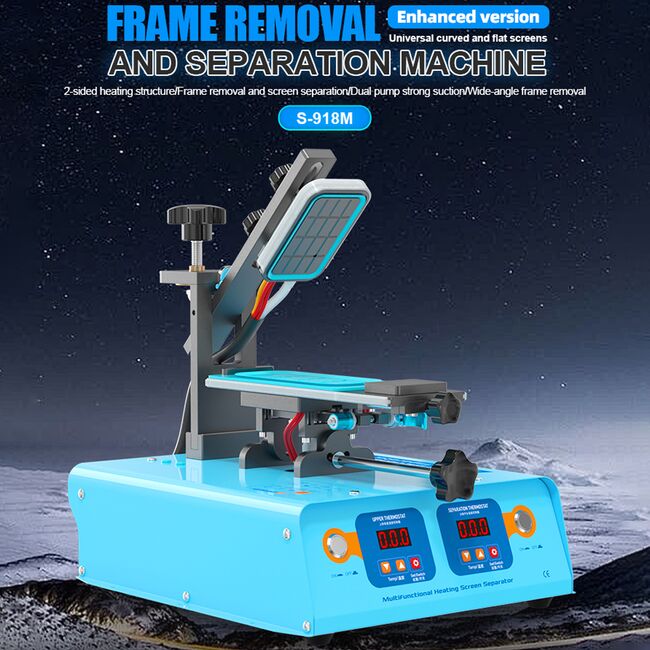

• S-918M frame removal and separation machine, enhanced version, universal curved and flat screens

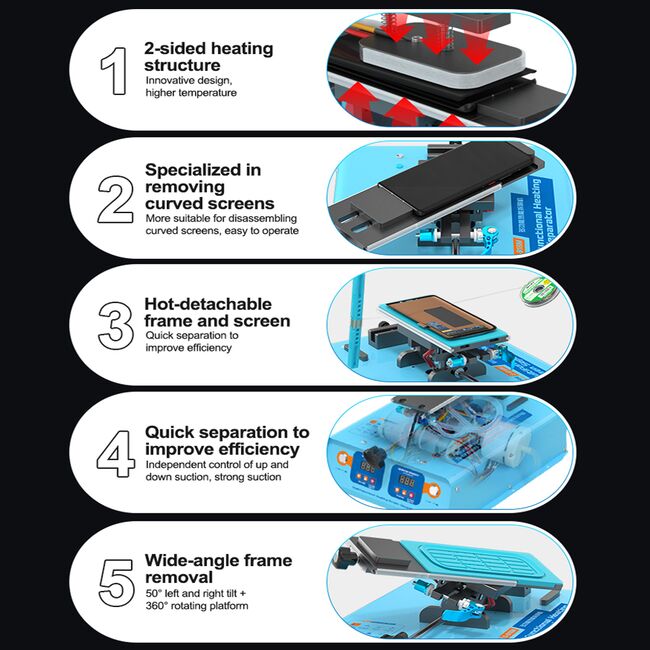

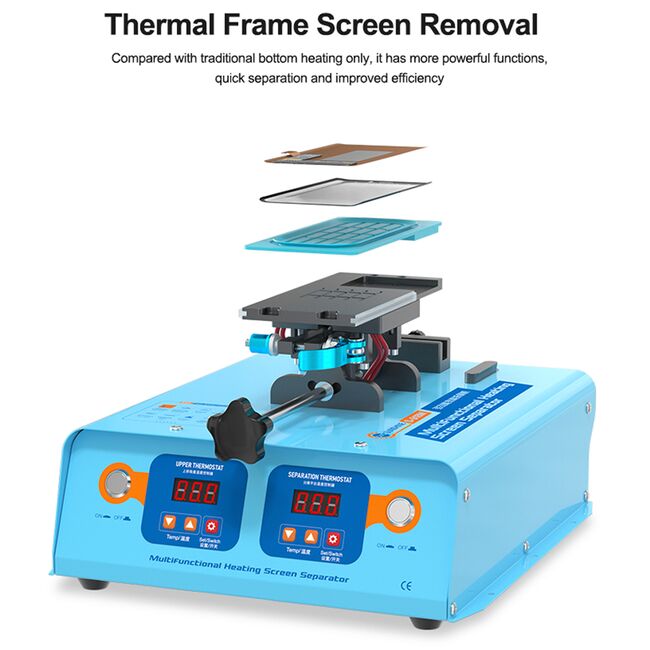

• 2-sided heating structure/Frame removal and screen separation/Dual pump strong suction/Ide-angle frame removal

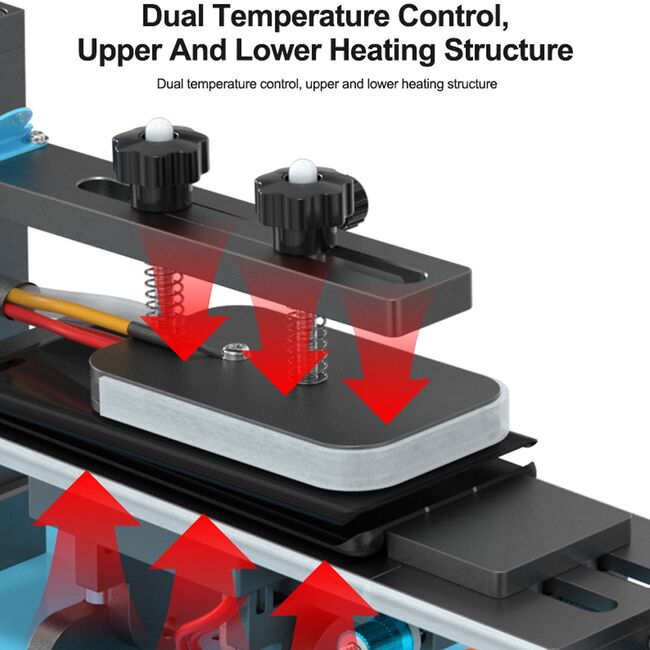

• Dual temperature control, upper and lower heating structure, dual temperature control, upper and lower heating structure
• Slide rail strong suction cup: The upper suction cup position can be adjusted according to needs, the force is even, safe, stable and reliable, easier to absorb, not easy to fall off

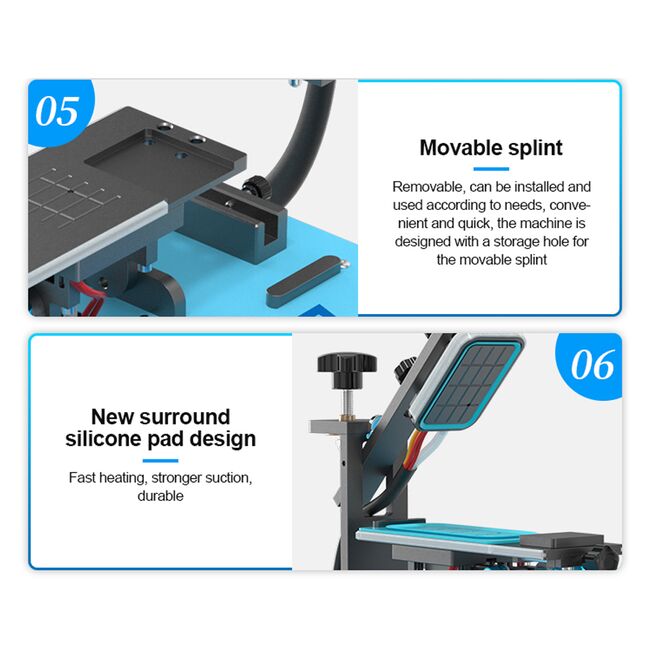

• Movable splint: Removable,can be installed and used according to needs, convenient and quick, the machine is designed with a storage hole for the movable splint
• New surround silicone pad design: Fast heating, stronger suction, durable

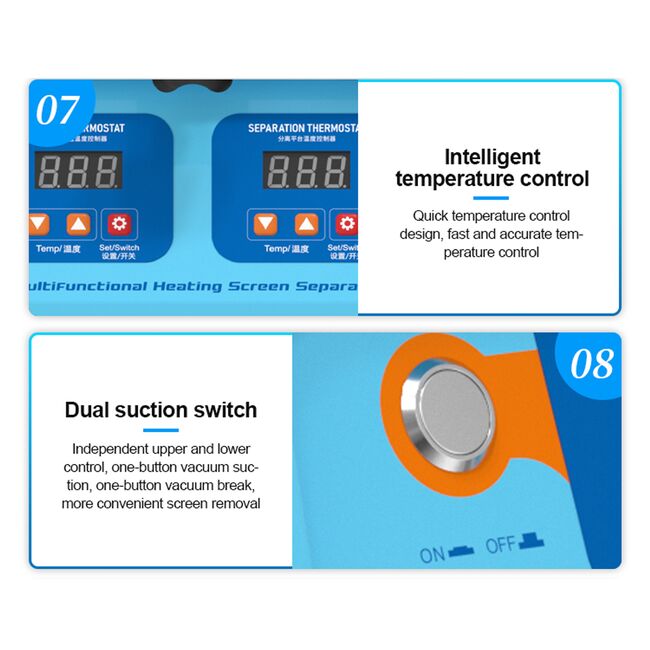

• Intelligent temperature control: Quick temperature control design, fast and accurate temperature control
• Dual suction switch: Independent upper and lower control, one-button vacuum suction, one-button vacuum break, more convenient screen removal

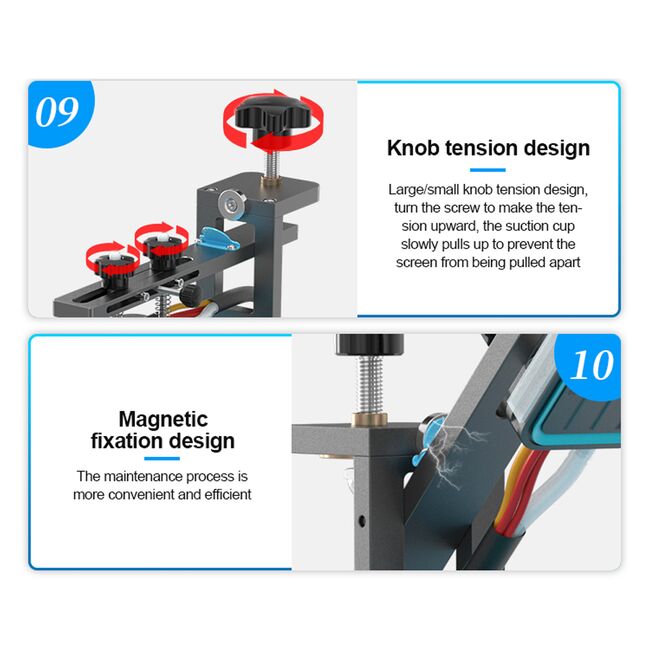

• Knob tension design: Large/small knob tension design, turn the screw to make the tension upward, the suction cup slowly pulls up to prevent the screen from being pulled apart
• Magnetic fixation design: The maintenance process is more convenient and efficient

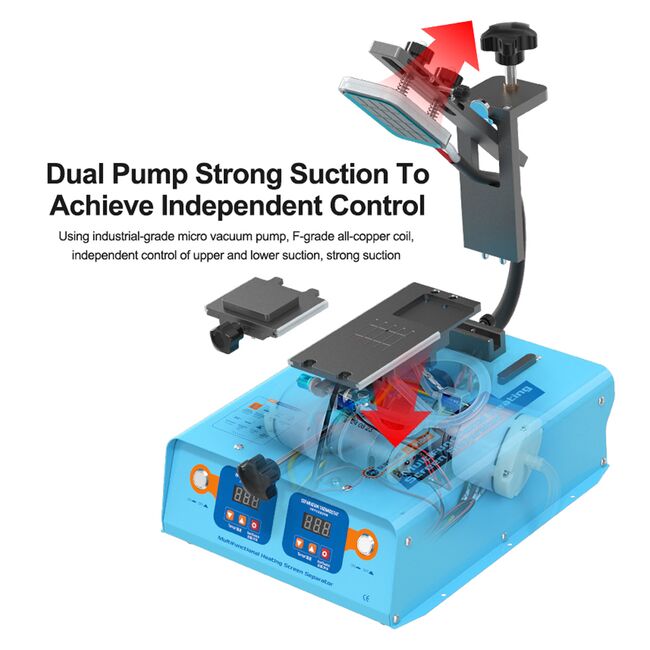

• Dual pump strong suction to achieve independent control, using industrial-grade micro vacuum pump, F-grade all-copper coil, independent control of upper and lower suction, strong suction

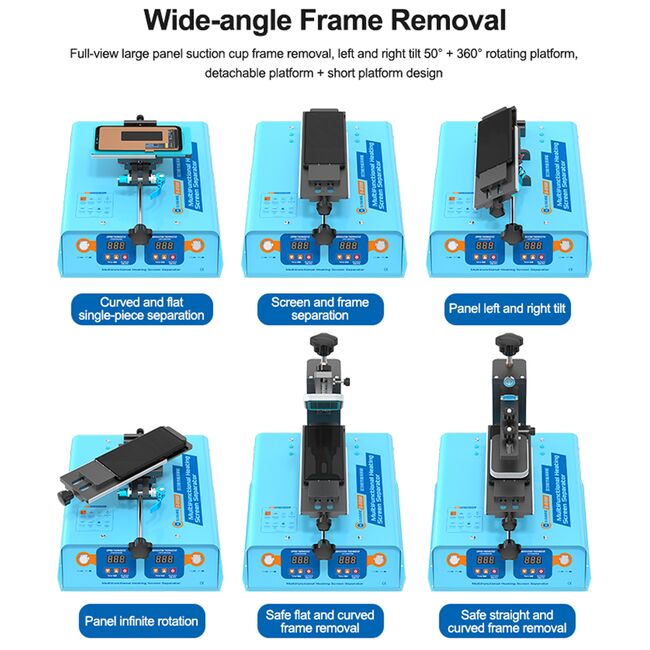

• Wide-angle frame removal, full-view large panel suction cup frame removal, left and right tilt 50+360° rotating platform, detachable platform short platform design

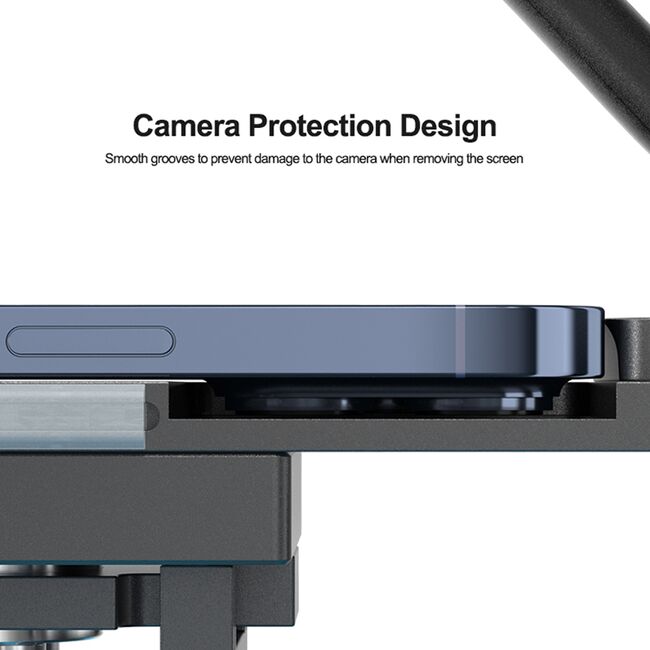

• Camera protection design, smooth grooves to prevent damage to the camera when removing the screen

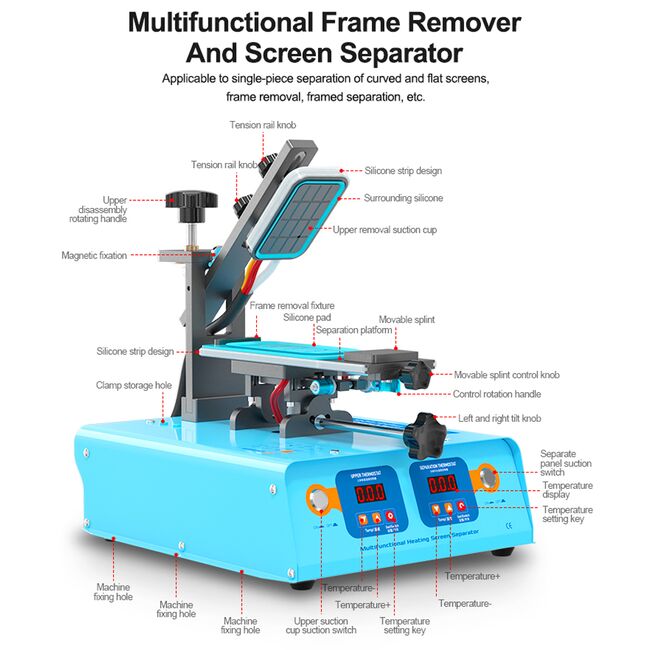

• Multifunctional frame remover and screen separator, applicable to single-piece separation of curved and flat screens, frame removal, framed separation, etc.

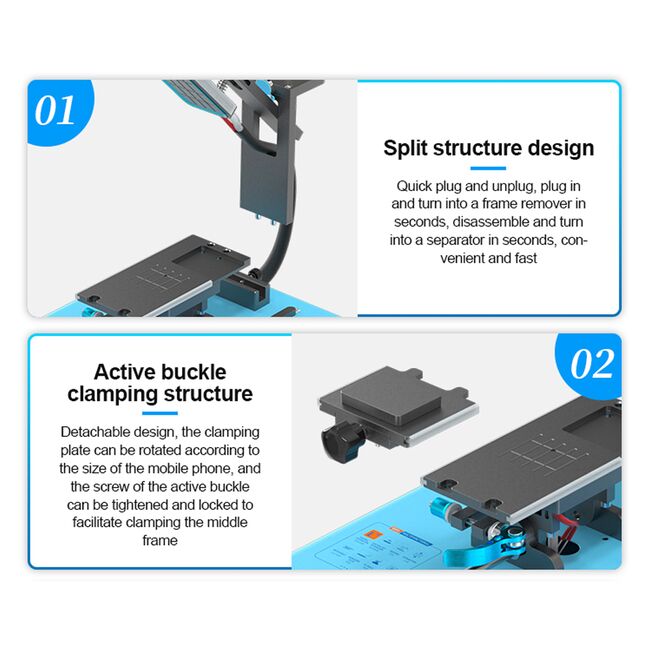

• Split structure design: Quick plug and unplug, plug in and tum into a frame remover in seconds, disassemble and turn into a separator in seconds, convenient and fast
• Active buckle clamping structure: Detachable design, the clamping plate can be rotated according to the size of the mobile phone, and the screw of the active buckle, can be tightened and locked to facilitate clamping the middle frame

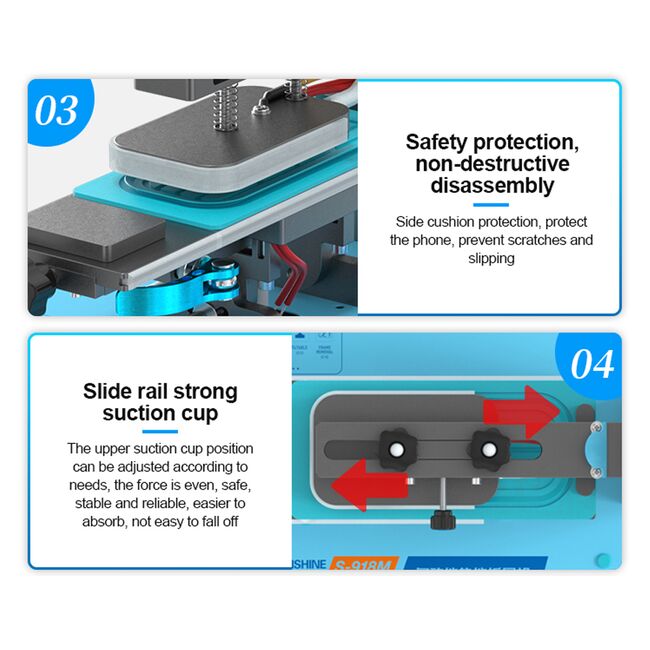

• Safety protection, non-destructive disassembly: Side cushion protection, protect the phone, prevent scratches and slipping

Specification:

• Brand: Sunshine
• Product name: Multifunctional frame remover and screen separator
• Model: S-918M

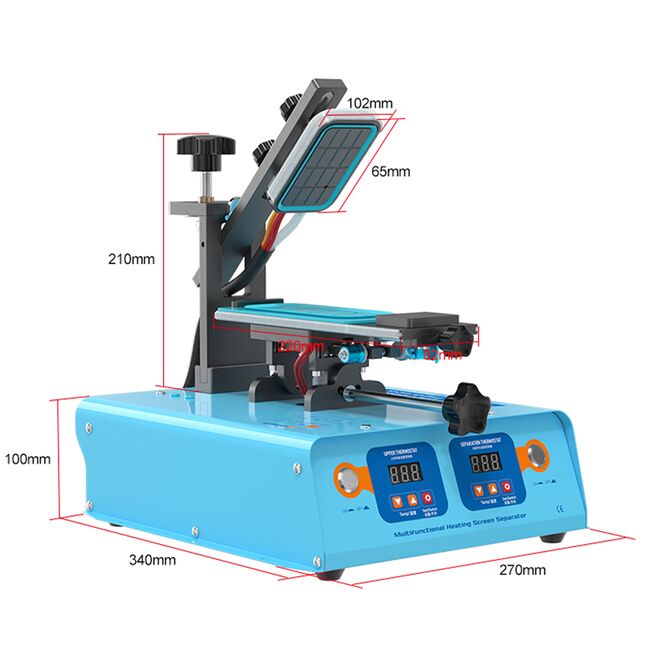

• Product size: 340*270*300mm
• Net weight: 5.0kg
• Rated voltage: 220V(110V can be customized)
• Current: 6A
• Total power: 500W (Lower suction cup 350W, Upper suction cup 150W)
• Working effective size: Lower suction cup 165*75mm; Upper suction cup 84*44mm
• Heating temperature range: 0~140℃
• Temperature accuracy: ±5℃
• Heating method: Heating tube
• Material: Cold-rolled steel plate aluminum alloy
• Negative pressure parameter(Kpa): -55

Package includes:

• 1 x Separator
• 1 x Moving Card Block
• 1 x Frame Removal Card Block
• 1 x Power Cord
• 4 x Desktop Fixing Screws
• 2 x Silicone Pad
