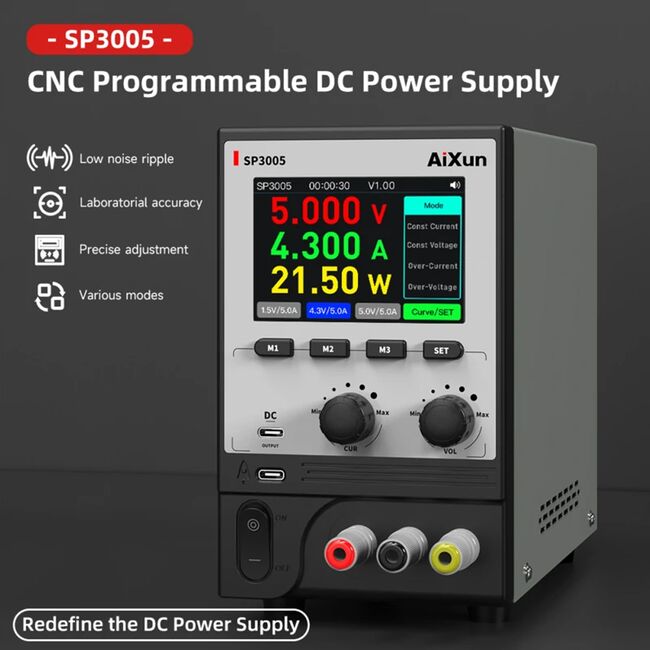

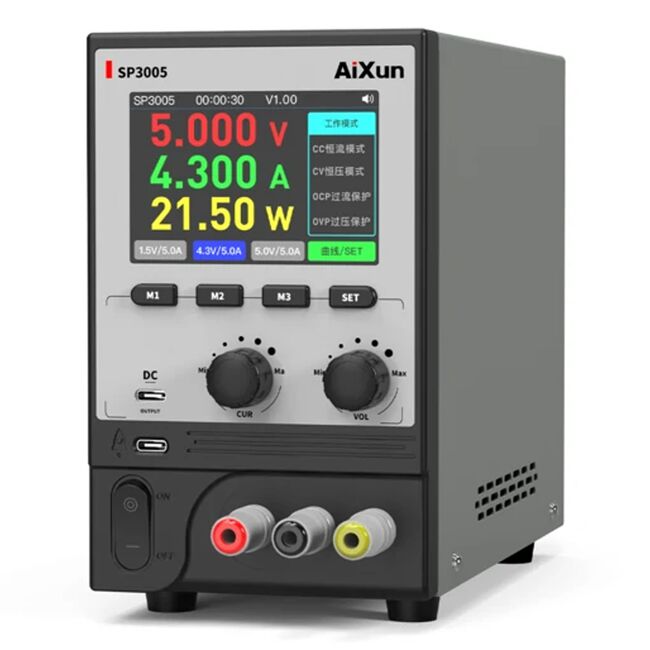

Aixun SP3005 30V / 5A 4-digit Display Intelligent Interconnection CNC Programmable DC Power Supply

Aixun SP3005 30V / 5A 4-digit Display Intelligent Interconnection CNC Programmable DC Power Supply

Functions:

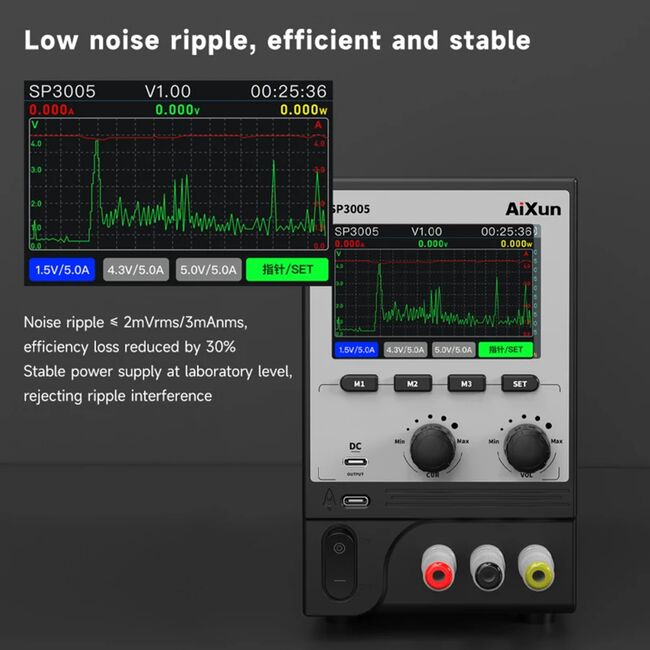

• Low noise ripple, efficient and stable, the noise ripple is ≤2mV rms / 3mA rms
• Over-voltage/current protection, constant voltage/current output
• Support Type-C 30W fast charging QC/PD protocols output

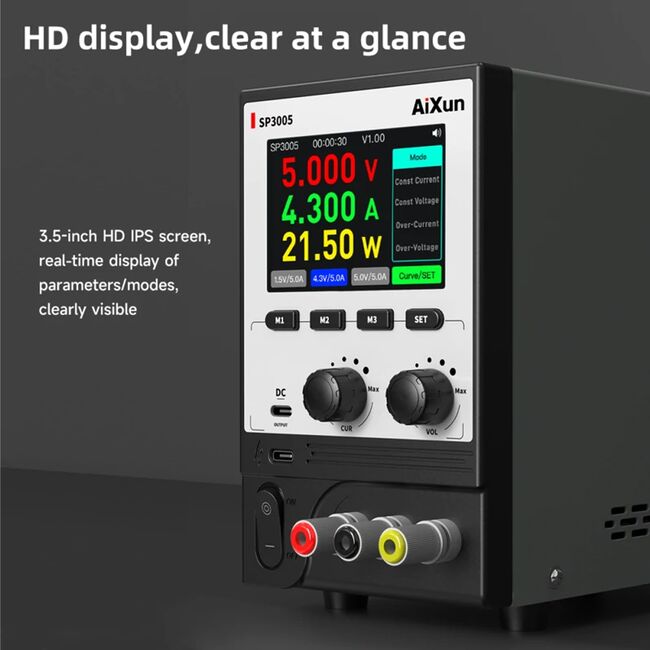

• 3.5-inch HD IPS screen, real-time clear display of parameters/modes
• Dual control through knob and buttons, precise adjustment

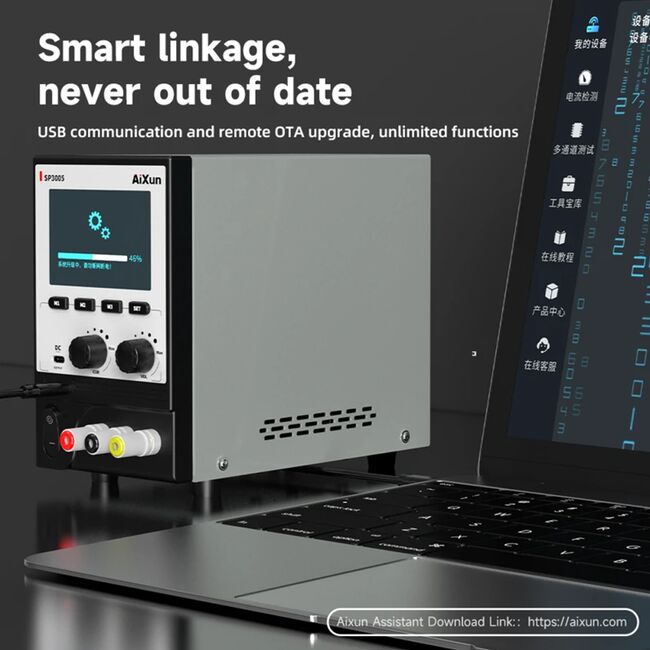

• USB communication and remote OTA upgrade, unlimited functions expansion
• Adjust the voltage/current to three decimal places and preset multiple sets of output voltage/current

Features:

• SP3005 CNC Programmable DC Power Supply, redefining precision power delivery
• Designed with ultra-low noise ripple (≤2mVrms/3mArms) and 30% lower efficiency loss, it ensures high stability and minimal interference for demanding applications

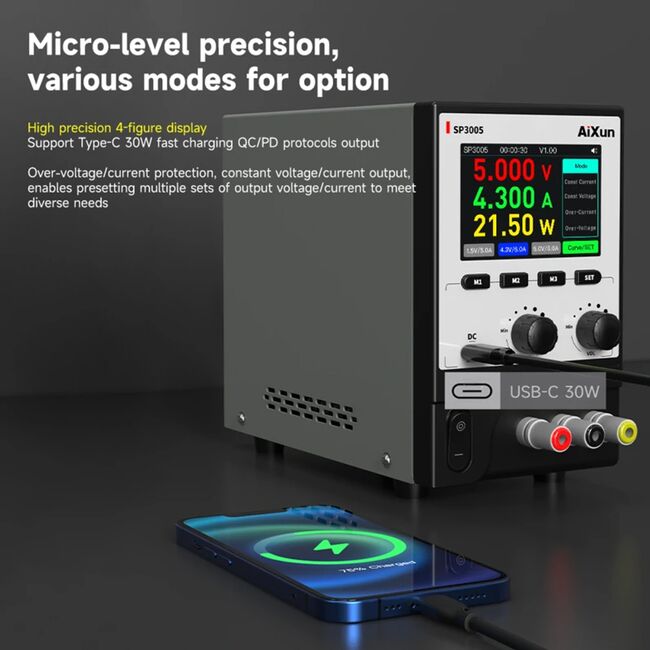

• Offers micro-level voltage/current adjustment down to three decimal places, supported by high precision 4-figure display
• Featuring dual control modes (knob + buttons), it provides intuitive and accurate operation
• Built-in CV/CC modes, OVP/OCP protection, and multi-group preset outputs meet diverse testing and development needs
• Stay future-ready with USB communication and OTA remote upgrade, allowing unlimited function expansion
• The Type-C 30W fast charging output supports QC/PD protocols
• A 3.5-inch HD IPS screen displays parameters and modes in real time for clear visibility
• Ideal for audio equipment development, maintenance and debugging, electronics lab experiments, and low-noise sensor power supply,SP3005 is the perfect choice for precision-focused professionals.

Specification:

• Product Name: CNC Programmable DC Power Supply
• Brand: AiXun
• Model: SP3005
• Input voltage: 230V
• Communication: USB
• Display type: 3.5 inch IPS Screen
• Material: Sheet metal + plastic
• Rated power: 150W (150W square transformer)
• Voltage/current range: 0~30V/0~5A adjustable
• Load regulation: Voltage: ≤ 0.01%+2mV/Current: ≤0.1%+5mA
• Linear regulation: Voltage: ≤ 0.01%+3mV/ Current: ≤ 0.1%+3mA; Ripple (20hz-20M)
• Voltage: ≤ 2mV rms/ Current: ≤ 3mA rms (ripple 1MV)
• Working mode: CC/CV modes; OV/OC protection
• Net weight: 4.6kg
• Dimensions: 200*100*170mm

Package includes:

• 1 x Power Supply
• 1 x Power Cord
• 1 x Banana Plug Alligator Clip
