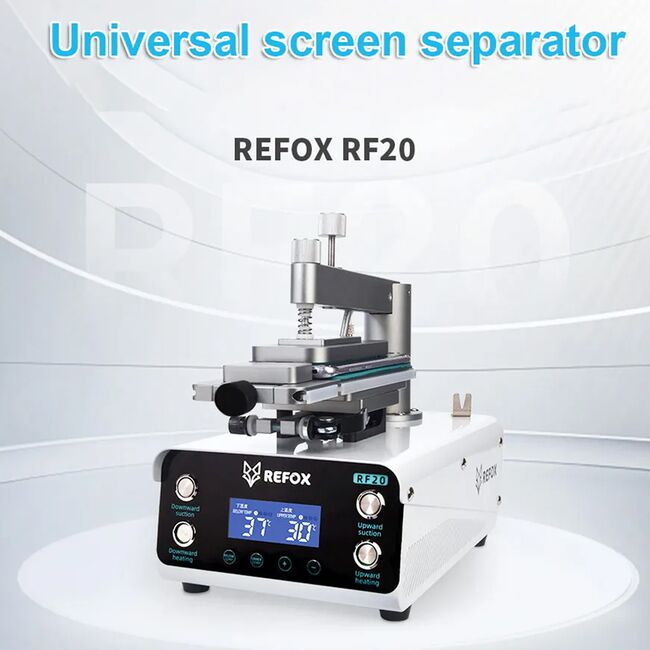

Refox RF20 360° Rotating Universal Mobile Phone LCD Screen Heating Separation Machine

Refox RF20 360° Rotating Universal Mobile Phone LCD Screen Heating Separation Machine

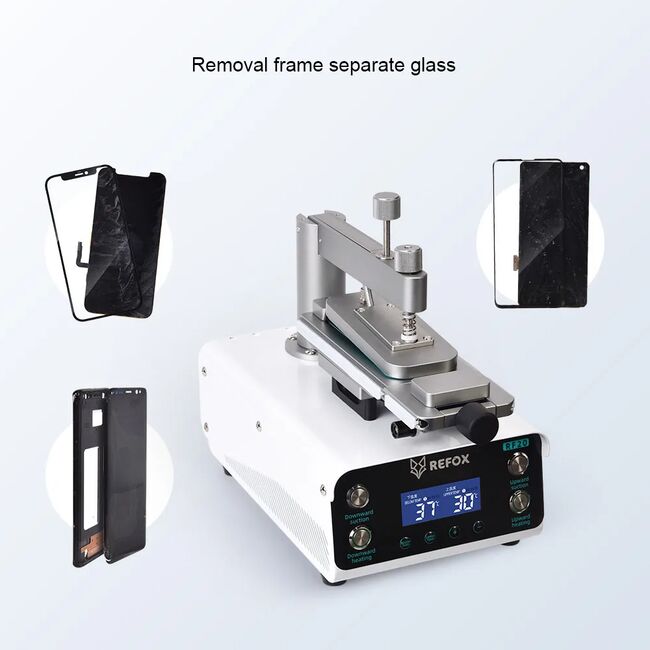

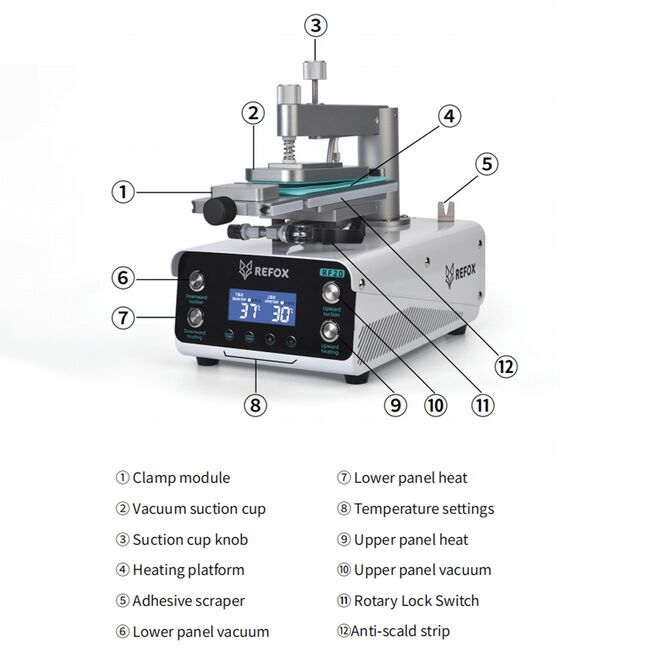

• Multi-functionality: Applicable to frame removal and glass only separation of edged and curve screens, back cover removal

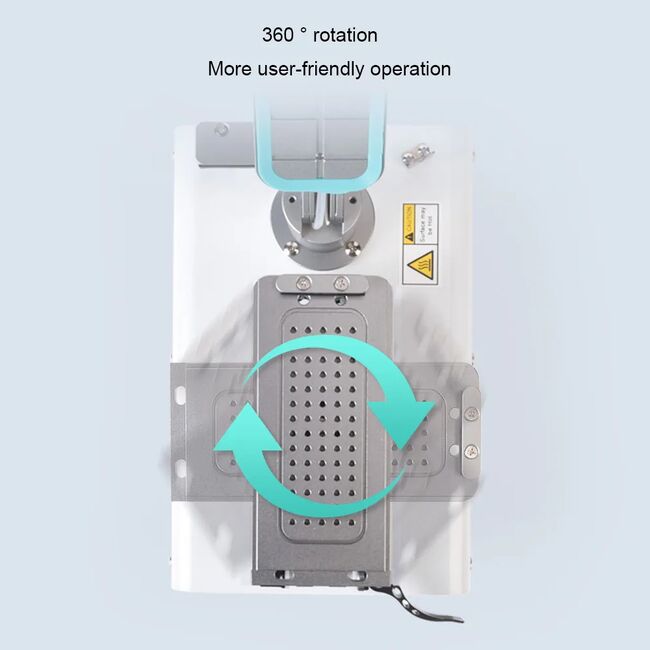

• 360° rotating heating platform: built with high-precision bearings for smooth rotation, enabling operation from various angles

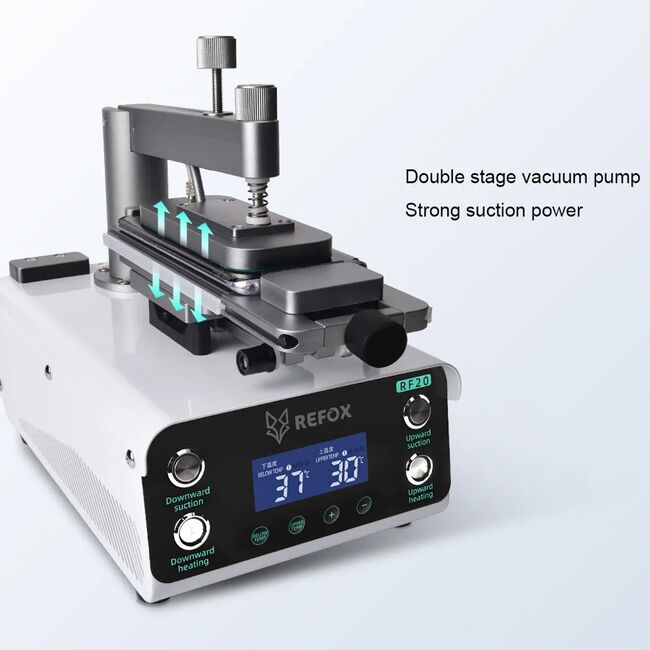

• Dual-stage vacuum pump: provides strong suction for secure vacuum hold

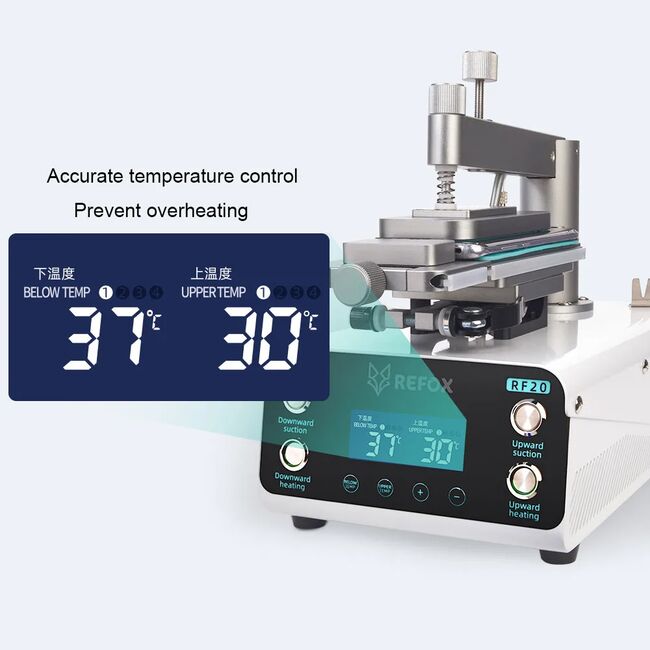

• Precise temperature control: prevents overheating or insufficient heating
• Sturdy machine design: Fixed with metal plates and screws on both sides for stable operation

• Product Name: Universal Screen Separating Machine
• Brand: REFOX
• Model: RF20
• Working Voltage: 110V/220V
• Power: 320W
• Product Size: 326*176*248 mm
• Packaging Size: 345*250*285 mm
• Net Weight: 5KG

• Turn on the power switch.
• Set the "BELOW TEMP" to 90C and press the "Downward Heating" button to start heating
• Place the silicone pad on the heating panel, place the phone screen face down on the heating panel,and press the "Downward suction" button.

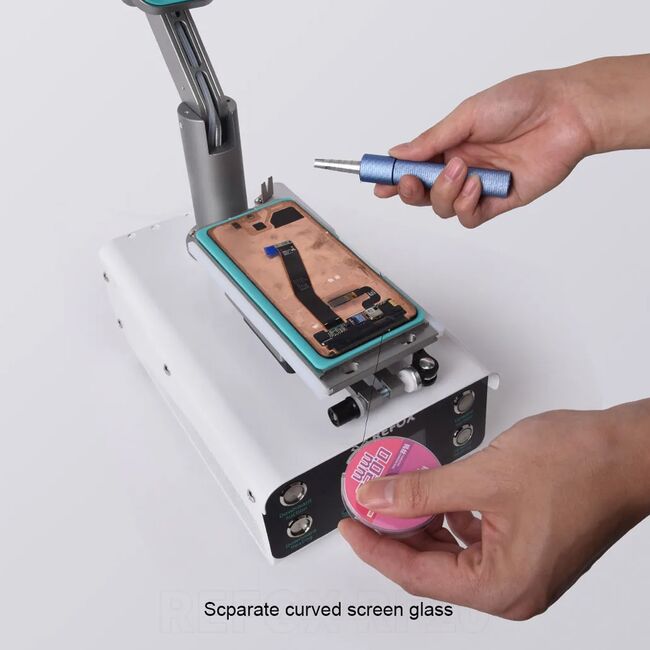

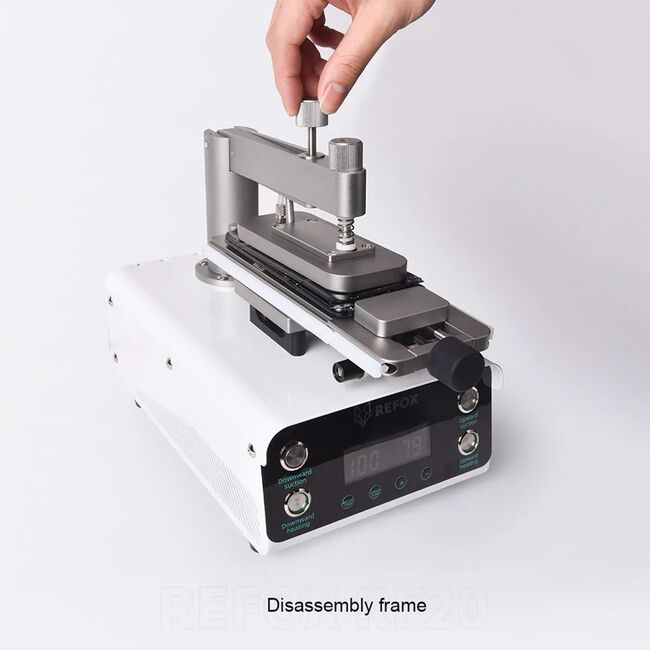

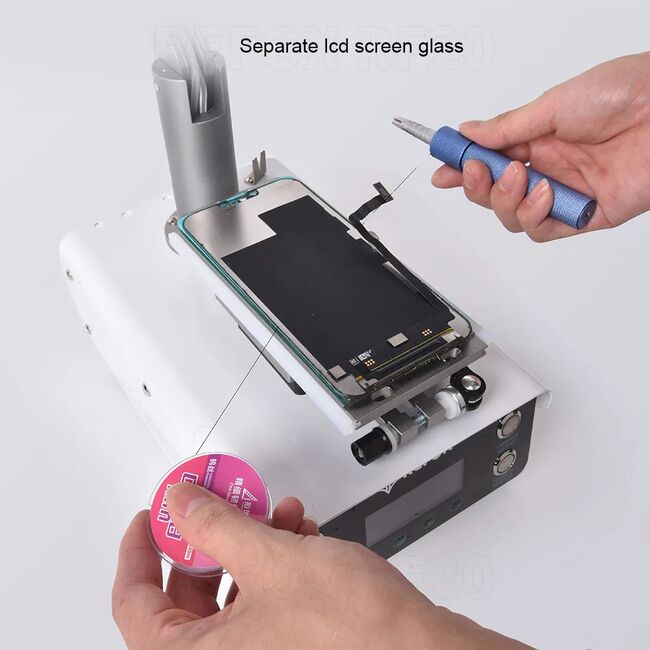

• First,separate the frame, then separate the glass

• Turn on the power switch
• Set the “UPPER TEMP” to 80°C and the “BELOW TEMP” to 110°C, then press the "Upward Heating" and "Downward Heating" buttons to start  heating
• Remove the phone separation silicone pad and insert the clamp module into the heating panel
• Place the phone screen face up on the heating panel and tighten the  screws
• Lower the Vacuum Suction Cup, hold the "Upward suction" button, and attach it to the screen
• Tighten the Suction Cup Knob to lift up the screen

• Before separating the screen, check the device to ensure it is in good  working condition
• Pre-treat the screen, such as applying tape, to prevent damage during separation.
• After heating softens the screen, use specialized tools like thin blades  or knives to carefully separate the screen from the device body along the  screen's edge. Be mindful of the force and angle to avoid damaging the  screen or body.
• After separation, clean any residual adhesive on the screen using a  specialized adhesive remover and tools like adhesive rollers
• After using the heating function, turn off the power to prevent  prolonged heating

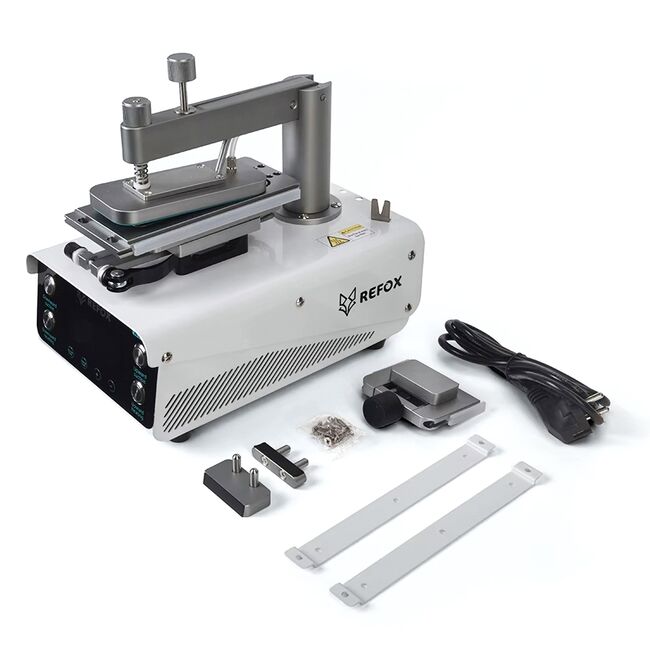

• 1 x Separating Machine
• 1 x Power Cable
• 1 x Wide locking pin (for small phones)
• 1 x Narrow locking pin (for large phones)
• 1 x Panel Clamp Module
• 2 x Desktop Mounting Accessories
• 1 x Phone Separation Silicone Pad
