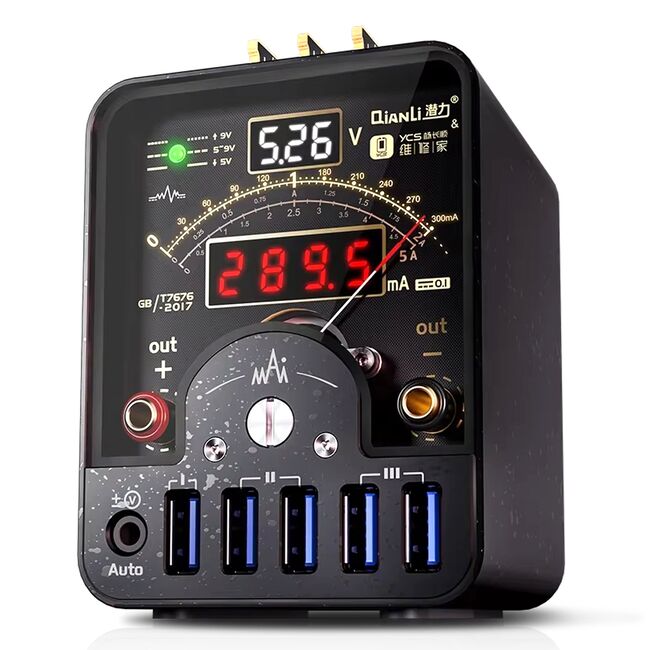

Qianli & YCS LT2 mAi 30V / 5A Independent Power DC Diagnostics

Qianli & YCS LT2 mAi 30V / 5A Independent Power DC Diagnostics

Features:

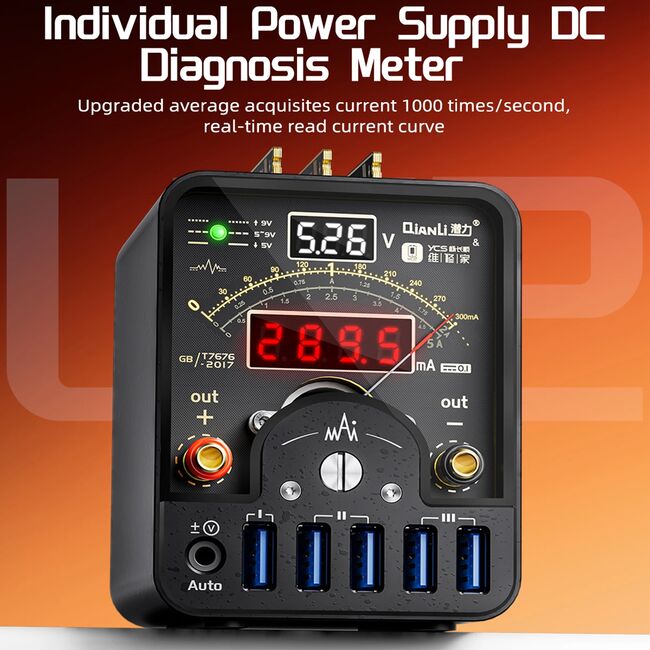

• Individual power supply DC diagnosis meter, upgraded average acquisites current 1000 times/second, real-time read current curve

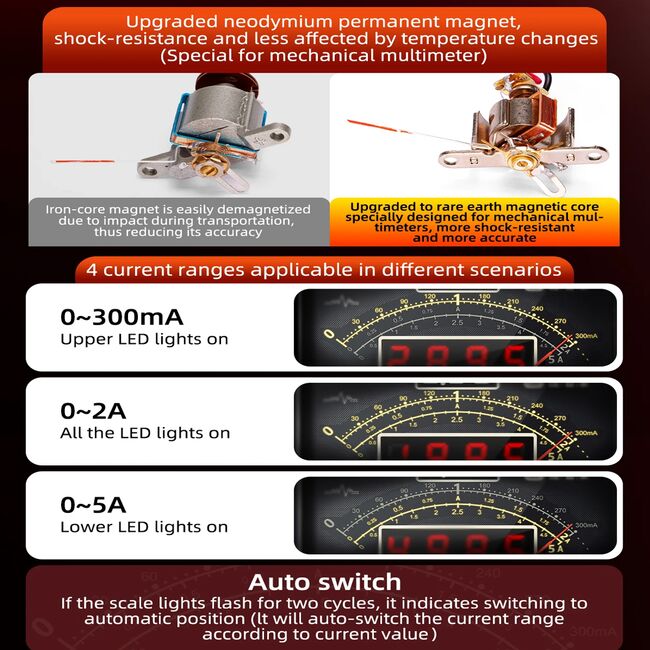

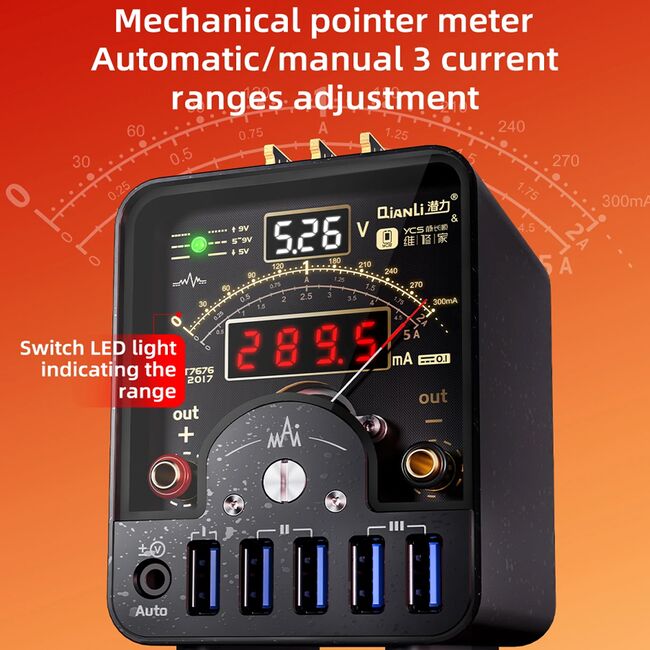

• Mechanical pointer meter, automatic/manual 3 current ranges adjustment, upgraded neodymium permanent magnet, shock-resistance and less affected by temperature changes (Special for mechanical multimeter)
• 4 current ranges applicable in different scenarios: 0~300mA upper LED lights on; 0~2A all the LED lights on; 0~5A lower LED lights on
• Auto switch: If the scale lights flash for two cycles, it indicates switching to automatic position (It will auto-switch the current range according to current value 300mA

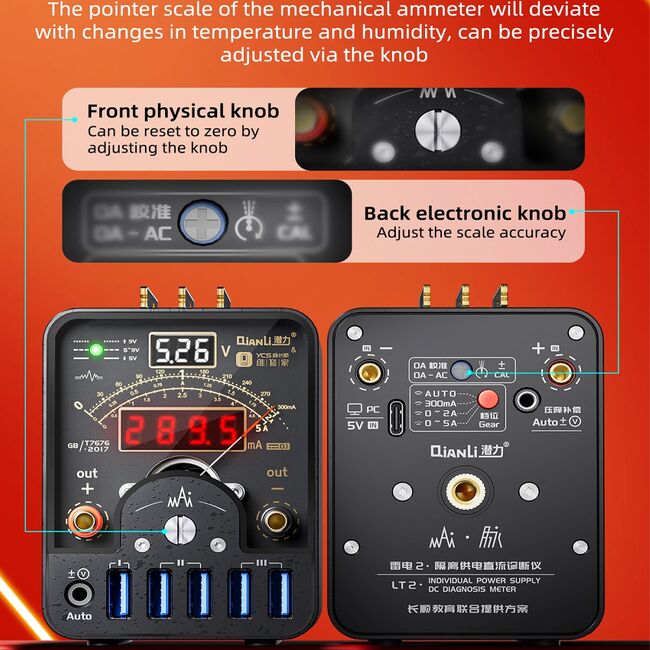

• Added pointer algorithm calibration adjustment, the pointer scale of the mechanical ammeter will deviate with changes in temperature and humidity, can be precisely adjusted via the knob

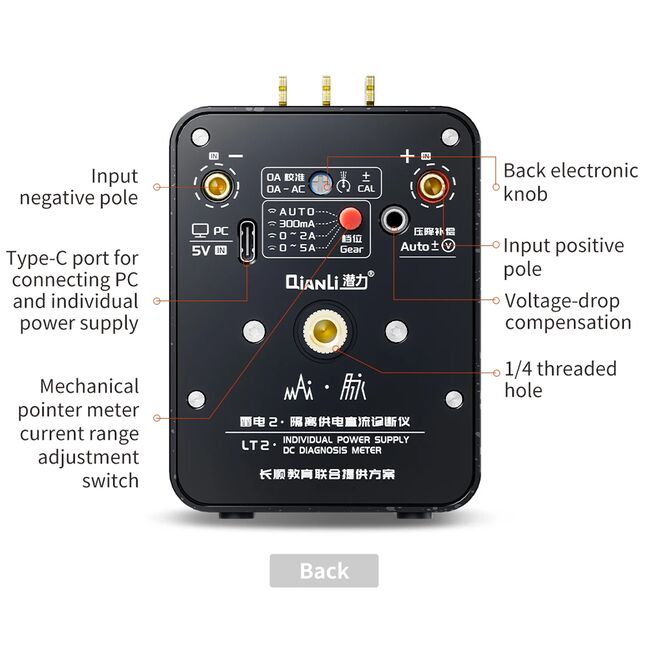

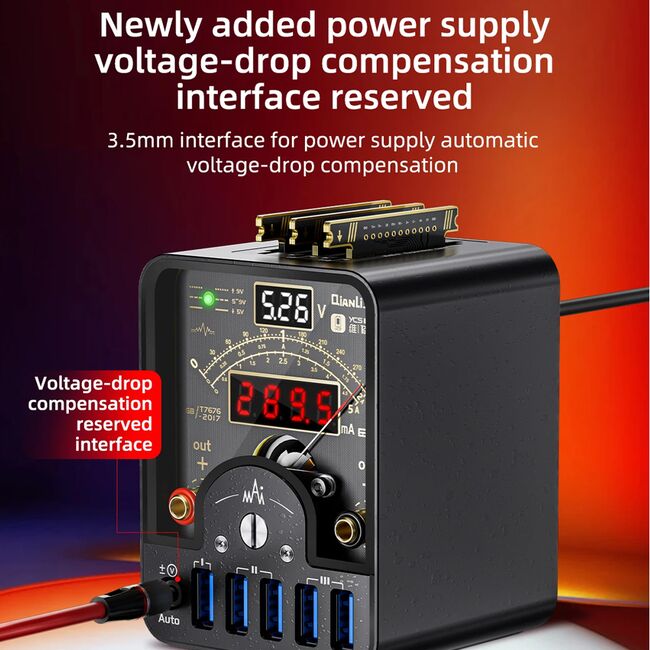

• Newly added power supply voltage-drop compensation interface reserved, 3.5mm interface for power supply automatic voltage-drop compensation

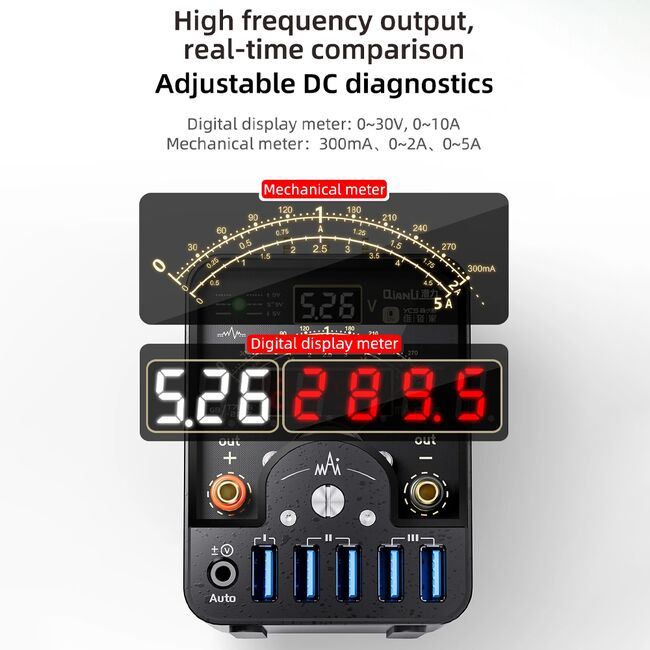

• High frequency output, real-time comparison, adjustable DC diagnostics, Digital display meter: 0~30V, 0~10A; Mechanical meter: 300mA, 0~2A, 0~5A

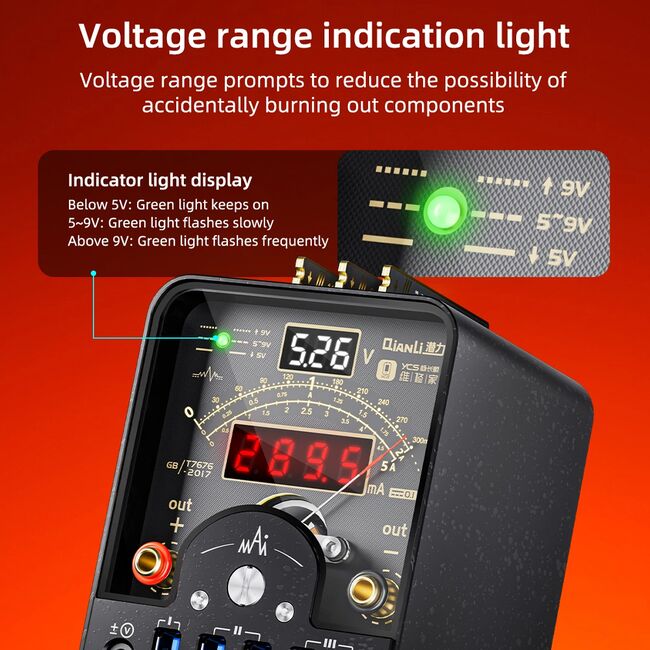

• Voltage range indication light, voltage range prompts to reduce the possibility of accidentally burning out components

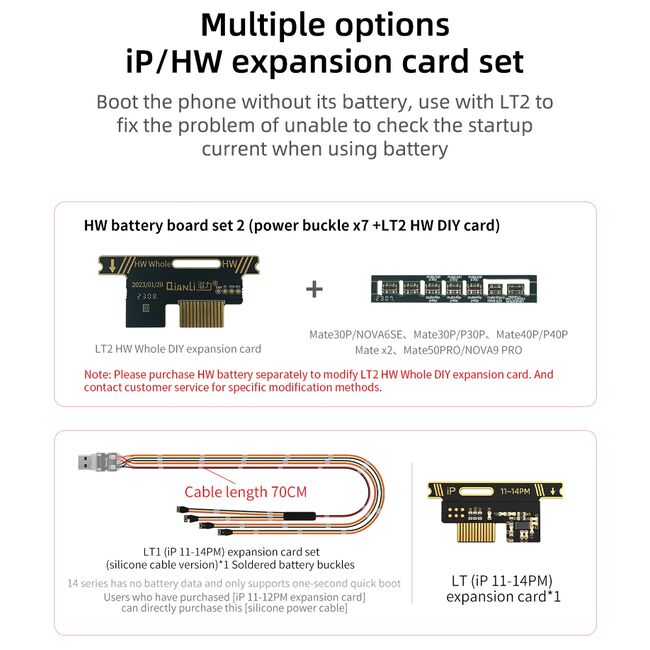

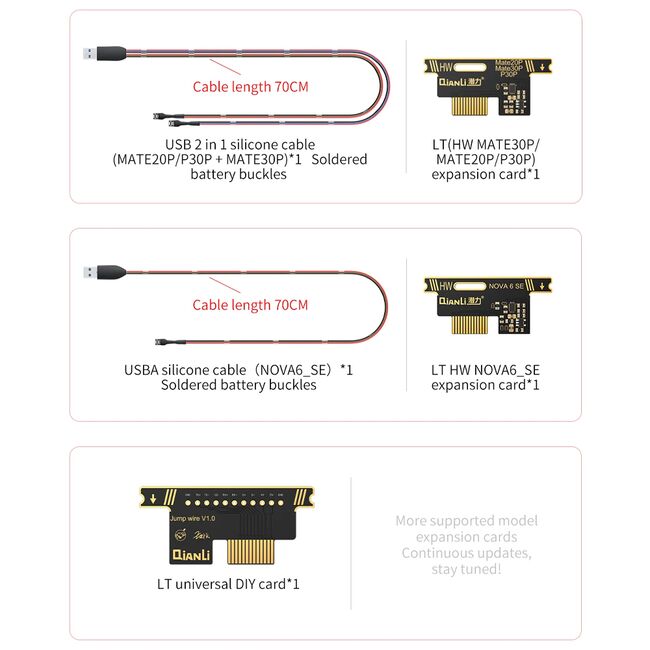

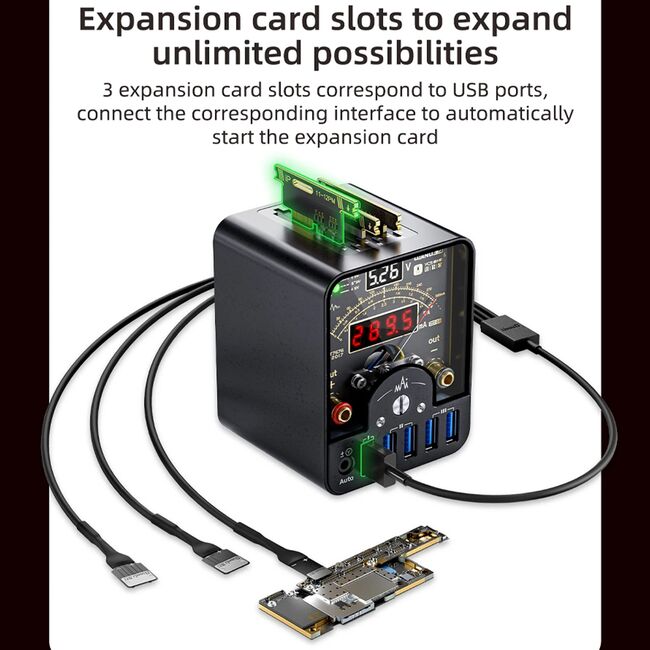

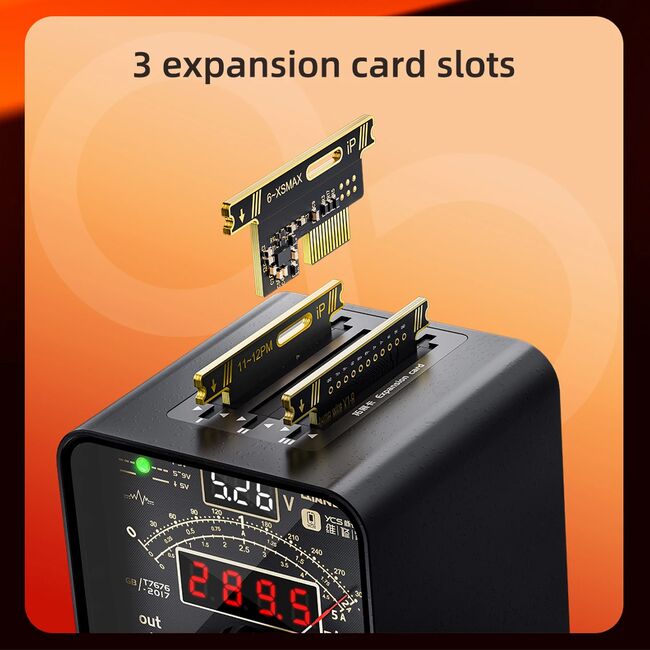

• Expansion card slots to expand unlimited possibilities, 3 expansion card slots correspond to USB ports, connect the corresponding interface to automatically start the expansion card

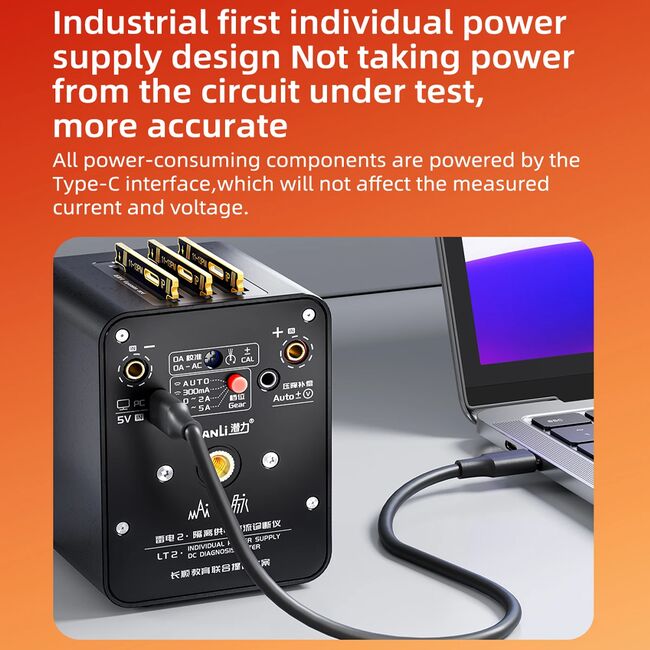

• Industrial first individual power supply design, not taking power from the circuit under test, more accurate
• All power-consuming components are powered by the Type-C interface, which will not affect the measured current and voltage

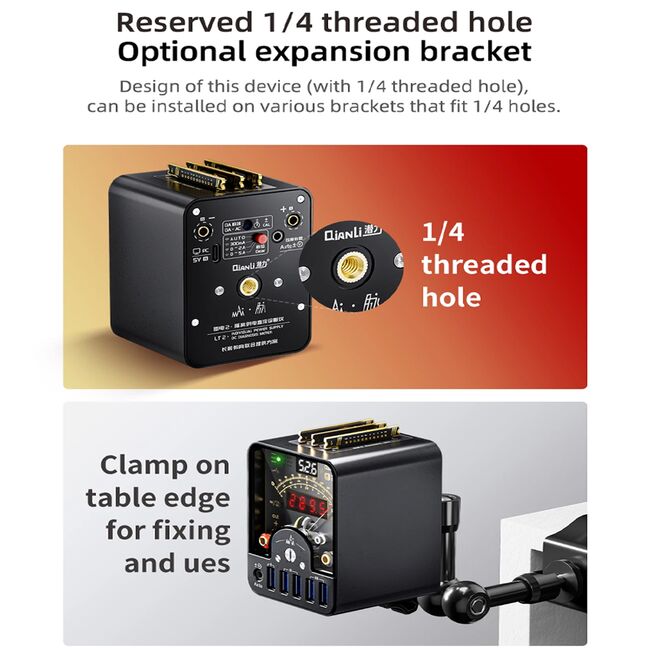

• Reserved 1/4 threaded hole, optional expansion bracket, design of this device (with 1/4 threaded hole), can be installed on various brackets that fit 1/4 holes.

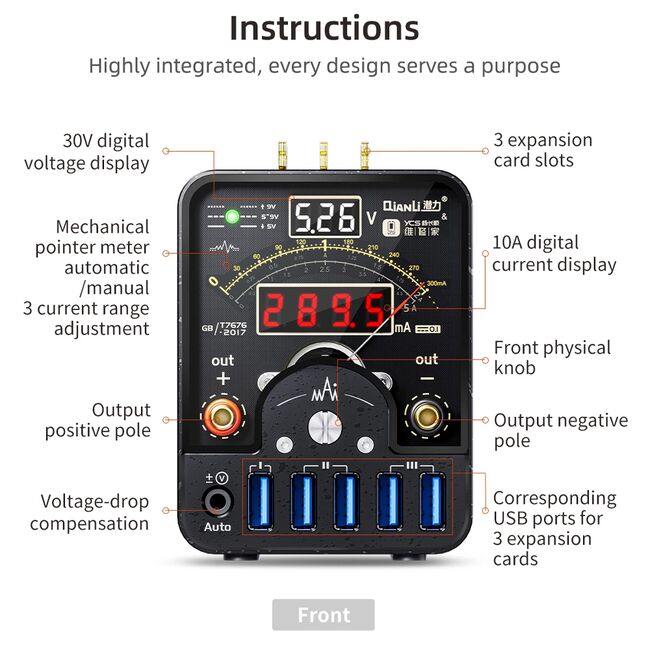

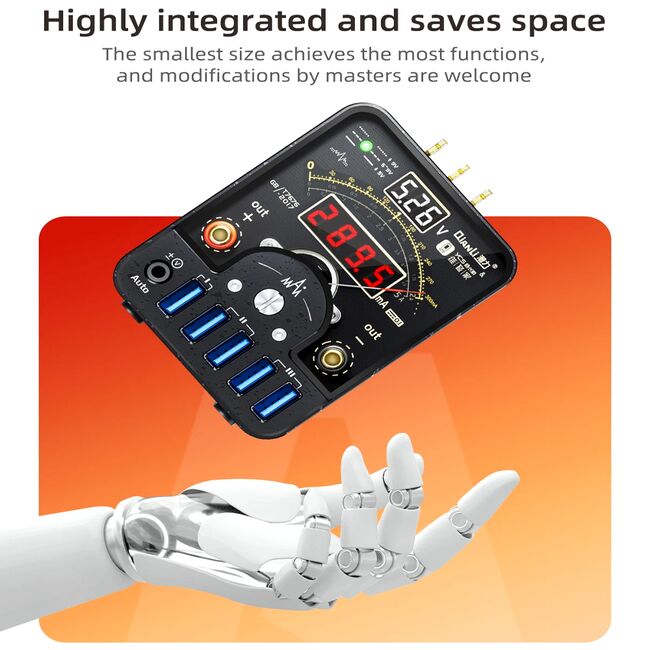

• Highly integrated and saves space, the smallest size achieves the most functions, and modifications by masters are welcome

Package includes:

• 1 x LT2 Diagnosis
• 1 x Double Banana Plugs Cable
• 1 x USB to Type-C Power Cable
