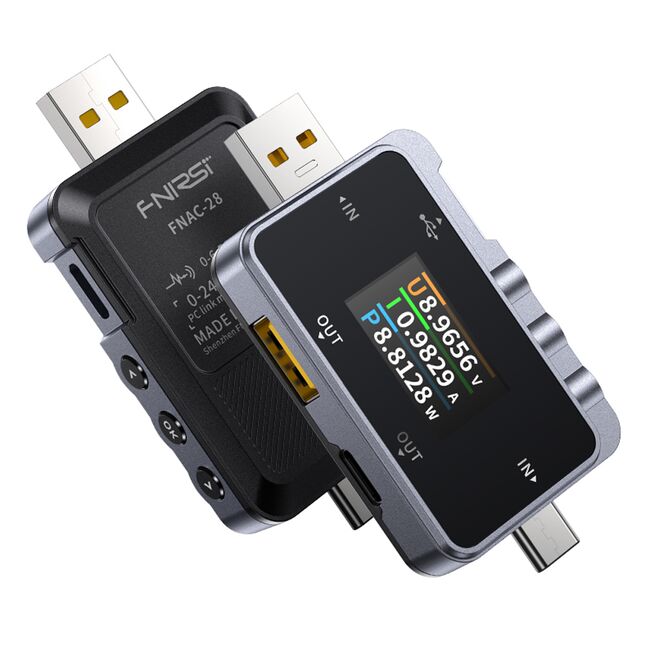

FNIRSI FNAC-28 Multi-function Type-C & USB Professional Grade Ripple Monitoring Tester

FNIRSI FNAC-28 Multi-function Type-C & USB Professional Grade Ripple Monitoring Tester

Features:

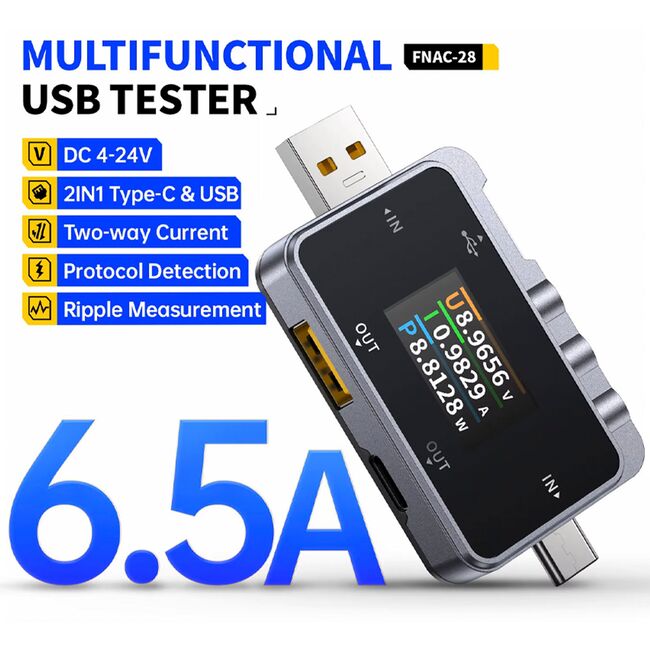

• Multi-function USB ammeter, bi-directional current, professional-grade ripple monitoring, USB-A/Type-C dual interface, super fast charging, plug and play, high measurement accuracy

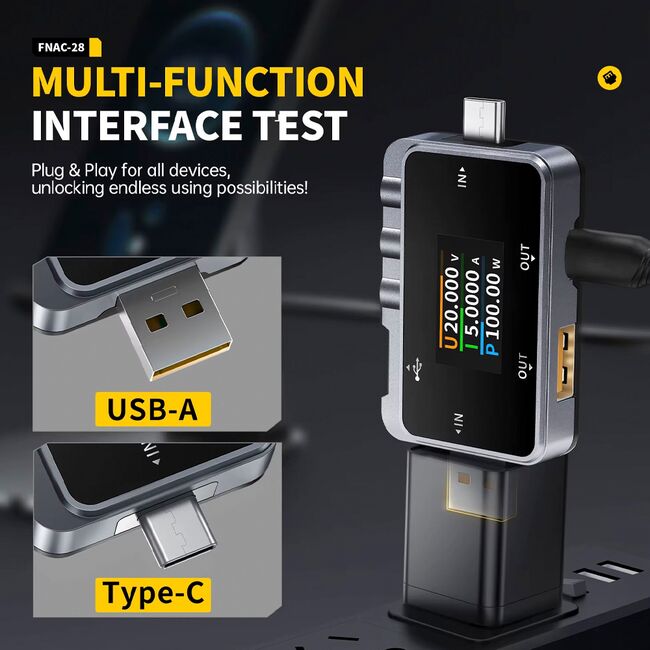

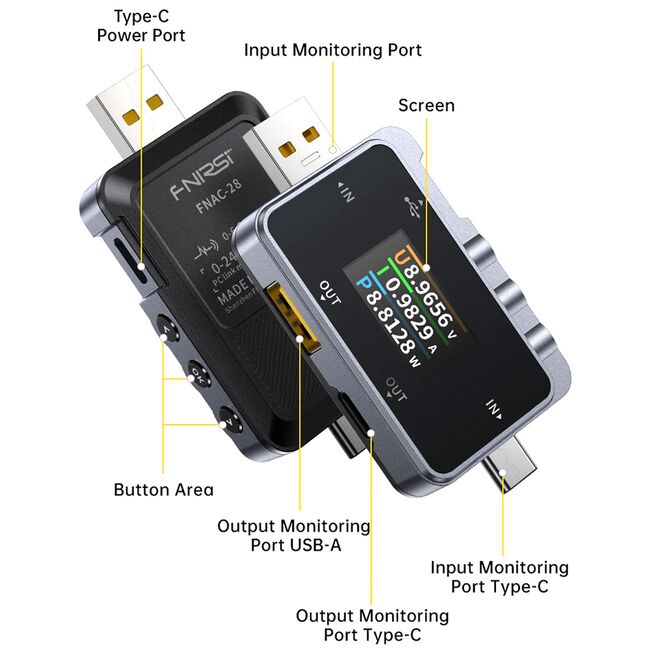

• With USB-A, Type-C dual male port, suitable for different interfaces of the charger detection and charging detection, plug and play, no need to transfer
• Equipped with a 16-bit ADC chip, bringing unparalleled high-precision measurement to meet your stringent requirements

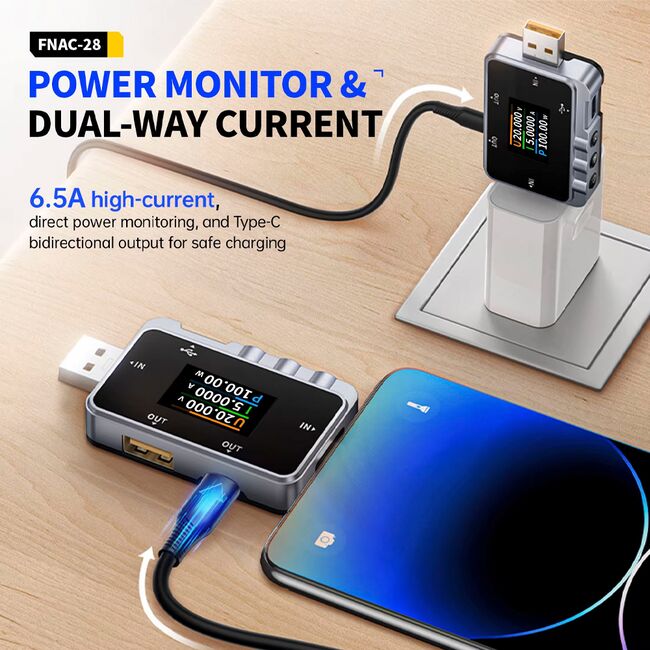

• Real-time power detection bidirectional current charging, 6.5A high-current USB interface, straight-through charging power detection, Type-C interface supports bidirectional current output

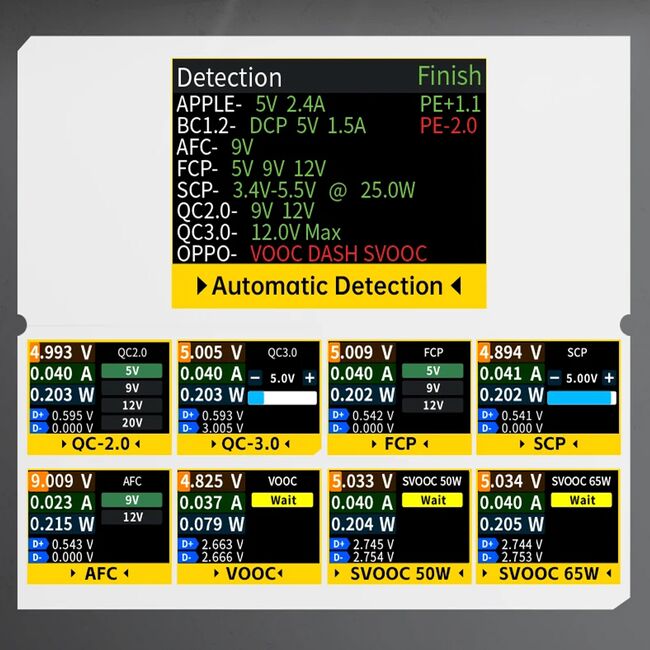

• Fast charging protocol all-round king, supports a variety of protocol triggers, covering the mainstream fast charging protocols, adjustable output voltage, automatic detection, intelligent triggering, fast charging without worries

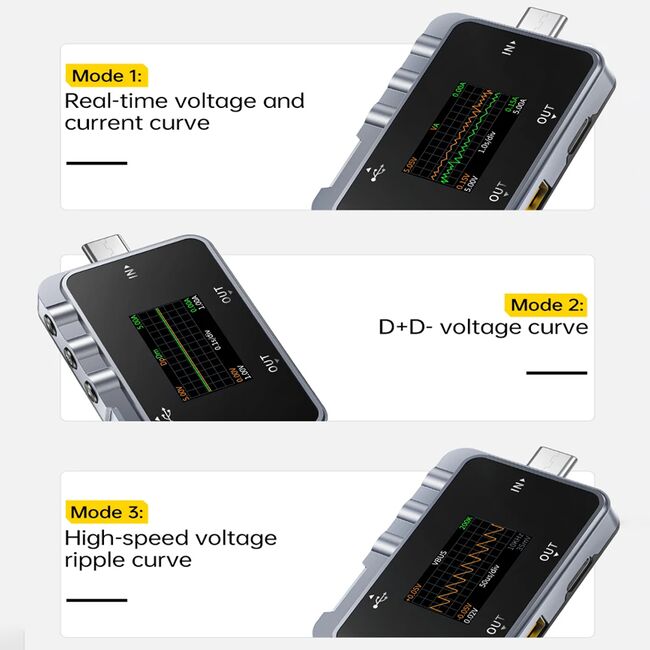

• Diversified curve detection modes: real-time voltage and current curve detection; D+D-voltage curve detection; high-speed voltage and current curve detection
• Cable detection in one machine, cable resistance detection, cable reading, analog testing, all-round protection of your charging safety

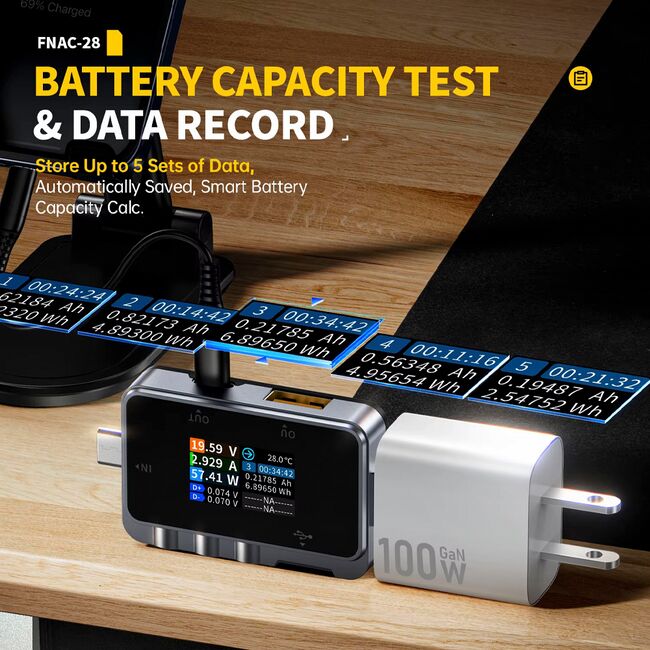

• 5 groups of data records, power outage memory worry-free, restart and continue to test without interruption, built-in battery capacity intelligent calculation, at any time to grasp the power state

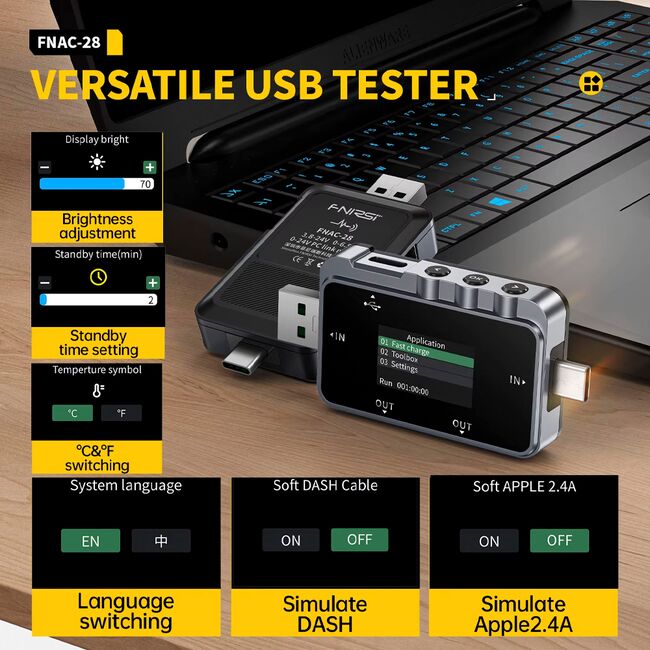

• It fully features: adjustable brightness, custom standby time, temperature symbol switching, language switching, analog DASH, analog Apple 2.4A, and so on.

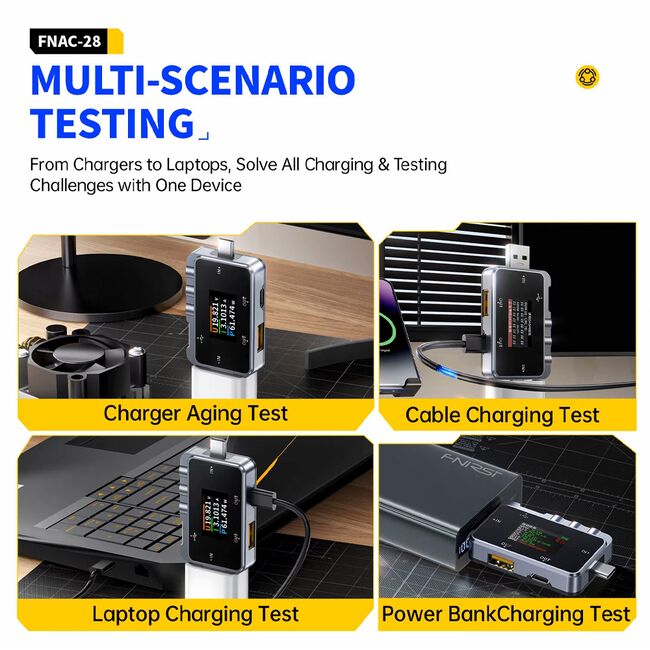

• Comprehensive coverage of chargers, all kinds of data cables, charging treasure, laptop charging test, and interface performance at a glance


Specification:

• Model: FNAC-28
• Screen: 1.06 inch
• Monitor voltage: 4~24V 0.001V ±(0.2%+2)
• Monitor current: 0~6.5A 0.001A ±(0.2‰+2)
• Monitor power: 0~156W 0.001W ±(0.2‰+2)
• Detecting temperature: ℃, 1℃, ±(1.2%+3); °F, 1°F, ±(1.2%+4)
• Response time: 1 second
• Dimensions: 73*36*12mm
• Net Weight: 21g


Package includes:

• 1 x USB Tester
