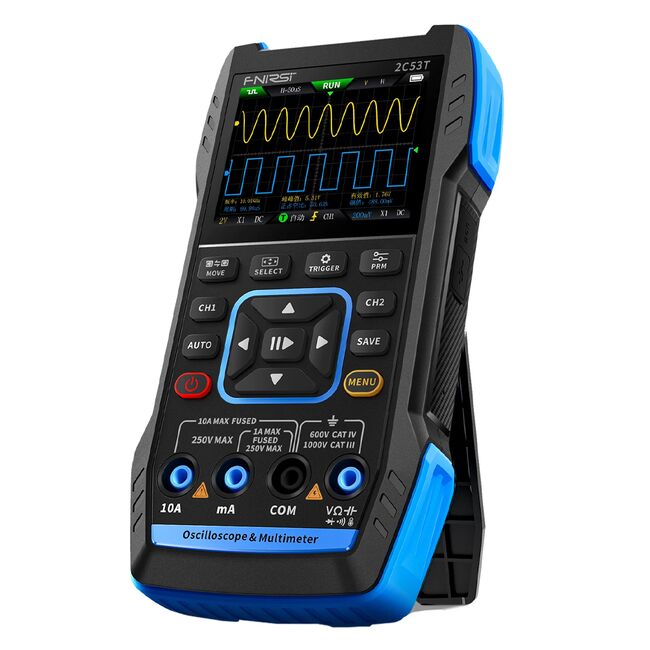

Fnirsi 2C53T Handheld Portable Dual Channel 50M Digital Oscilloscope + Multimeter + Signal Generator

Fnirsi 2C53T Handheld Portable Dual Channel 50M Digital Oscilloscope + Multimeter + Signal Generator

Features:

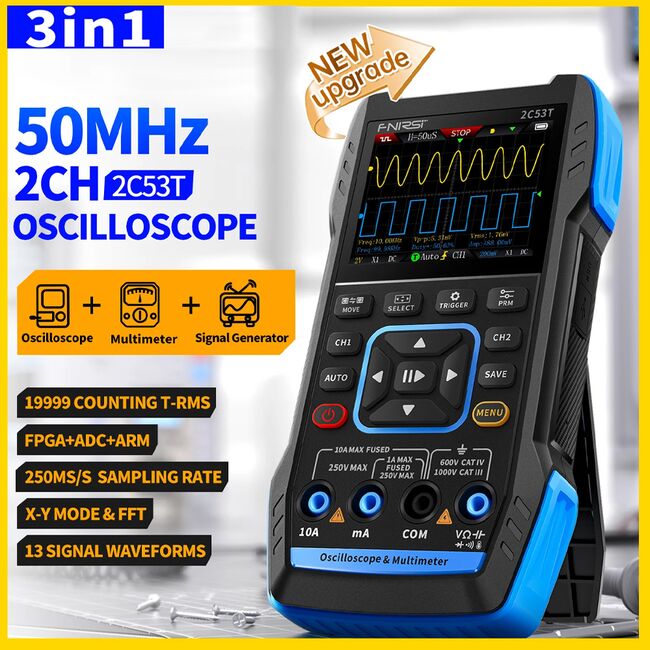

• The 2C53T combines the functionalities of an oscilloscope, a multimeter, and a signal generator

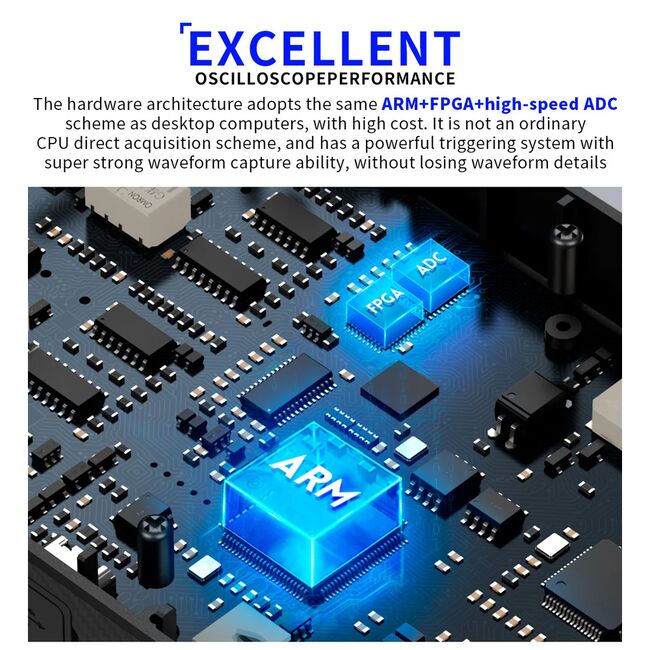

• The oscilloscope uses FPGA + ARM + ADC hardware architecture, featuring a 250MS/s sampling rate, a 50MHz analog bandwidth, and an integrated high-voltage protection module that supports peak voltage measurements up to ±400V

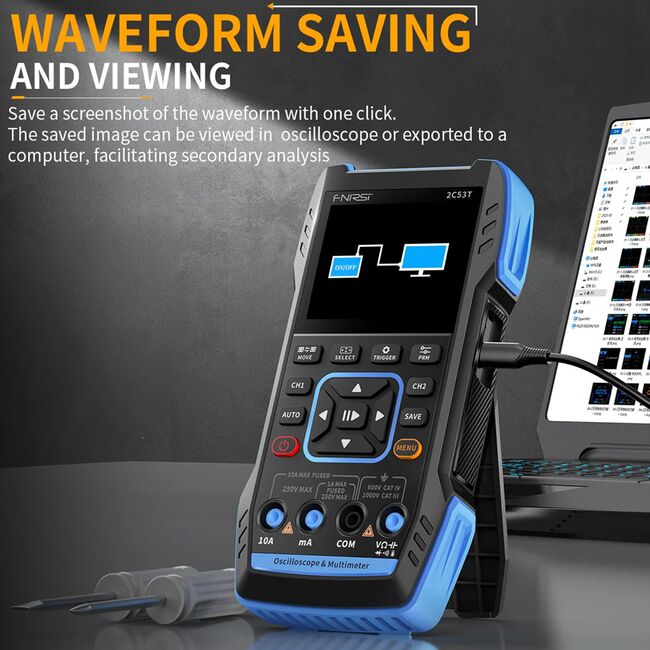

• It also supports waveform screenshot saving and viewing for secondary analysis.

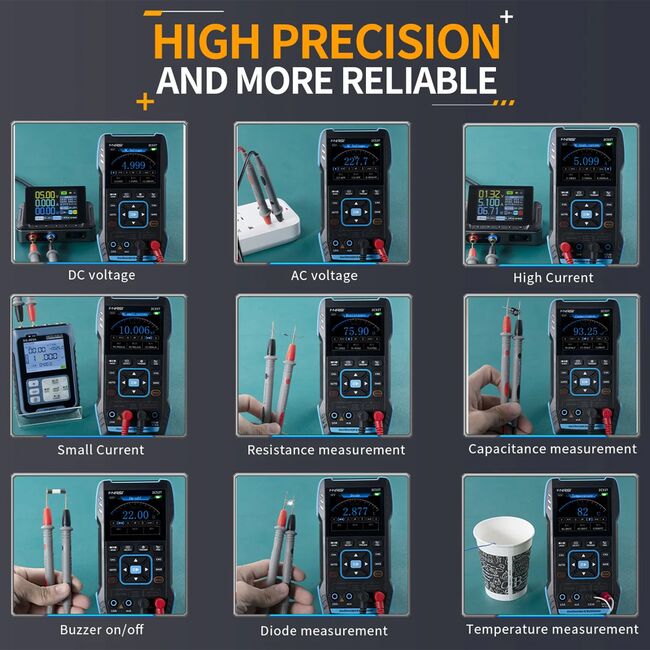

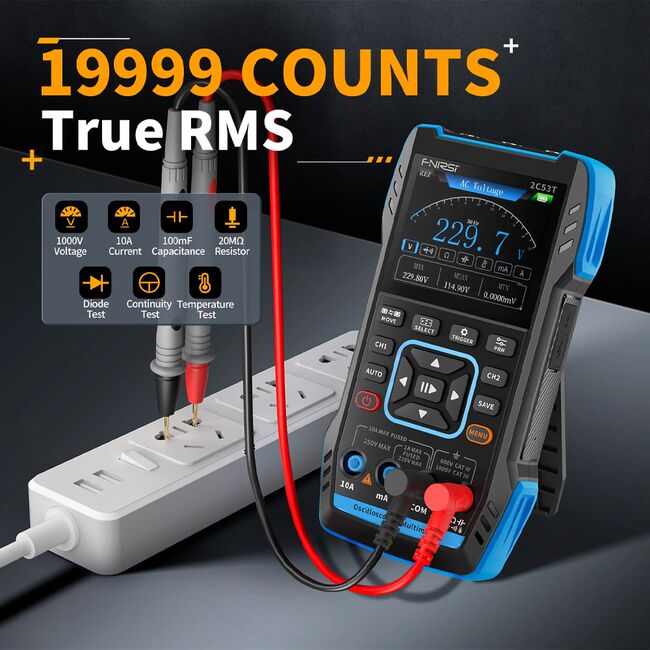

• The multimeter function offers 4.5 digits with 19999 counts true RMS, supporting AC/DC voltage and current measurements, as well as capacitance, resistance, diode, and continuity measurements
• The built-in DDS function signal generator can output 13 types of function signals, with a maximum output frequency of 50KHz and a step size of 1Hz
• The output frequency, amplitude, and duty cycle are adjustabl
•  It features a 2.8-inch 320*240 resolution high-definition LCD screen and a built-in 3000mAh rechargeable lithium battery with a standby time of up to 6 hours
• Its compact size provides users with more powerful practical functions and excellent portability

Specifications:

• Brand: FNIRSI
• Model: 2C53T
• Display Screen: 2.8 inch HD color screen
• Resolution ratio: 320*240
• Charging Specifications: Type-C (5V/1A)
• Battery: 3000mAh lithium battery
• Support Functions: Oscilloscope, Signal generator, Multimeter (view functional parameters for details)
• Standby Time: 6h (laboratory theoretical maximum)
• Language: Chinese and English
• Product Volume: 167*89*35mm
• Weight: 300g

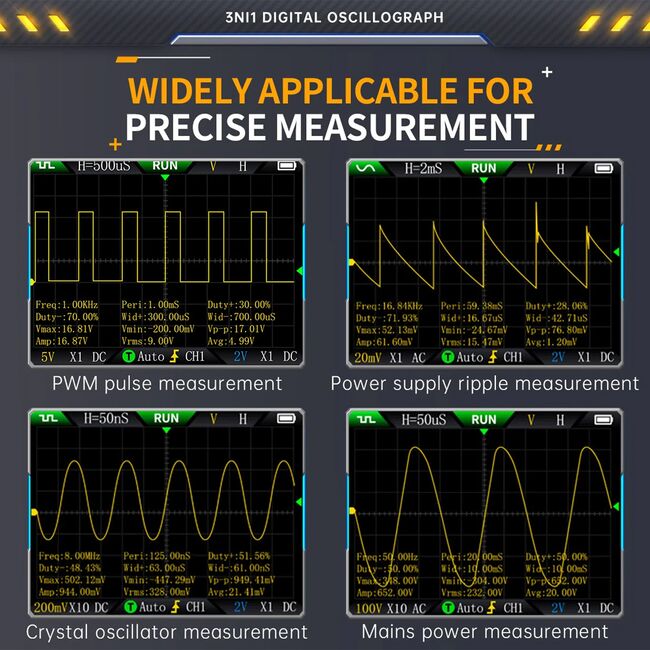

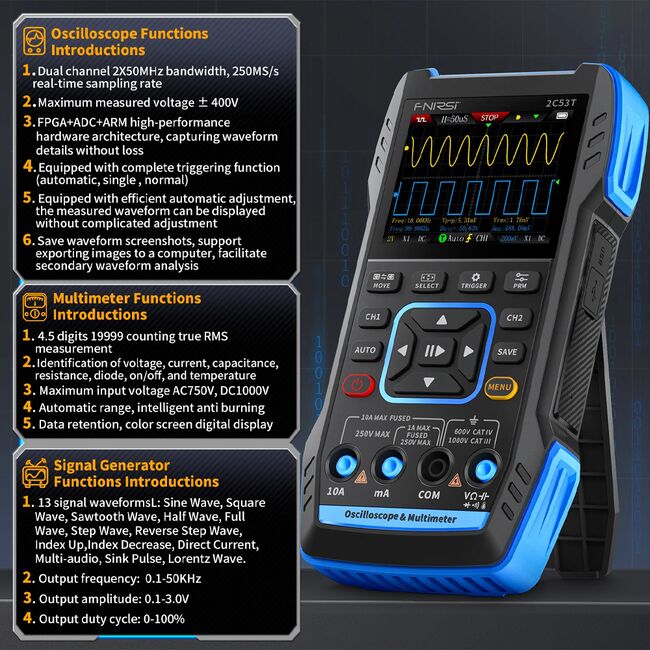

Oscilloscope:

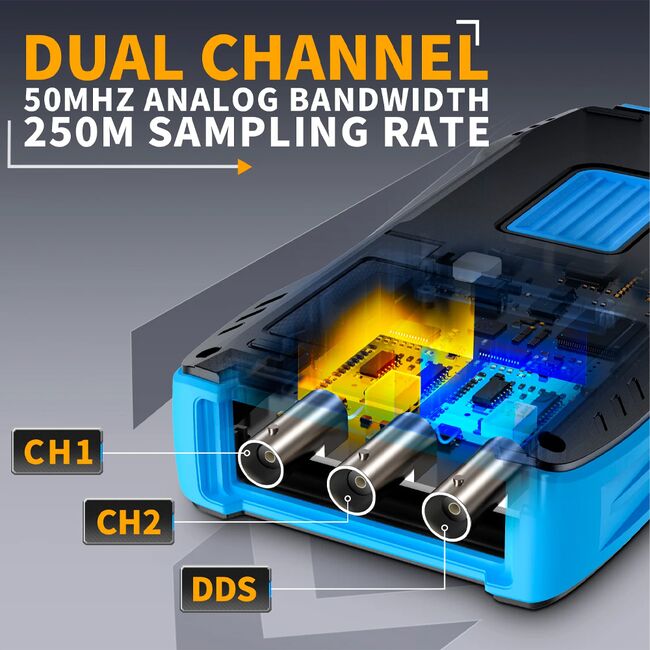

• Channel: Dual channel
• Sample Rate: 250MS/s
• Analog Bandwidth: 50M(dual channel independent 50M)
• Storage Depth: 1Kpts
• Impedance: 1MΩ
• Time Base Range: 10ns-20s
• Vertical Sensitivity: 10mV/div-10V/div (x1)
• Maximum Measured Voltage: ±400V
• Trigger Mode: AUTO/Normal/Single
• Trigger Type: Rising edge, Falling edge

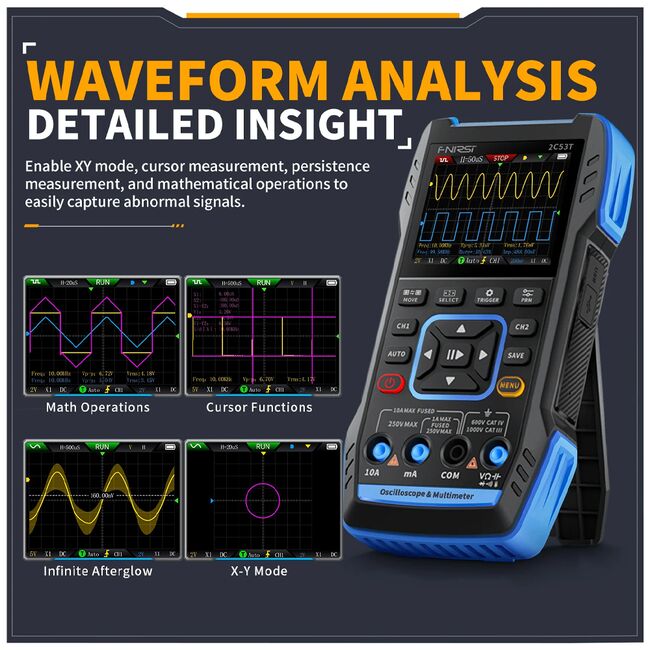

• Display Mode: Y-T/Rolling/X-Y
• Coupling Method: AC/DC
• Persistence: OFF, 500ms, 1s, ∞
• Math: 8 Basic Operations + FFT
• Waveform Screenshot Save: Supported
• Export Waveform Image: Supported
• Cursor Measurement: Supported
• Infinite Afterglow: Supported

Signal Generator:

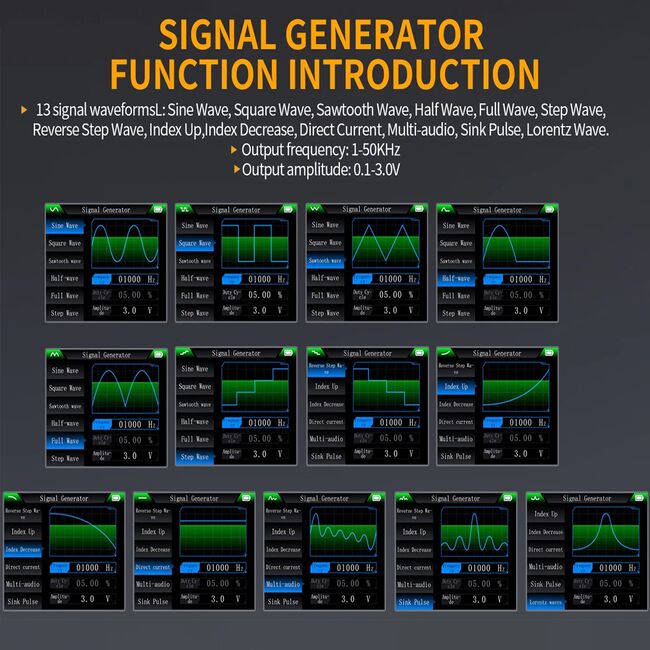

• 13 Signal Waveforms: Output waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave
• Output Frequency: 0~50KHZ
• Output Amplitude: 0~3V
• Output Duty Cycle: 0~100%

Multimeter:

• DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V
• AC Voltage: 1.9999V / 19.999V / 199.99V / 750.0V
• DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
• AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
• Resistance: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ/1.9999KΩ / 199.99Ω
• CapacitanceL 999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF
• Temperature: (-55~1300℃) / (-67~2372℉)
• Diode: Yes
• Continuity Test: Yes

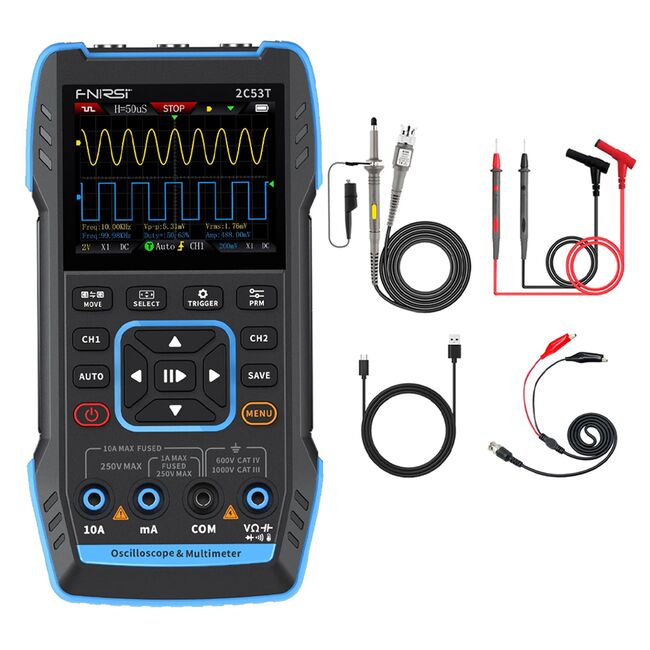

Package List:

• 1 x 2C53T
• 1 x Test Line
• 1 x Crocodile Clip Wire
• 1 x Oscilloscope Probes
