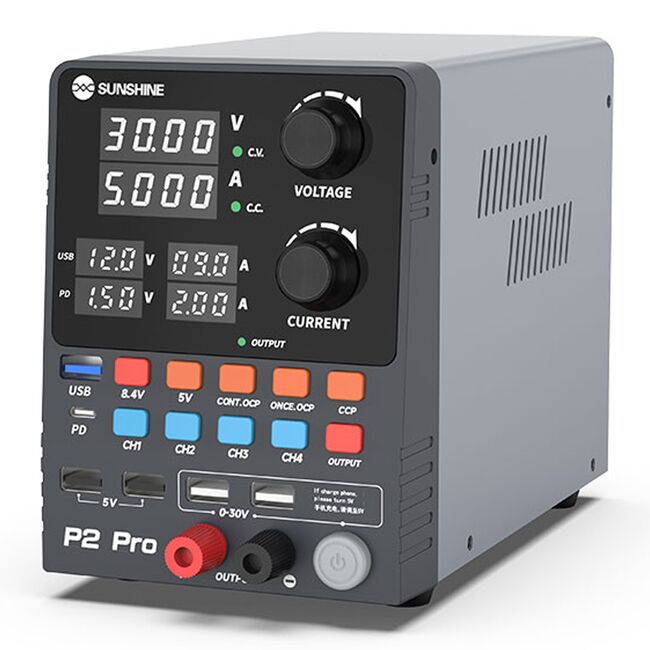

Sunshine P2 Pro 330W 4-Segment Storage Channel Toroidal Transformer Adjustable DC Power Supply

Write a review
$73.99
Ask a question
Price in points: 74 points
In stock
+
Our quantity discounts:
Quantity 5+ 10+ 20+
Price $72.51 $70.29 $65.11

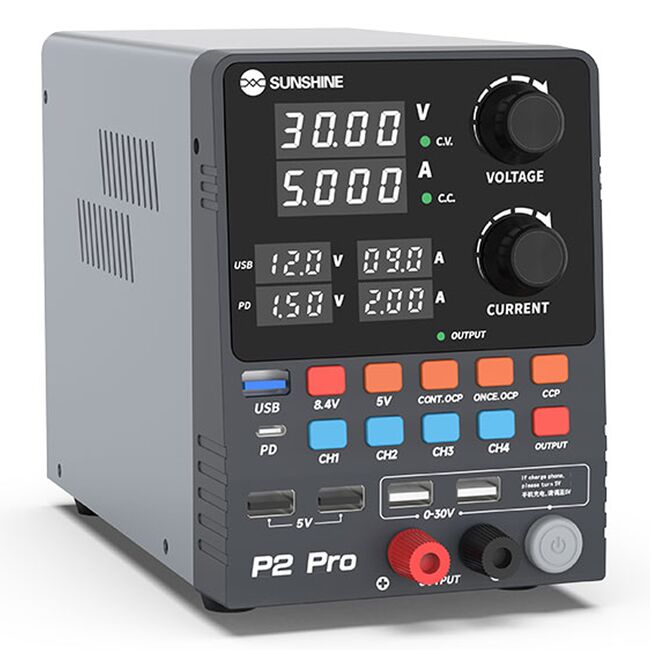

Sunshine P2 Pro 330W 4-Segment Storage Channel Toroidal Transformer Adjustable DC Power Supply

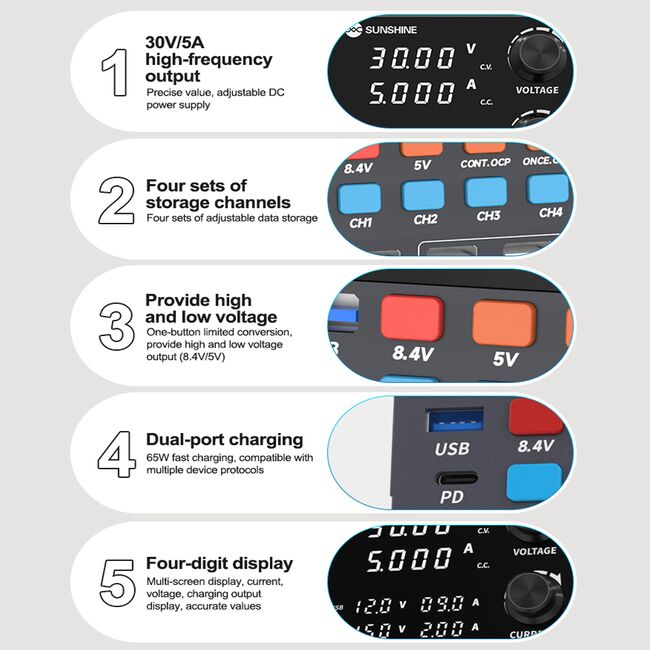

Features:

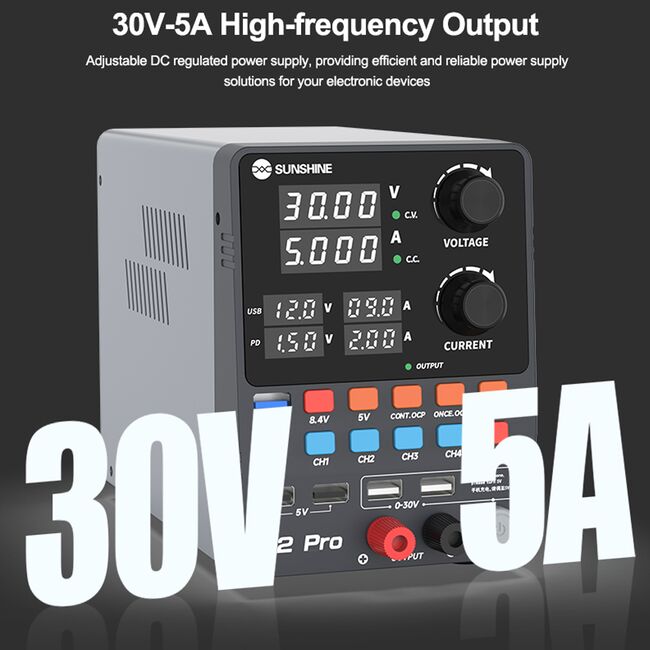

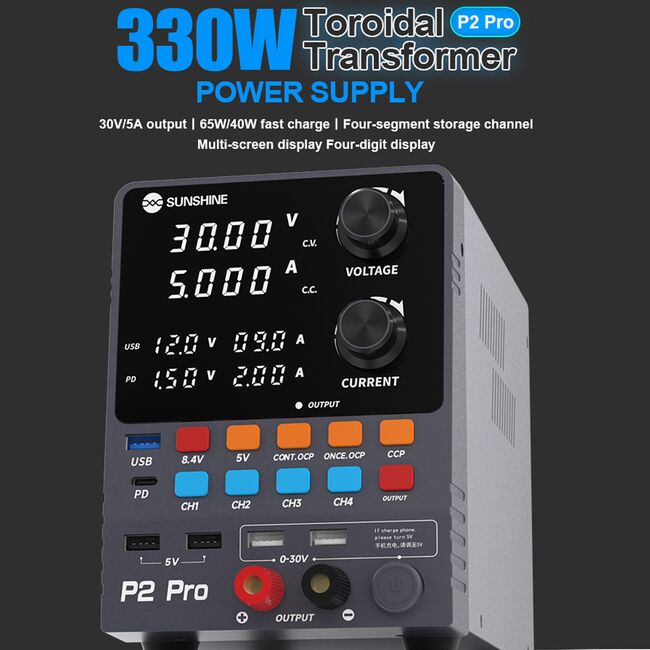

  • P2 Pro Toroidal Transformer adjustable DC power supply, 30V/5A high-frequency output, precise value, Four sets of storage channels

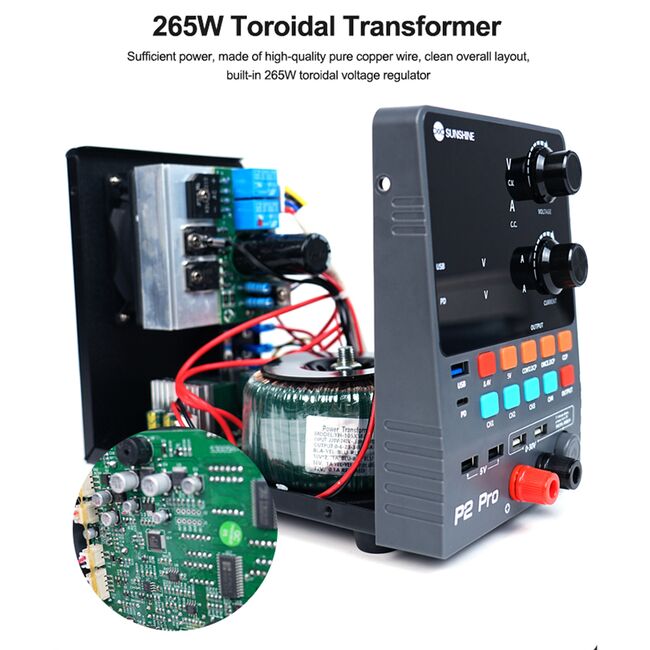

  • Sufficient power, made of high-quality pure copper wire, clean overall layout, built-in 265W toroidal voltage regulator

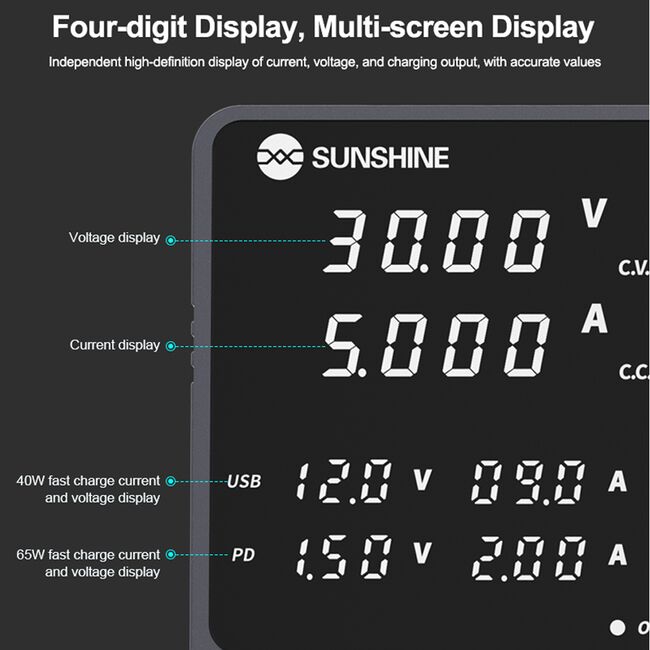

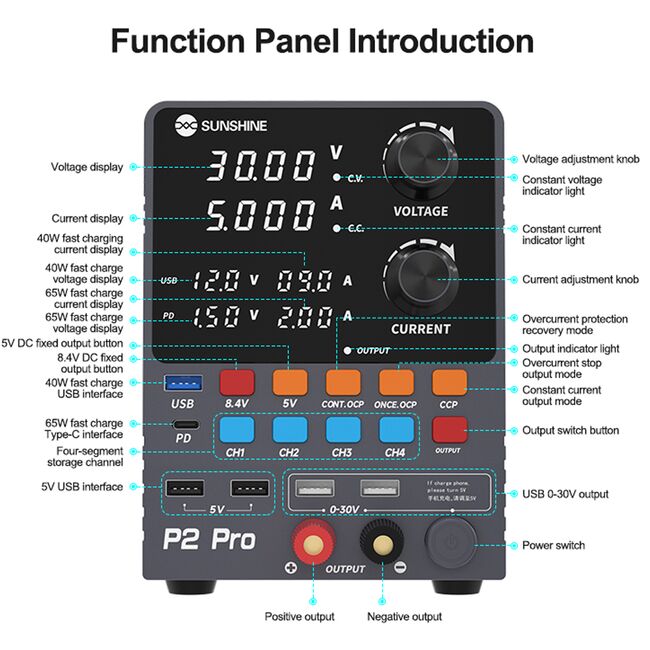

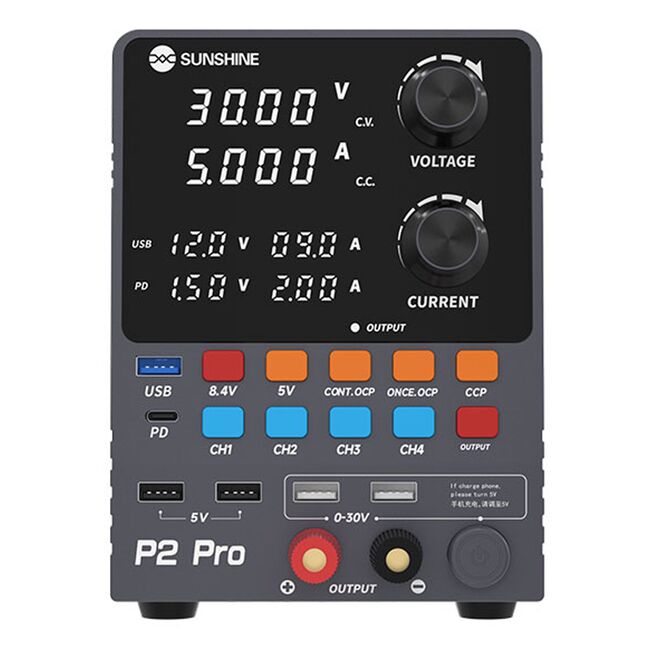

  • Four-digit display, multi-screen display, independent high-definition display of current, voltage, and charging output, with accurate values

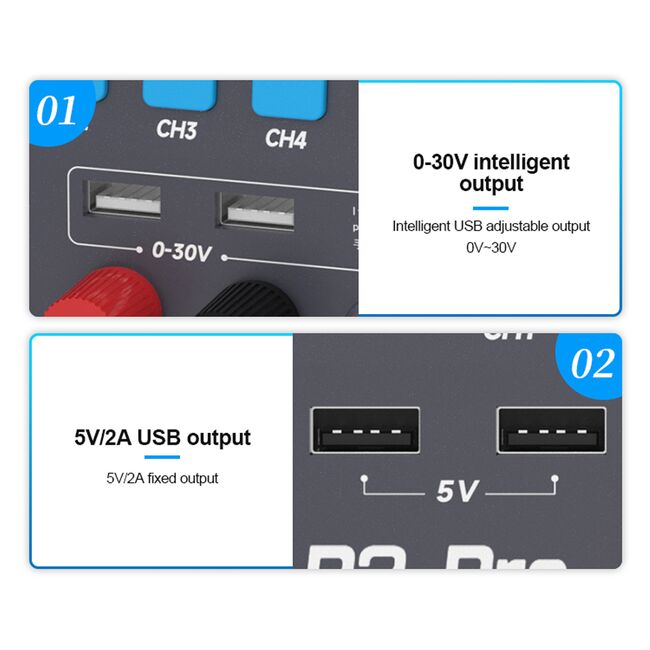

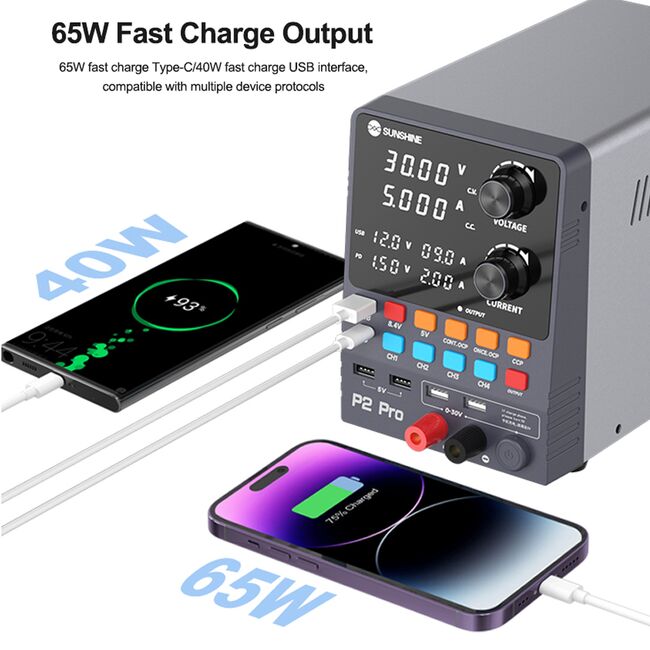

  • 65W fast charge Type-C/40W fast charge USB interface, compatible with multiple device protocols

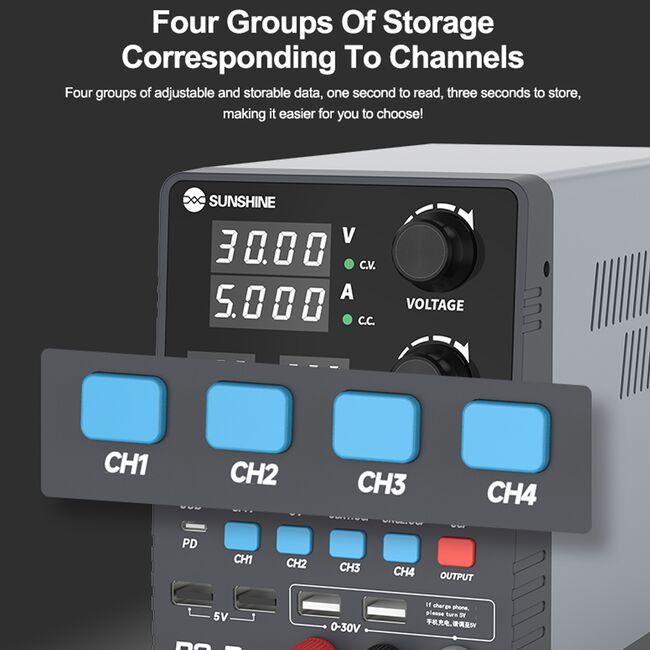

  • Four groups of storage corresponding to channels, four groups of adjustable and storable data, one second to read, and three seconds to store, making it easier for you to choose

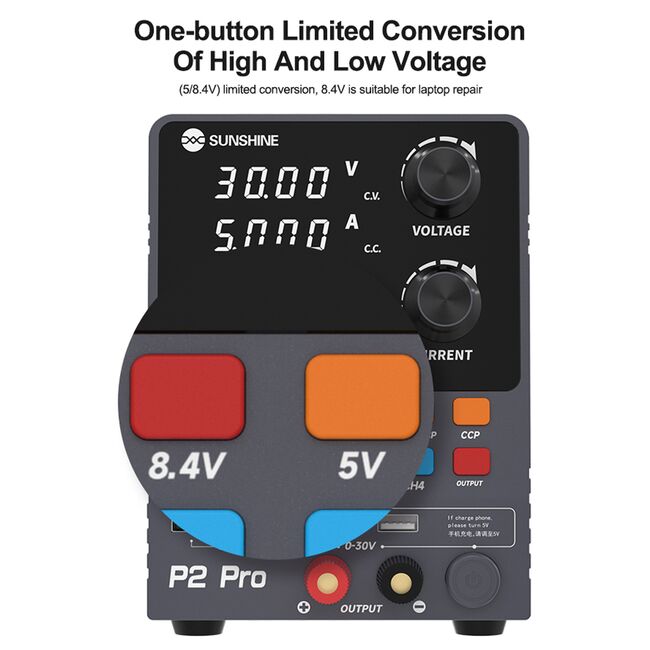

  • One-button limited conversion of high and low voltage, (5/8.4V) limited conversion, 8.4V is suitable for laptop repair

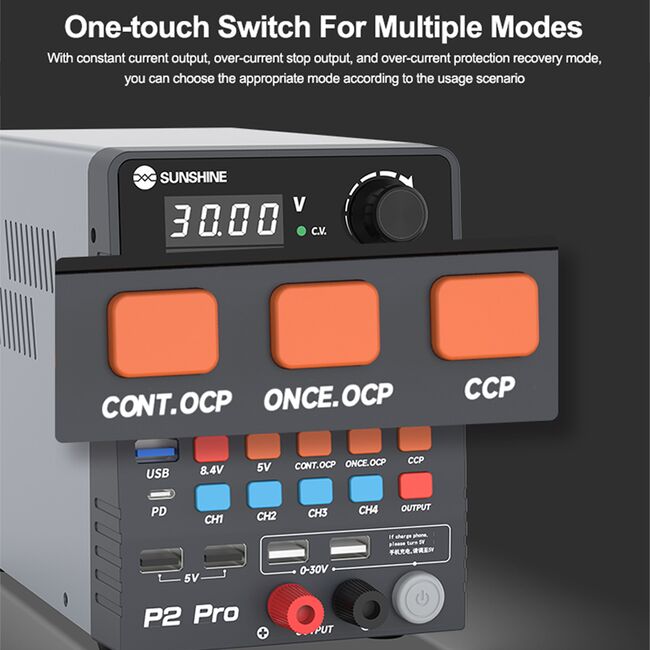

  • One-touch switch for multiple modes, with constant current output, over-current stop output, and over-current protection recovery mode, you can choose the appropriate mode according to the usage scenario

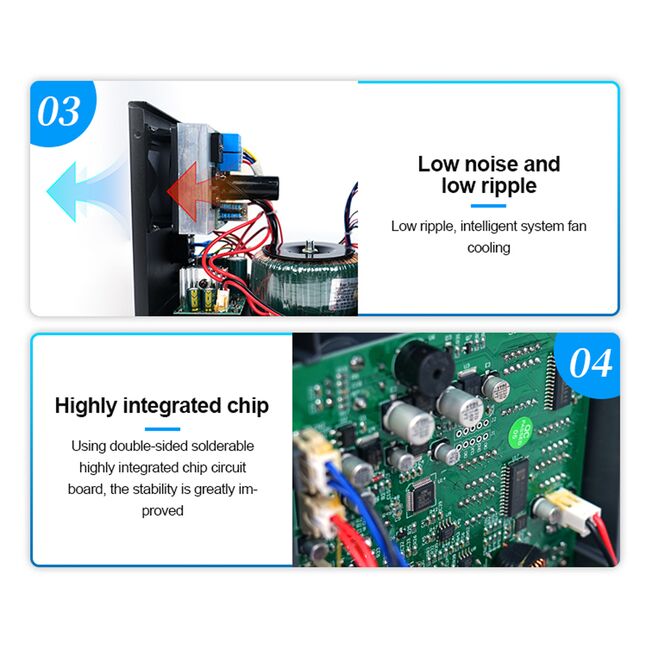

  • Low noise and low ripple, low ripple, intelligent system fan cooling
  • Highly integrated chip, using a double-sided solderable highly integrated chip circuit board, the stability is greatly improved


Specification:

  • Brand: Sunshine
  • Product name: Intelligent regulated DC power supply
  • Model: P2 Pro
  • Net weight: 3.45kg

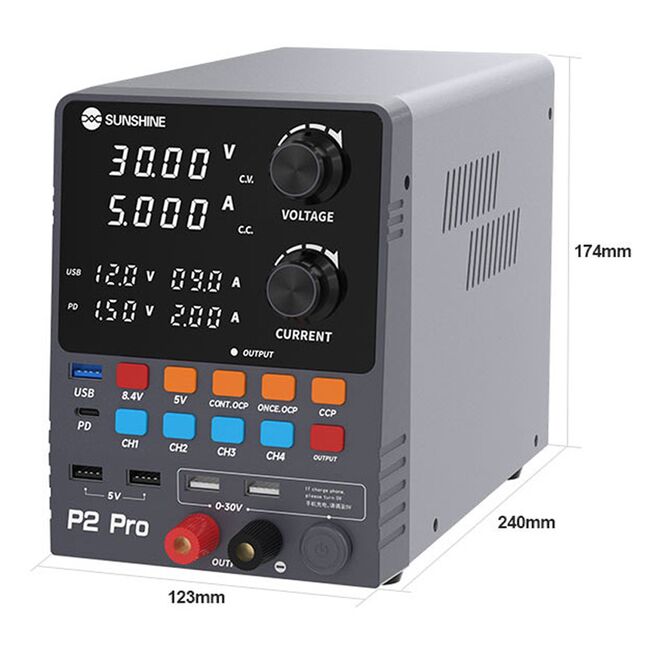

  • Product size: 240*123*174mm
  • Packing size: 315*225*265mm
  • Rated voltage range: 110V-127V, 60Hz/220V-240V~, 50Hz
  • Rated power: 330W
  • Operating temperature: -10℃~40℃/14℉-104℉
  • Operating relative humidity: <90%
  • Output voltage: DC 0~30V
  • Output power: 150W
  • Voltage accuracy: <0.1%+0.03V
  • Current accuracy:<0.3%+3mA
  • Load stability: <0.6%+10mA
  • Ripple: Vrms<0.5%(10Hz-1MHz)
  • Output current: 0~5A


Package includes:

  • 1 x Power Supply
  • 1 x Test Cable
  • 1 x Power Cable
