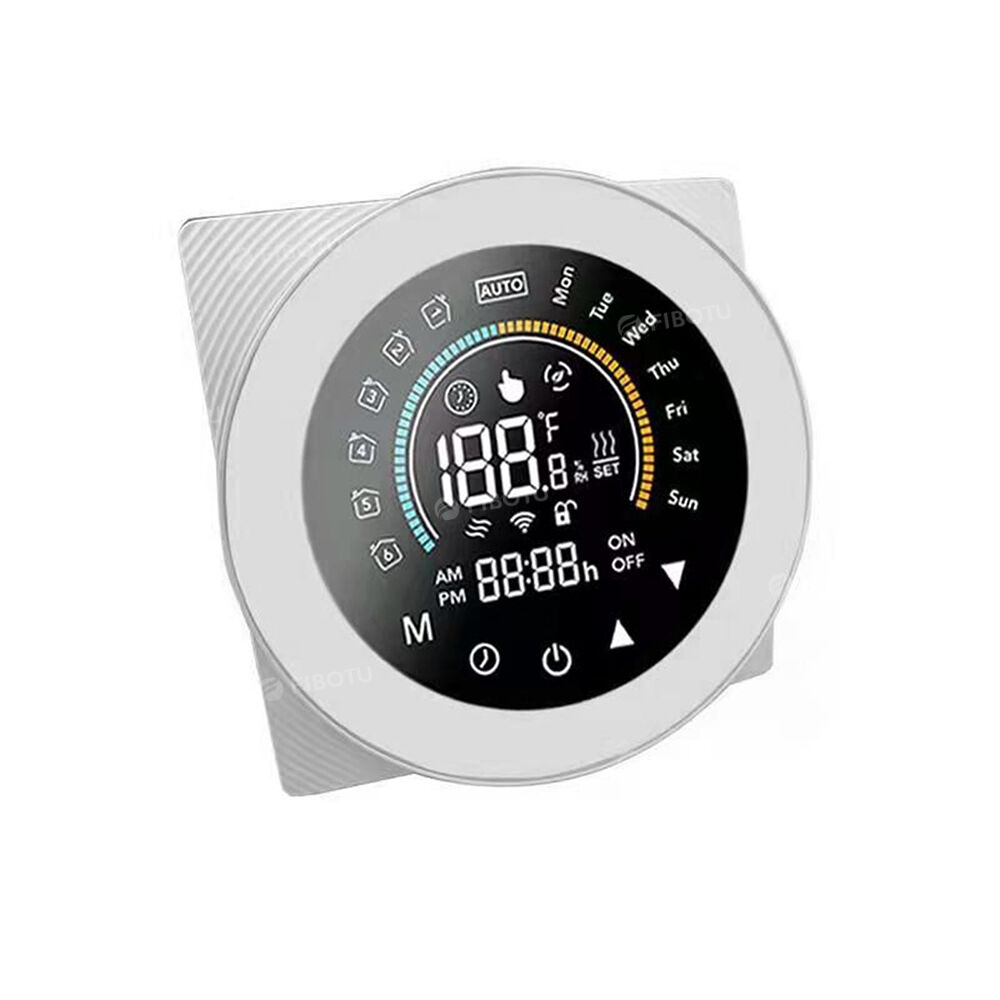

​Smart Electric Heating Thermostat eWelink WiFi - White

Smart Electric Heating Thermostat eWelink WiFi

Overview:
The thermostat provides even and comfortable temperature control in every room of your home. We have combined technology, craftsmanship and the highest quality materials to give you a safe, reliable product with a sleek, contemporary design. The intelligent thermostat is designed to control electric underfloor heating, water heating or water/gas boiler systems. These units are designed for heating control in commercial, industrial, civil and domestic properties.

Features:

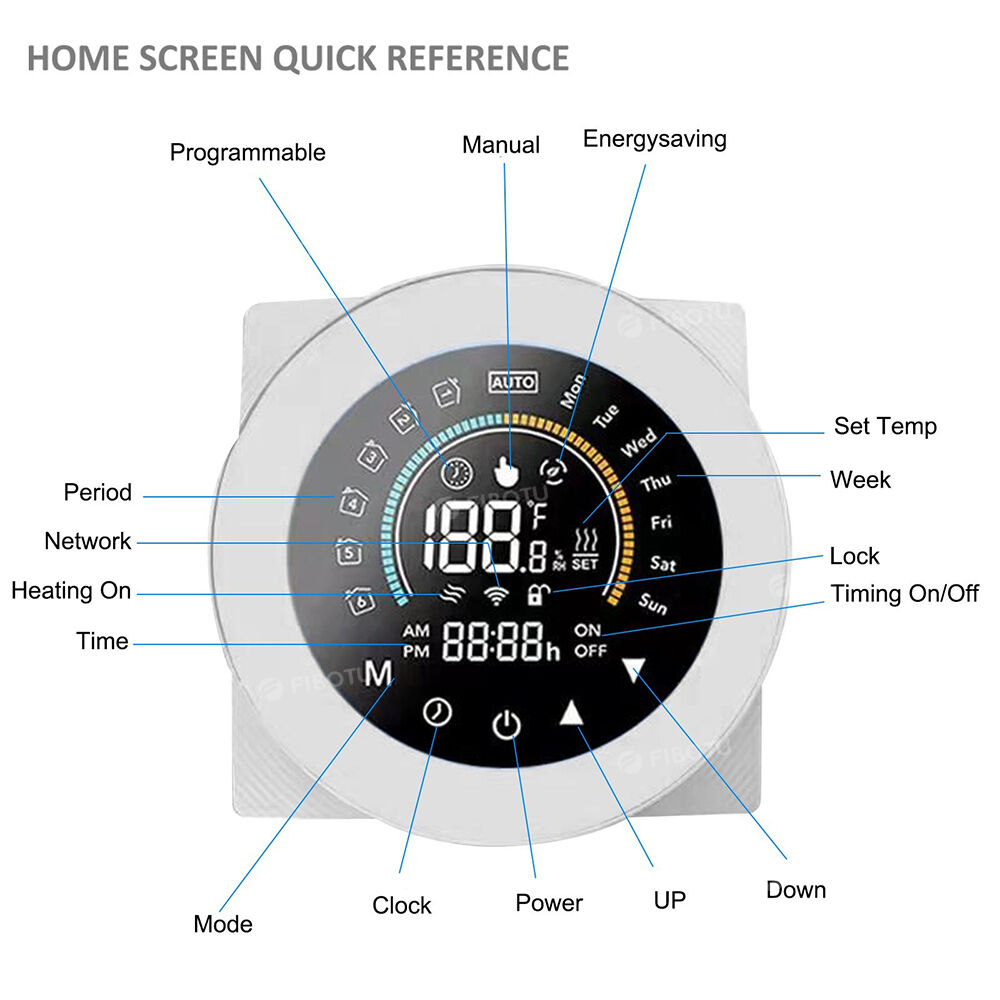

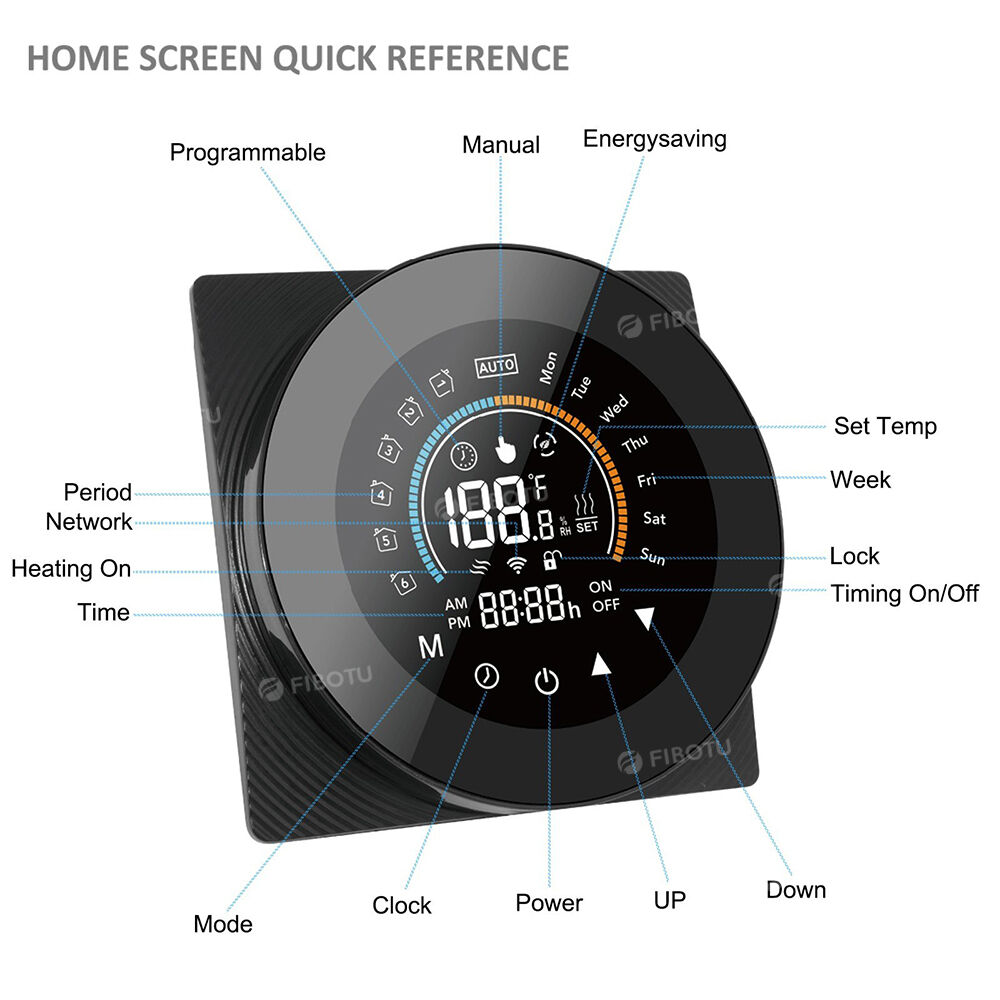

• Large backlit display is easy to read even in the dark and touch buttons make operation simple.
• 0.5℃ accuracy keeps the temperature within the level you set.
• 5+2 six programmable time periods maximise comfort and economy.
• Supports voice control, compatible with Google Assistant & Amazon Alexa/Xiaodu/Tencent Xiaowei/DingDong/Tmall Genie.

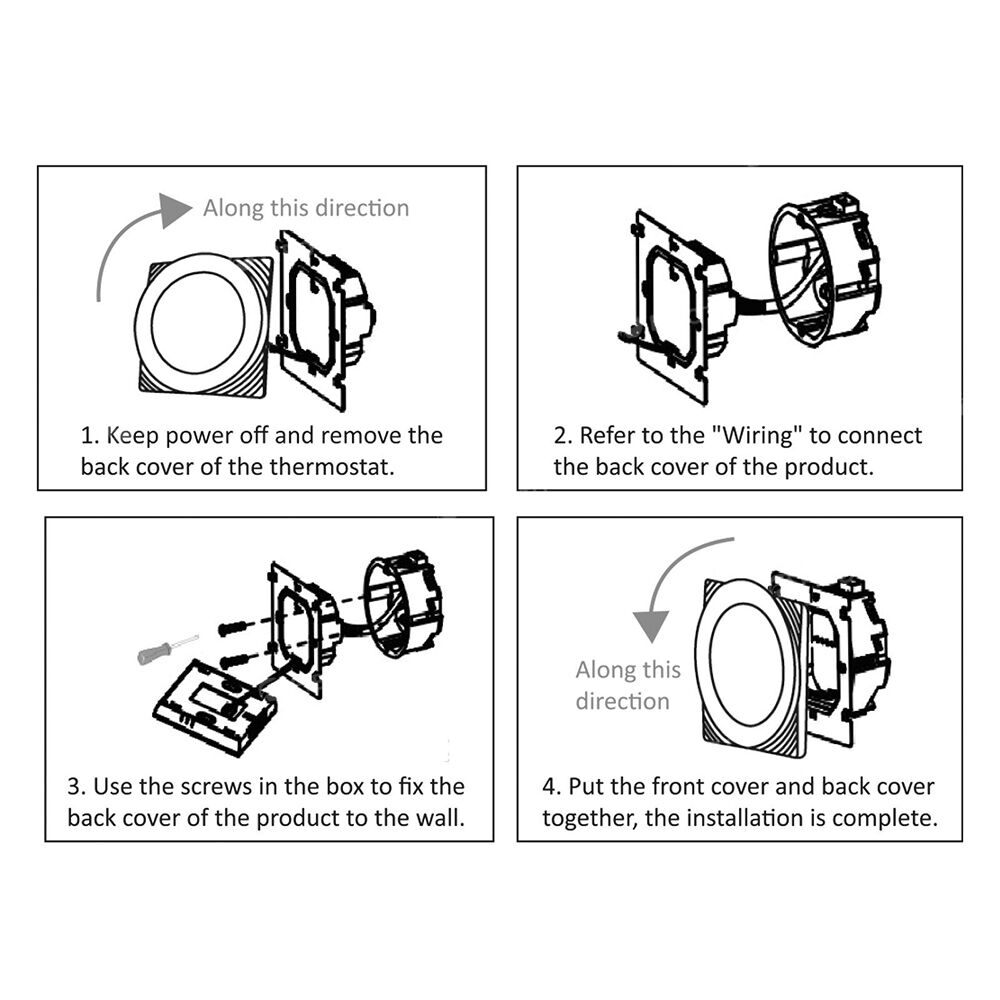

• Suitable for installation in a standard 86mm or European 60mm junction box (box NOT included).
• High efficiency and energy saving thermostat to help reduce home energy costs.
• All setting languages synchronise your time zone, address and language.

Please note

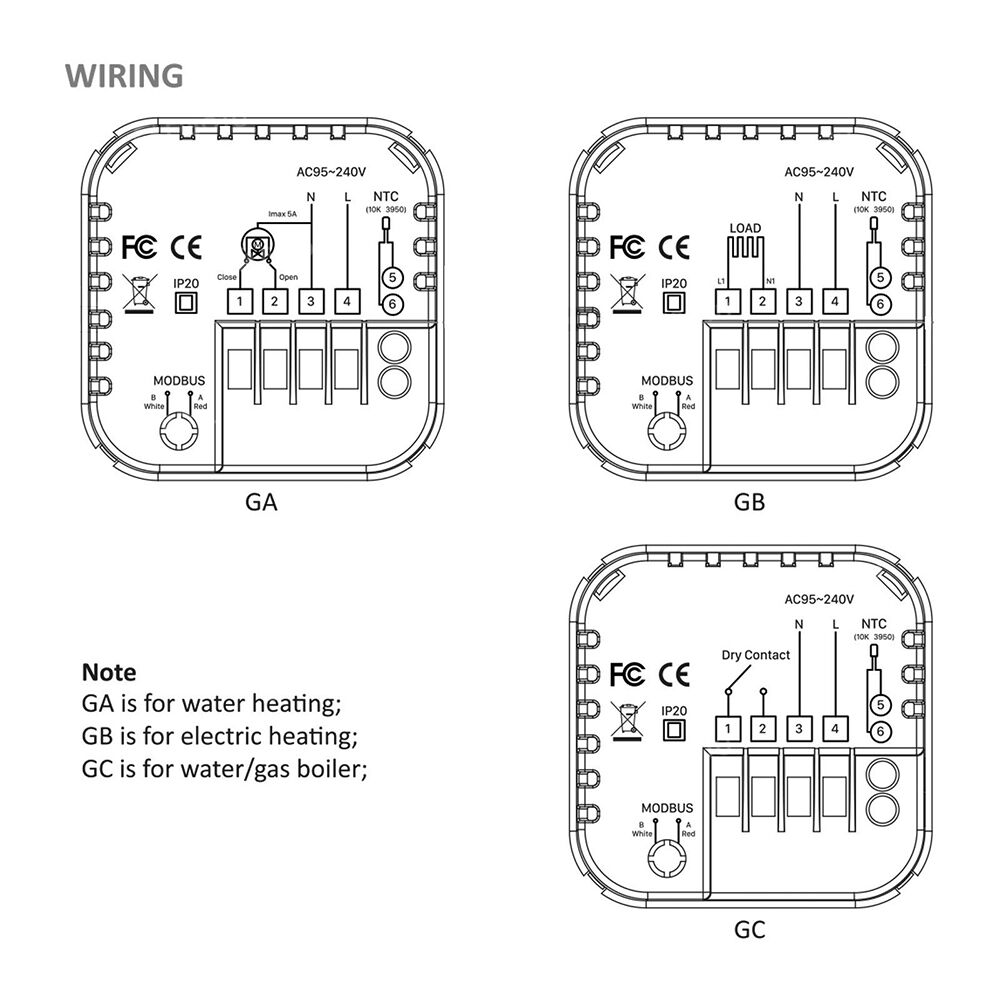

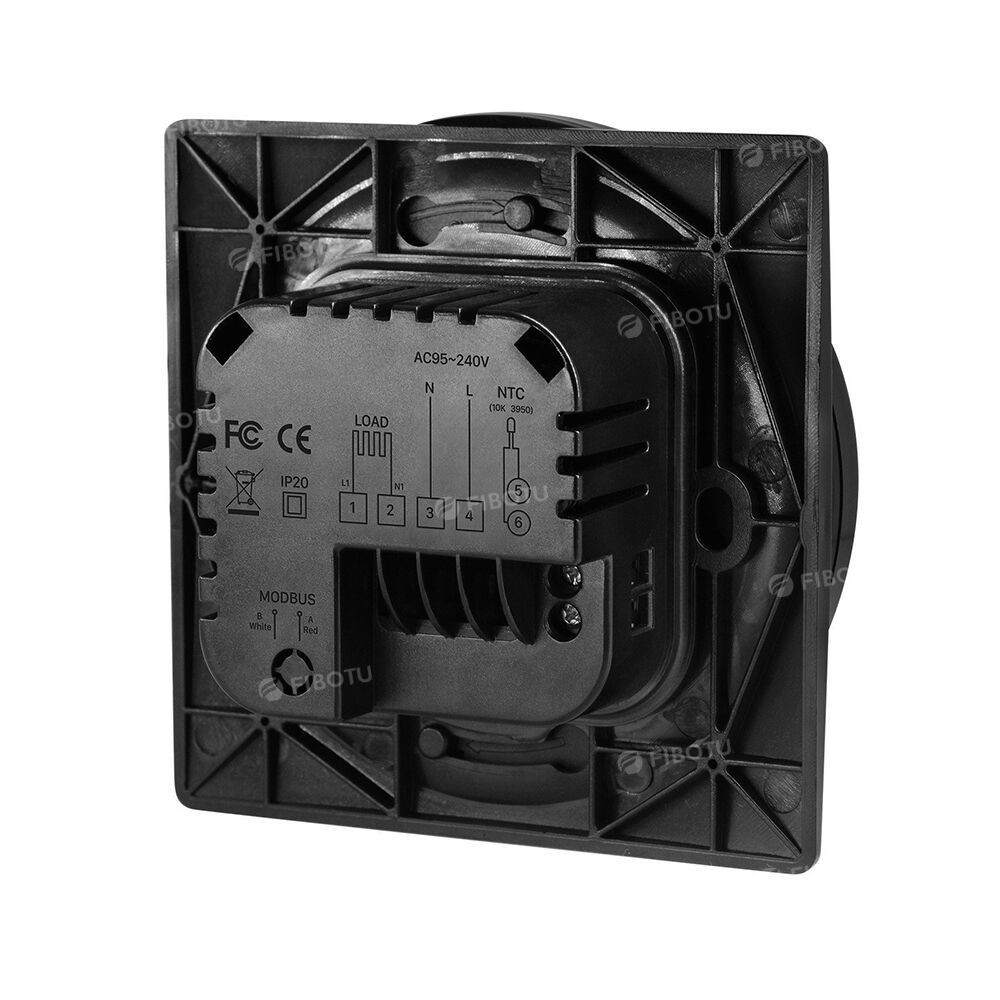

• 1. Model: HC-020-EWL-GA, HC-020-EWL-GB, HC-020-EWL-GC, GA is for water heating, GB is for electric heating, GC is for water/gas boiler.
• 2. Please read the instruction manual carefully before installing and operating the thermostat.
• 3. APP prompts E2, which means an external sensor is required. Normal use will not be affected if the sensor is not installed, and the sensing data will be more accurate if it is installed.

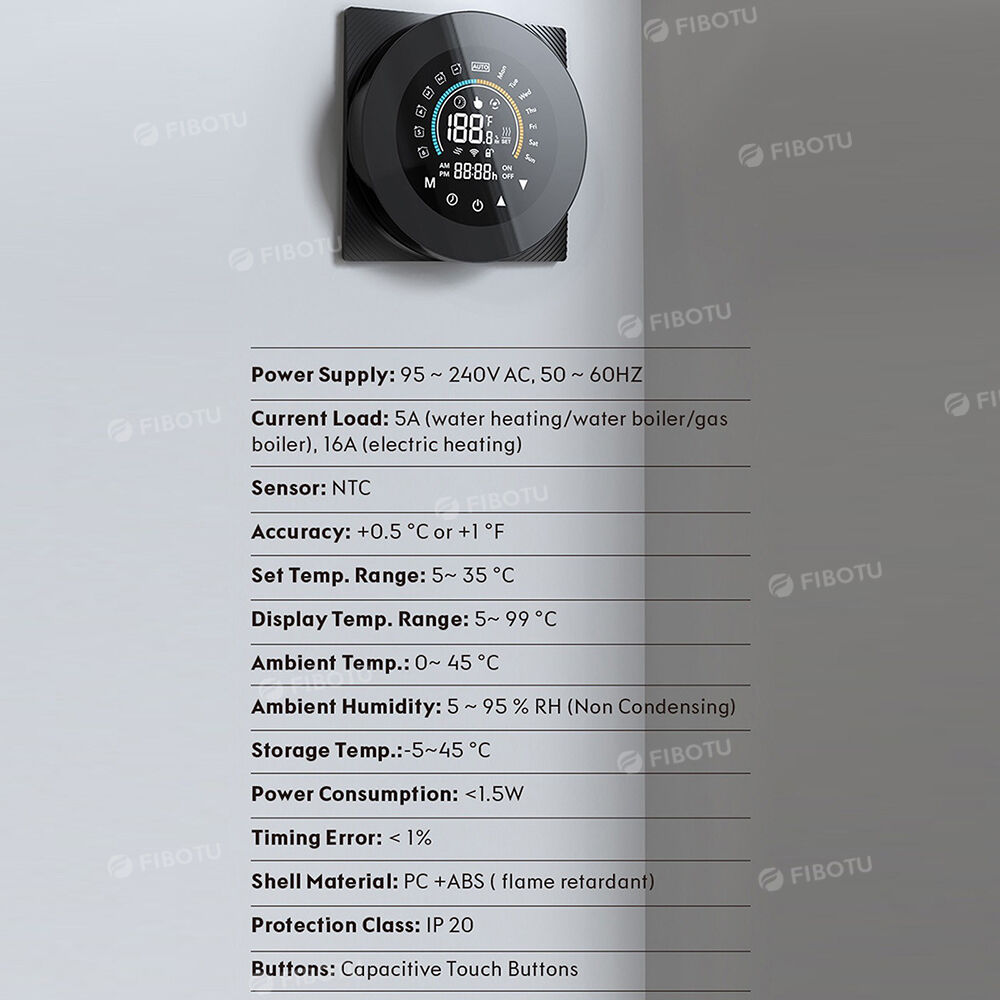

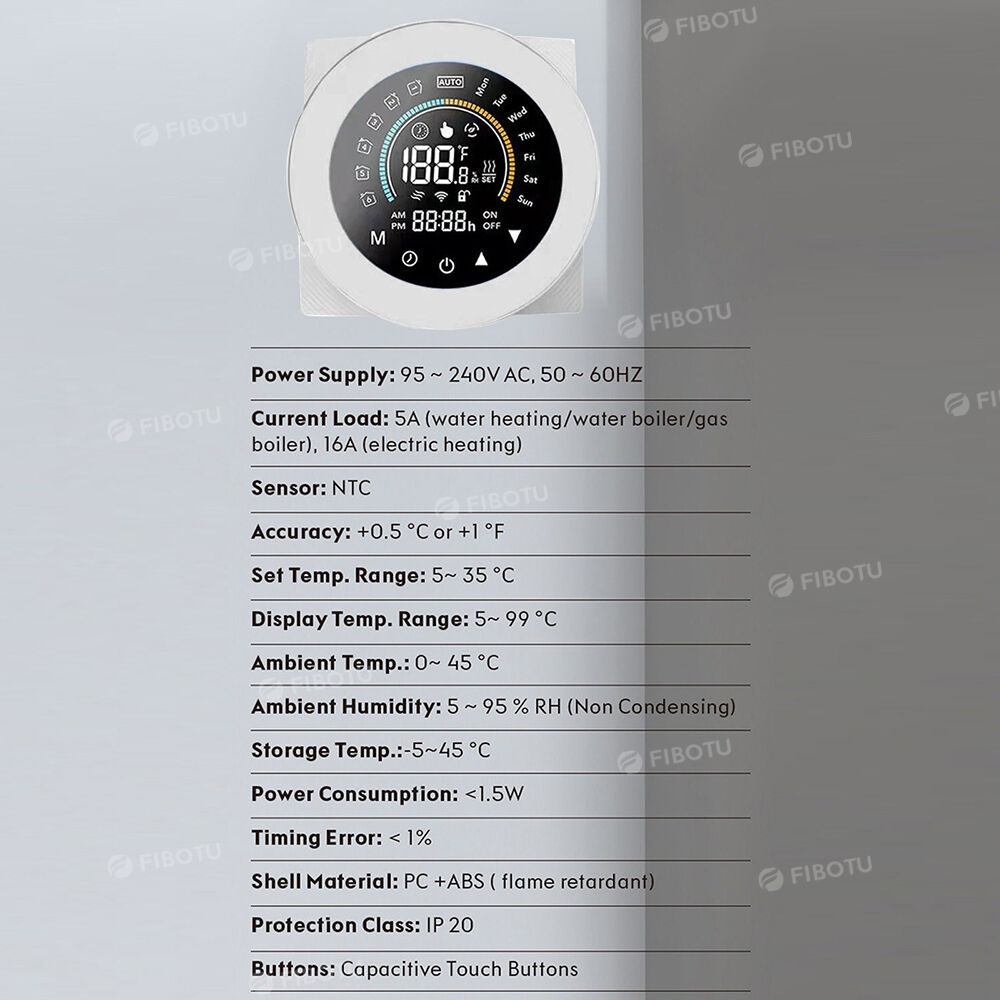

Specifications:

• Model: HC-020-EWL-GA, HC-020-EWL-GB, HC-020-EWL-GC (Optional)
• Type: Water heating/electric heating/boiler thermostat (optional)

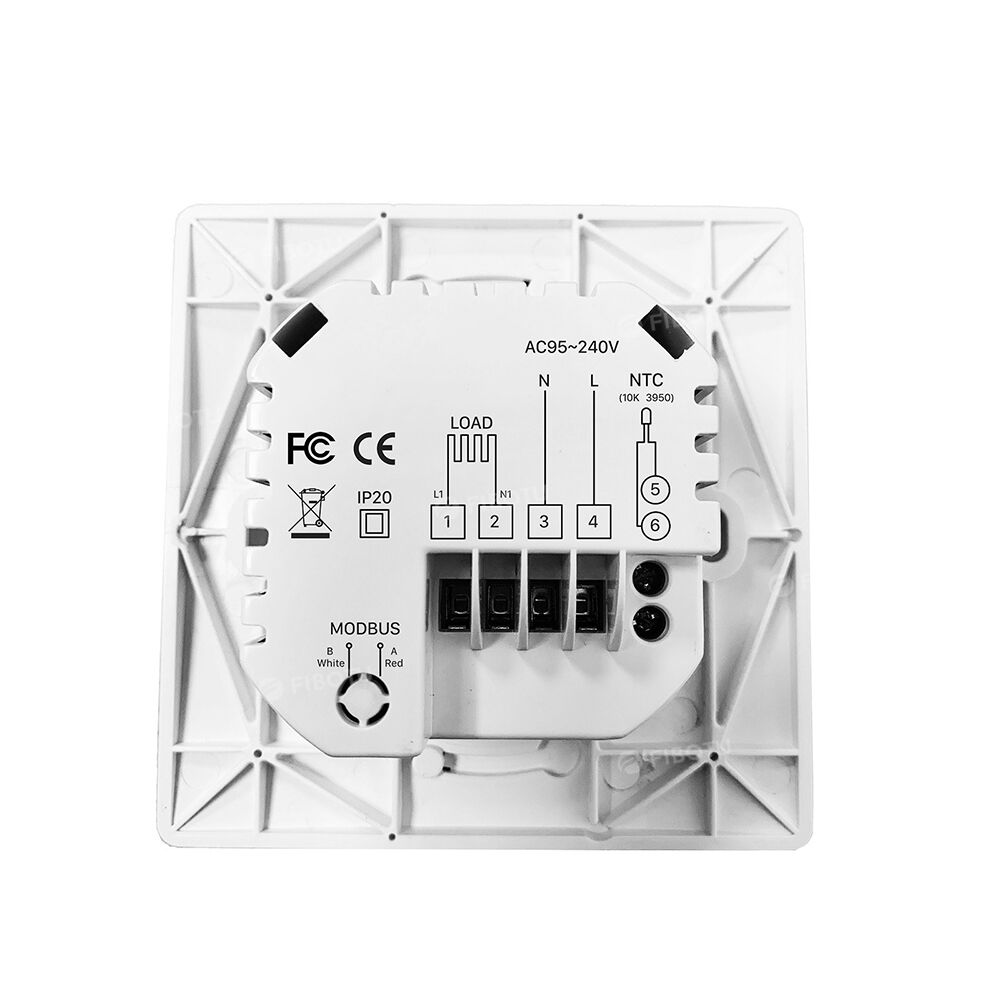

• Power supply: 95-240V AC, 50/60Hz
• Current load: 5A (water heater, water/gas boiler); 16A (electric heater)
• Sensor: NTC
• Display: LCD with backlight
• Buttons: Capacitive touch buttons
• Accuracy: ±0.5℃ or ±1℉
• Set temp. Range: 5~35℃
• Display Temp. Range: 5~99℃
• Ambient temp: 0~45 ℃
• Ambient humidity: 5~95% RH (non-condensing)
• Storage temperature: -5~45 ℃
• Power Consumption: <1.5W
• Timing error: <1%
• Protection Class: IP20
• Housing material: PC+ABS (flame retardant)

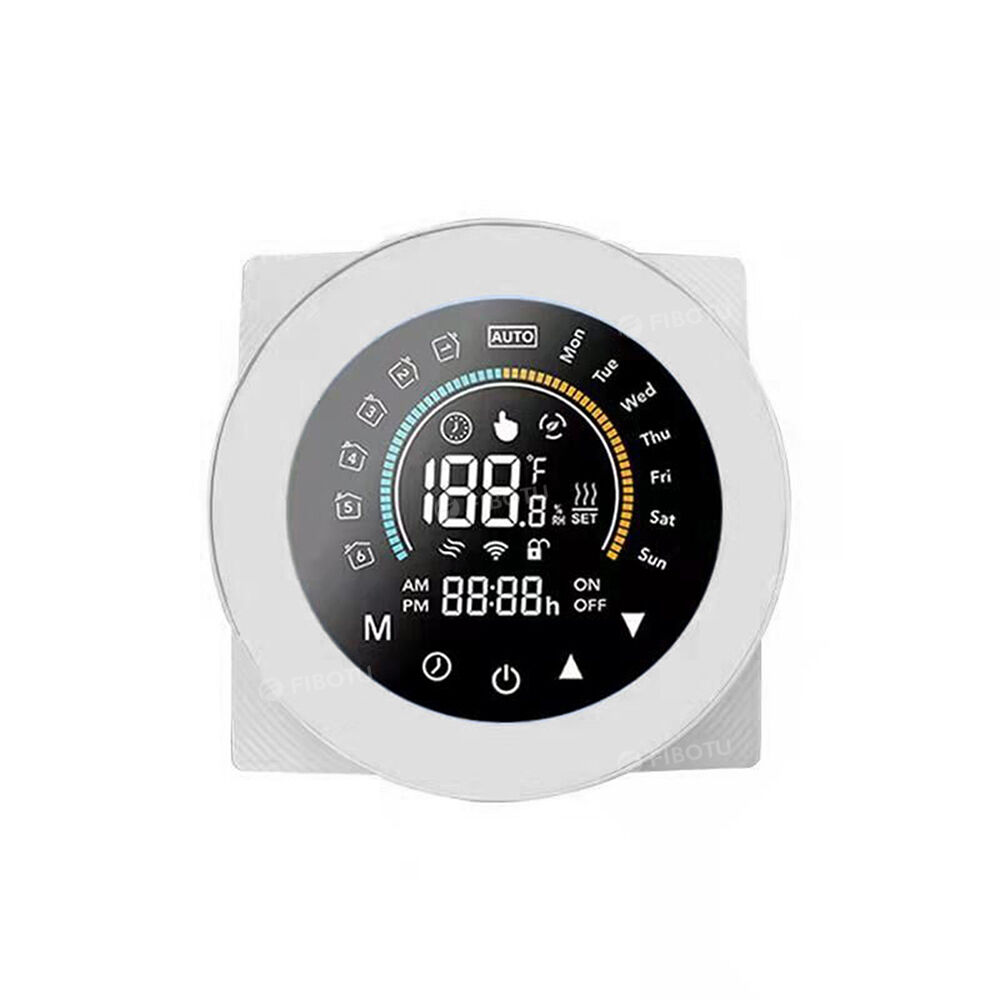

• Colour: Black, White (optional)

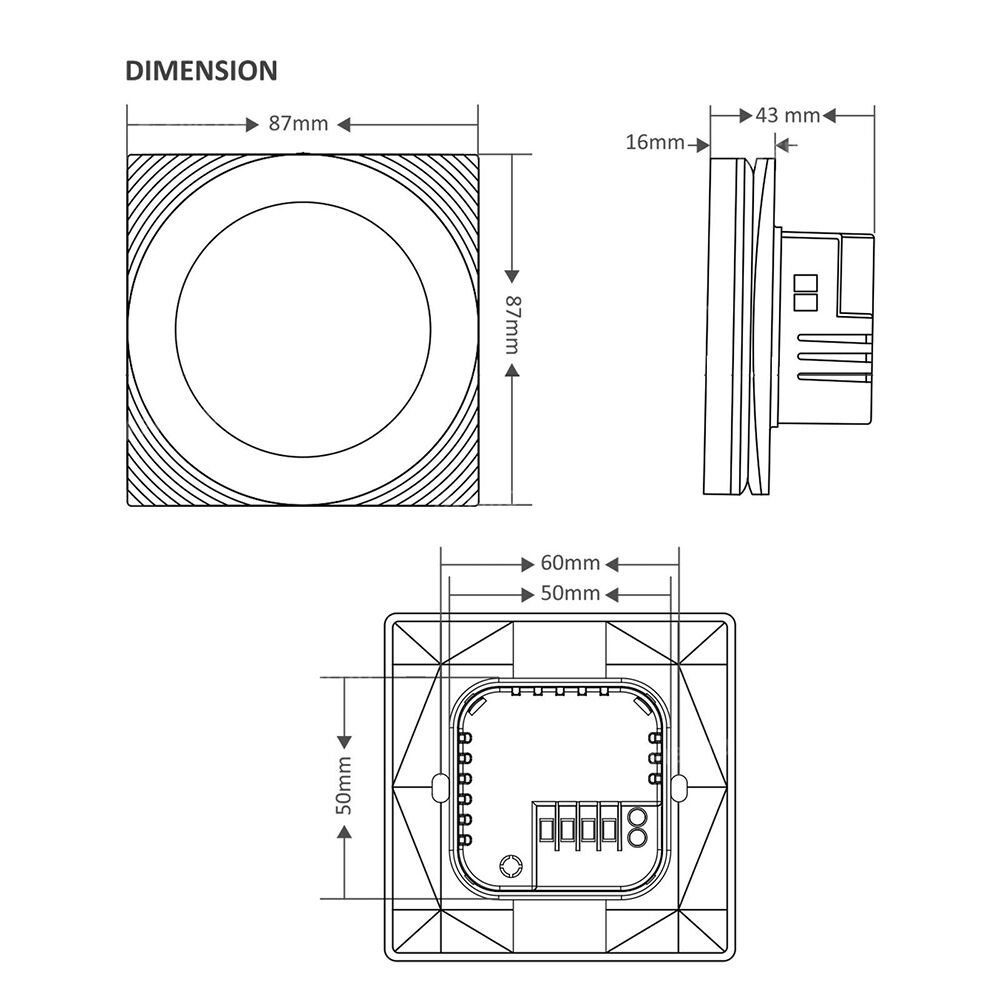

• Item size: 87*87*43mm/3.42*3.42*1.69in
• Item weight: 132g/4.65oz

Package List:

• 1 * Thermostat
• 2 * Screws
• 1 * User manual (English)
