​RELIFE M-16 4K 30fps Electronic Industrial Microscope Camera With Sony Chip for Phone Repair Stereo Microscope

RELIFE M-16 4K 30fps Electronic Industrial Microscope Camera With Sony Chip for Phone Repair Stereo Microscope

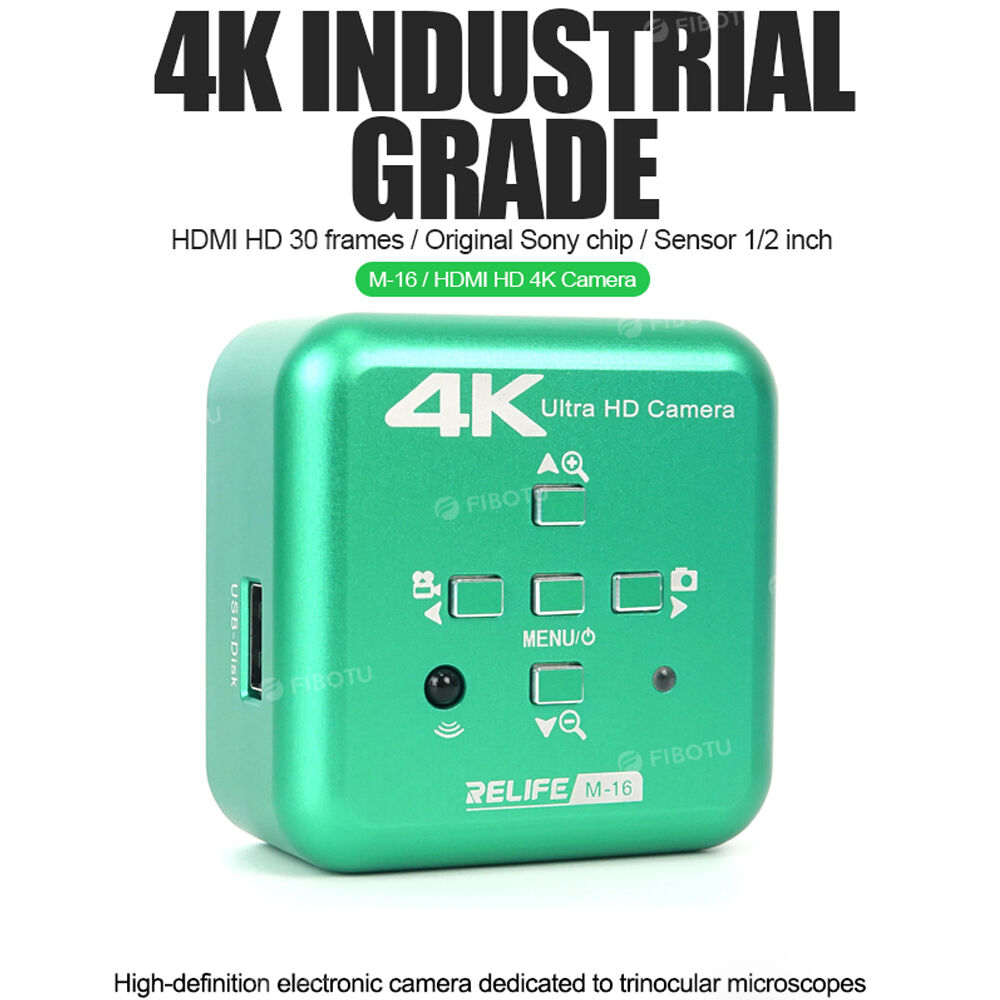

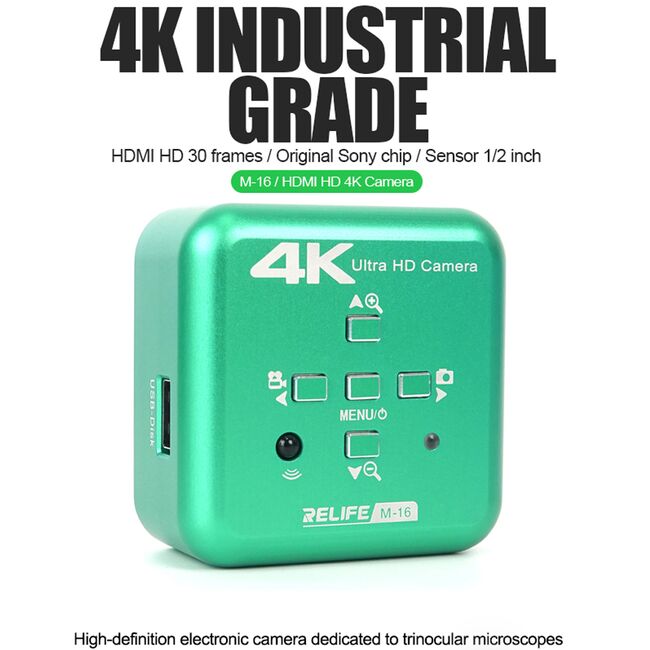

• HDMI HD 30 frames /Original Sony chip/Sensor 1/2 inch
• High-definition electronic camera dedicated to trinocular microscopes
• 4K/30 frame output/Sony chip/Ultra HD Pixels
• Equipped with 1/2-inch Sony chip, high sensitivity, showing rich picture effects

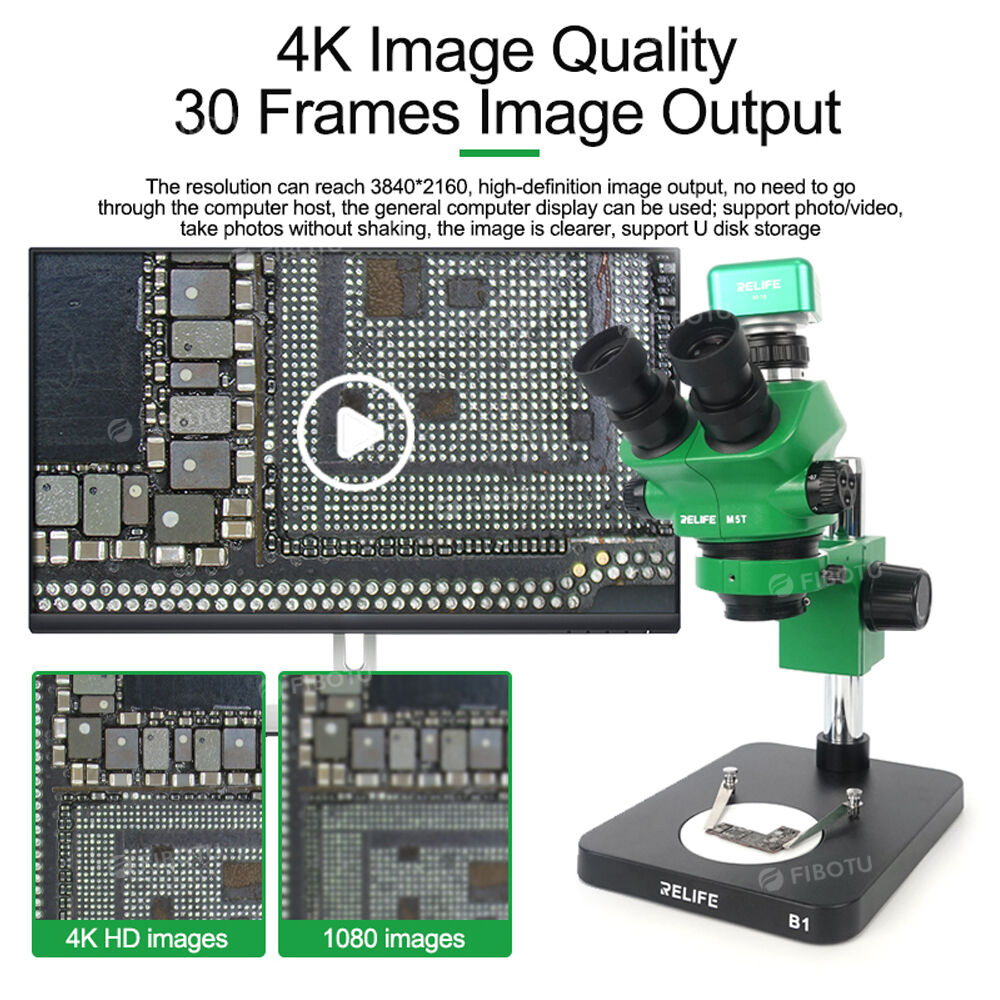

• 4K image quality 30 frames image output
• The resolution can reach 3840*2160, high-definition image output, no need to go through the computer host, the general computer display can be used
• Support photo/video, take photos without shaking, the image is clearer, support U disk storage

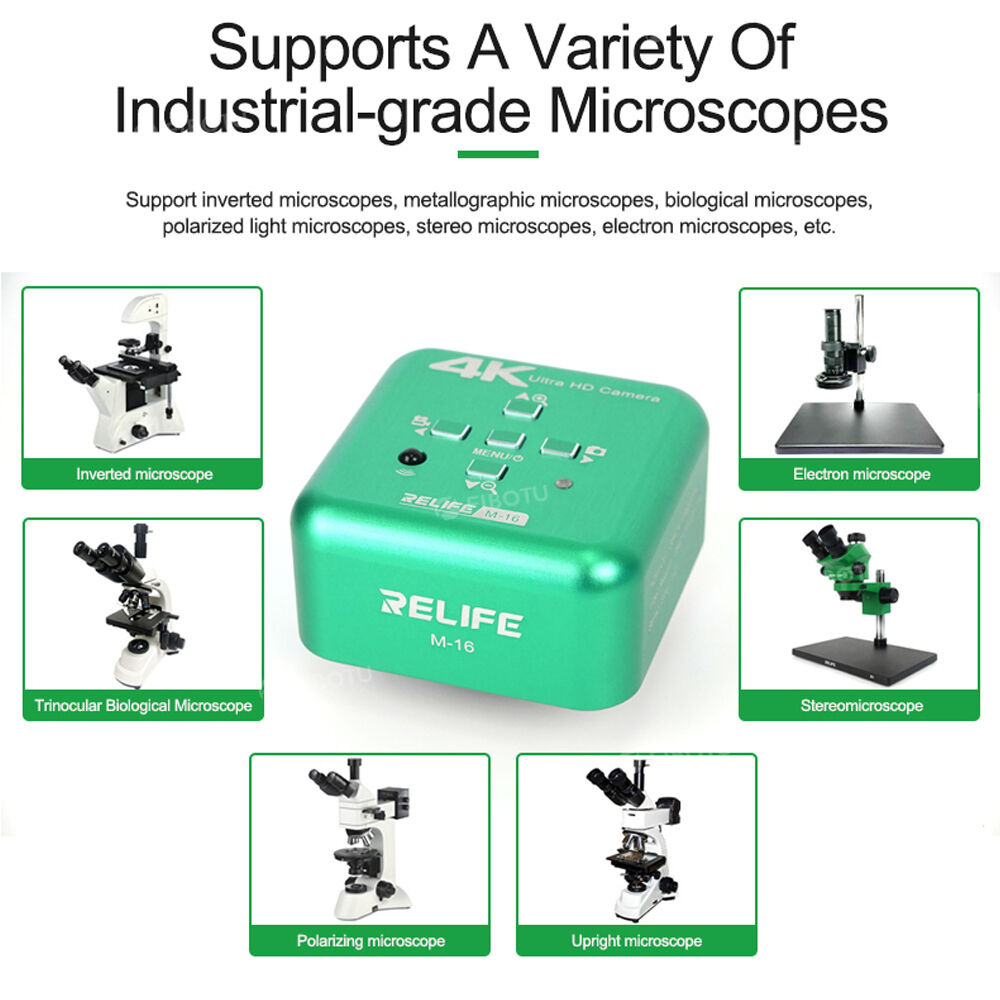

• Supports a variety of industrial-grade microscopes
• Support inverted microscopes, metallographic microscopes, biological microscopes, polarized light microscopes, stereo microscopes, electron microscopes, etc

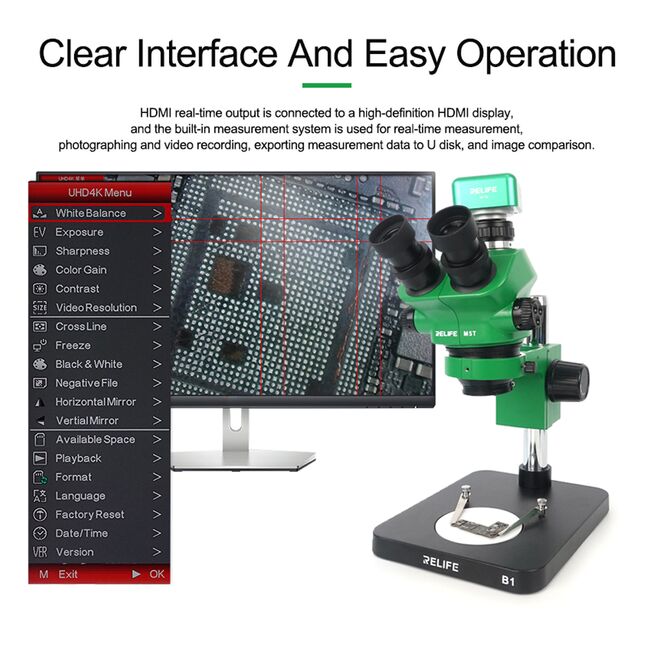

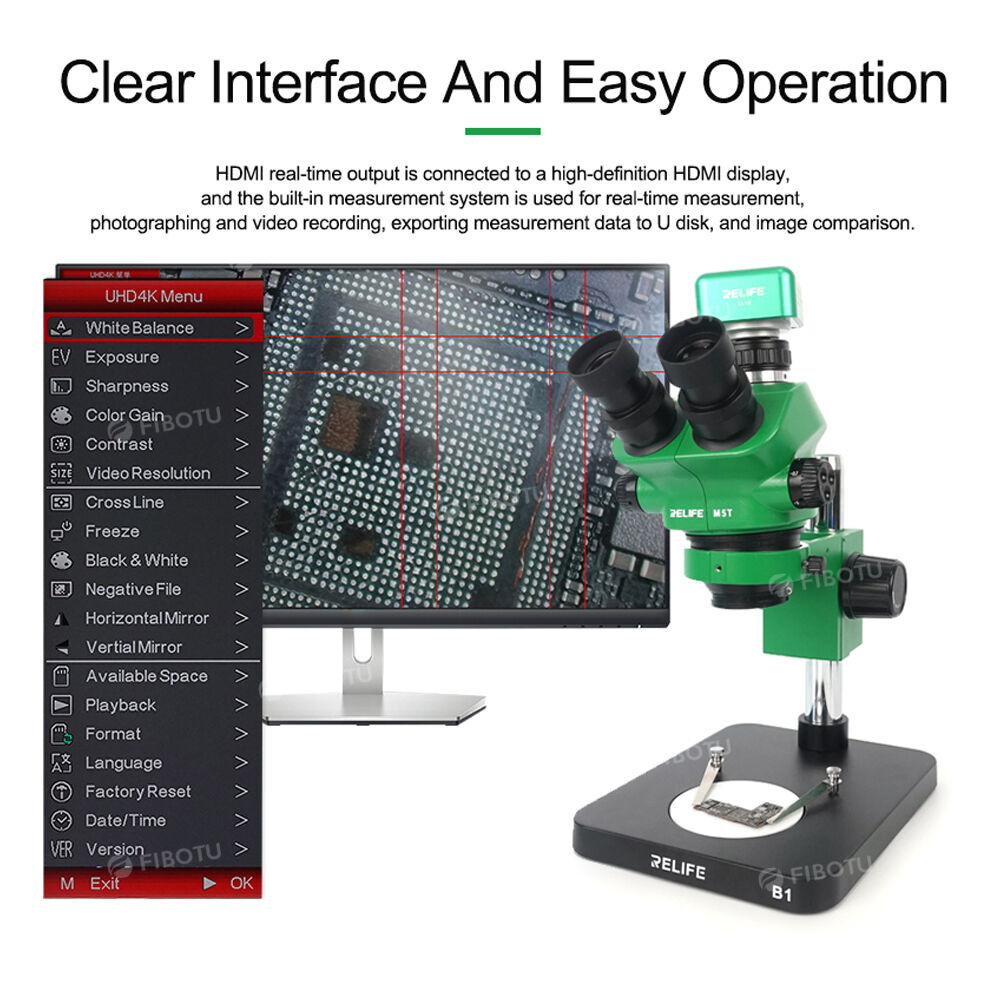

• Clear interface and easy operation
• HDMI real-time output is connected to a high-definition HDMI display, and the built-in measurement system is used for real-time measurement, photographing and video recording, exporting measurement data to U disk, and image comparison
• Support 10 horizontal and vertical lines / color / line width adjustable

Features:

• Brand: Relife
• Product Name: HDMI HD 4K Camera
• Model: M-16
• Net Weight: About 205g
• Gross Weight: About 540g

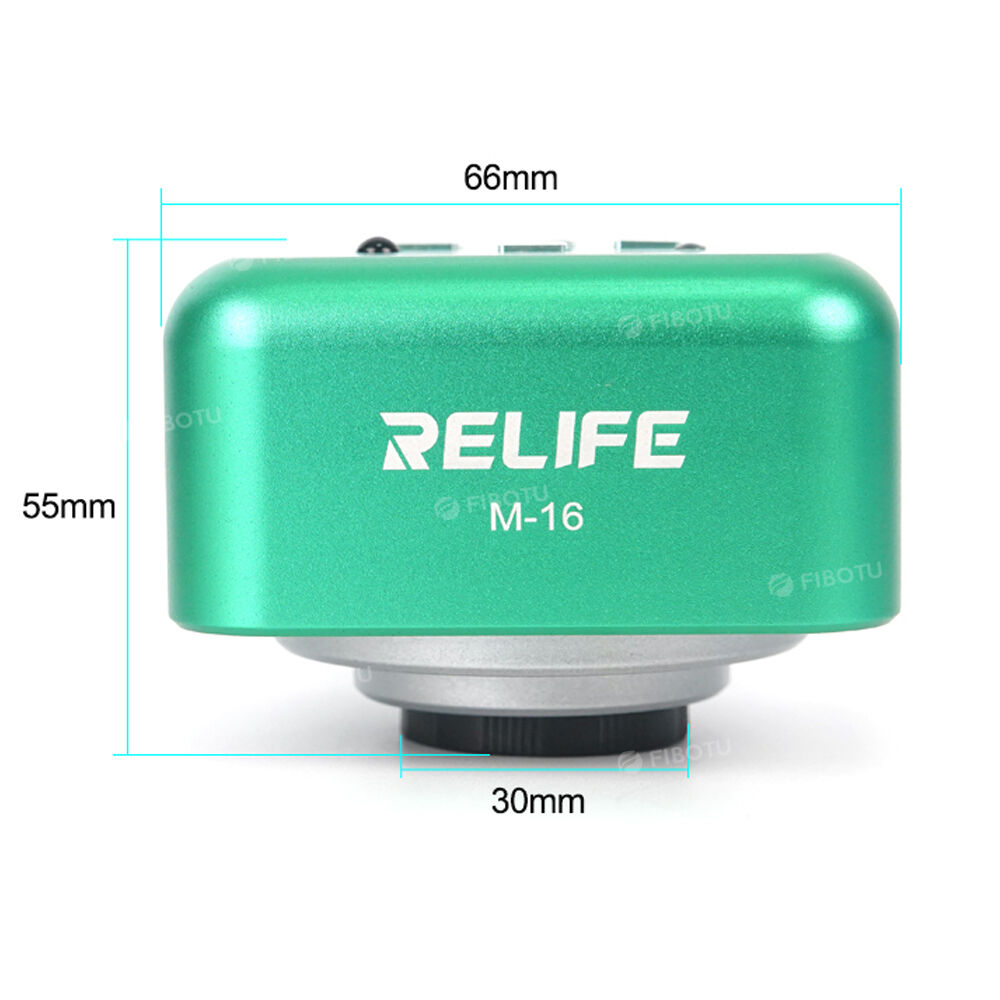

• Product Size: 66*66*40mm

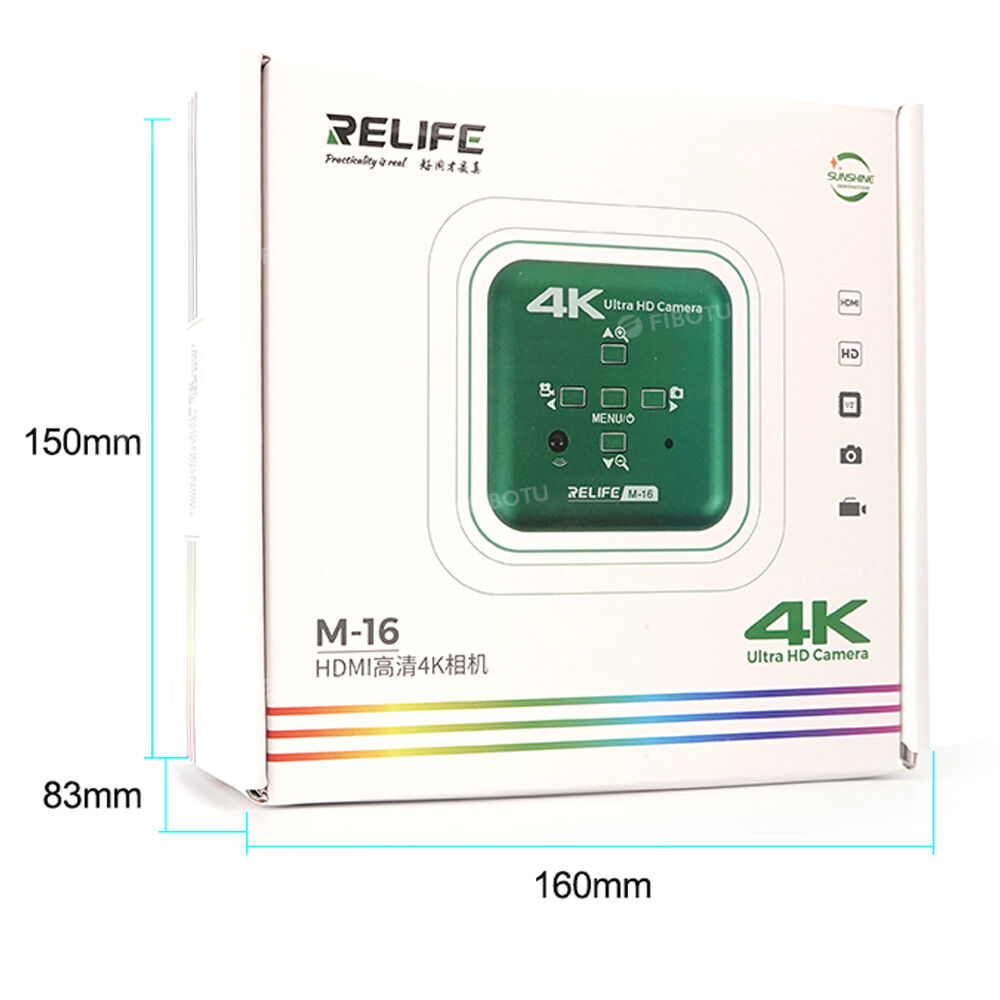

• Package Size: 150*83*160mm

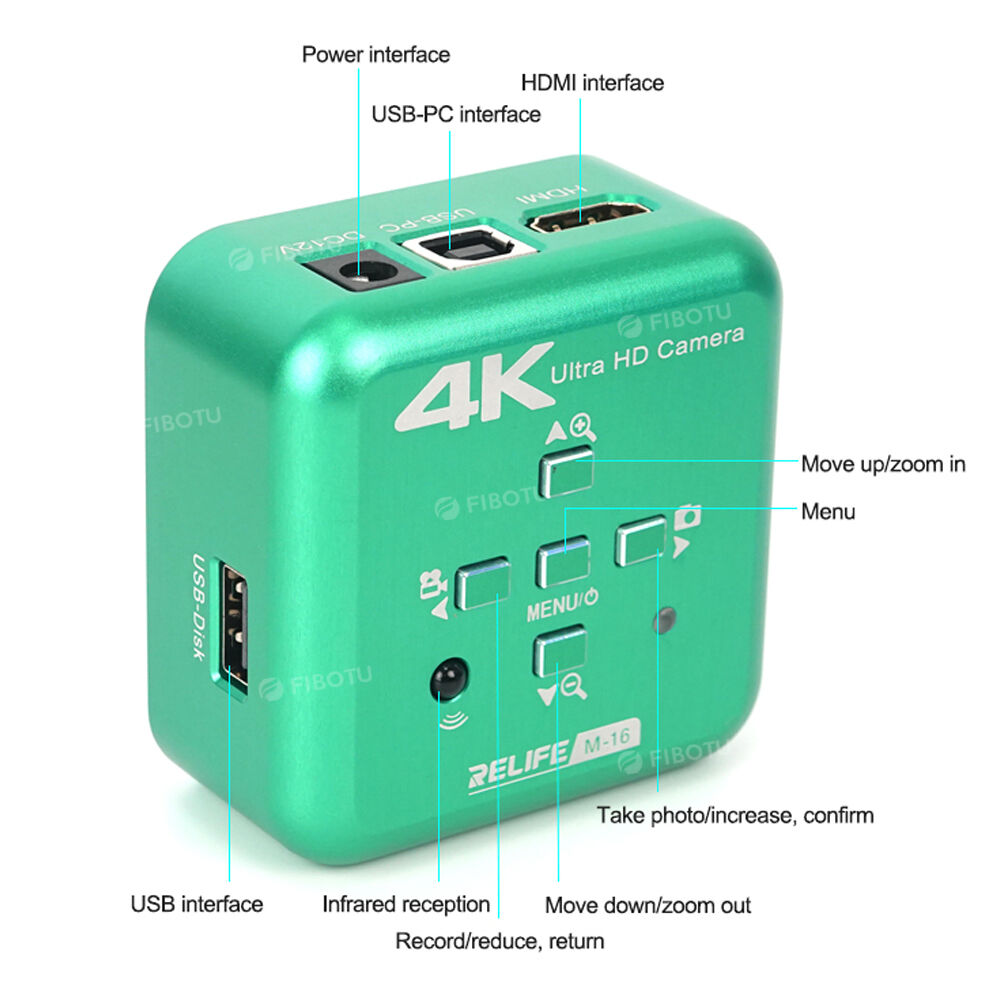

• Video Output: HDMI/USB-PC/U disk photo and video interface
• HDMI Output Resolution: 4k@30fps/1080@60fps
• USB-pc Output Resolution: 4k@25fps
• U Disk Video Resolution: 4k@30fps/1080@60fps
• Camera Interface: CS
• Operating Voltage: 12V
• Working Current: 200mA
• Photosensitive Size: 1/2 inch
• Cell Size: 2μm*2μm
• Effective Pixels: 4k/3840*2160
• Clarity: 2000 TVline
• Frame Rate: 4k@30fps/1080@60fps
• Scanning Method: Progressive line by line
• Shutter Type: Electronic shutter
• Dynamic Range: 78dB
• Signal To Noise Ratio: 40dB
• Menu Language: Chinese/English
• White Balance Mode: One-touch white balance/Manual/Auto
• Reduced Reflection Adjustment: Adjustable
• Removable Crosshair: Support 10 horizontal and vertical lines/color/linewidth adjustable configure

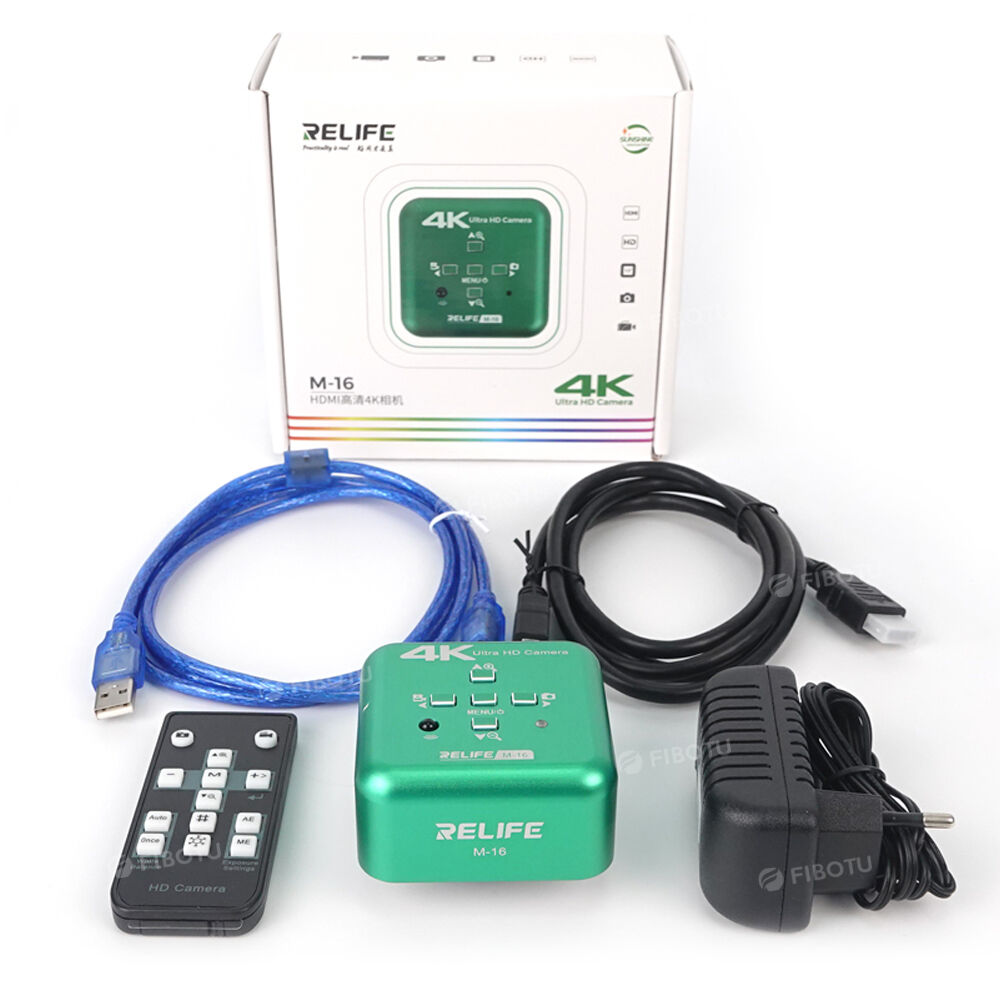

• 1 x Host
• 1 x HDMI Cable
• 1 x U Disk
• 1 x Remote Control
• 1 x Power Cord
