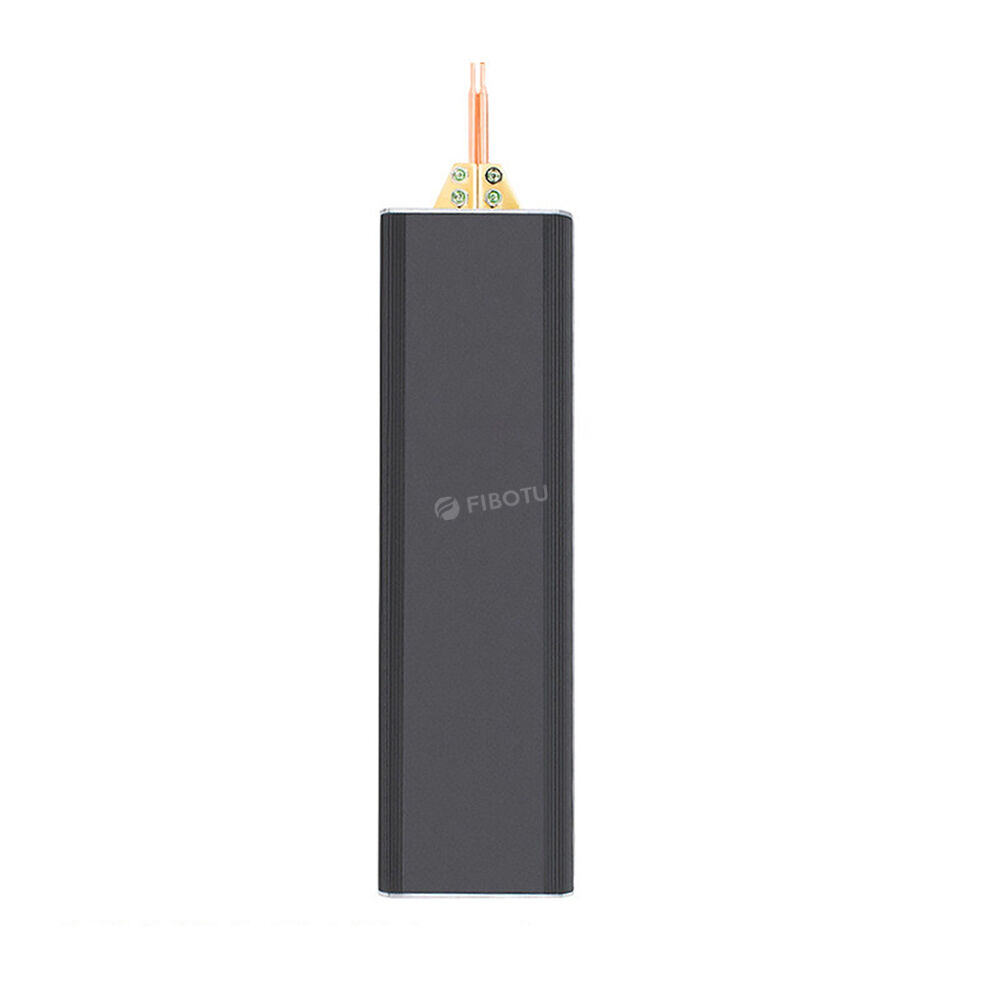

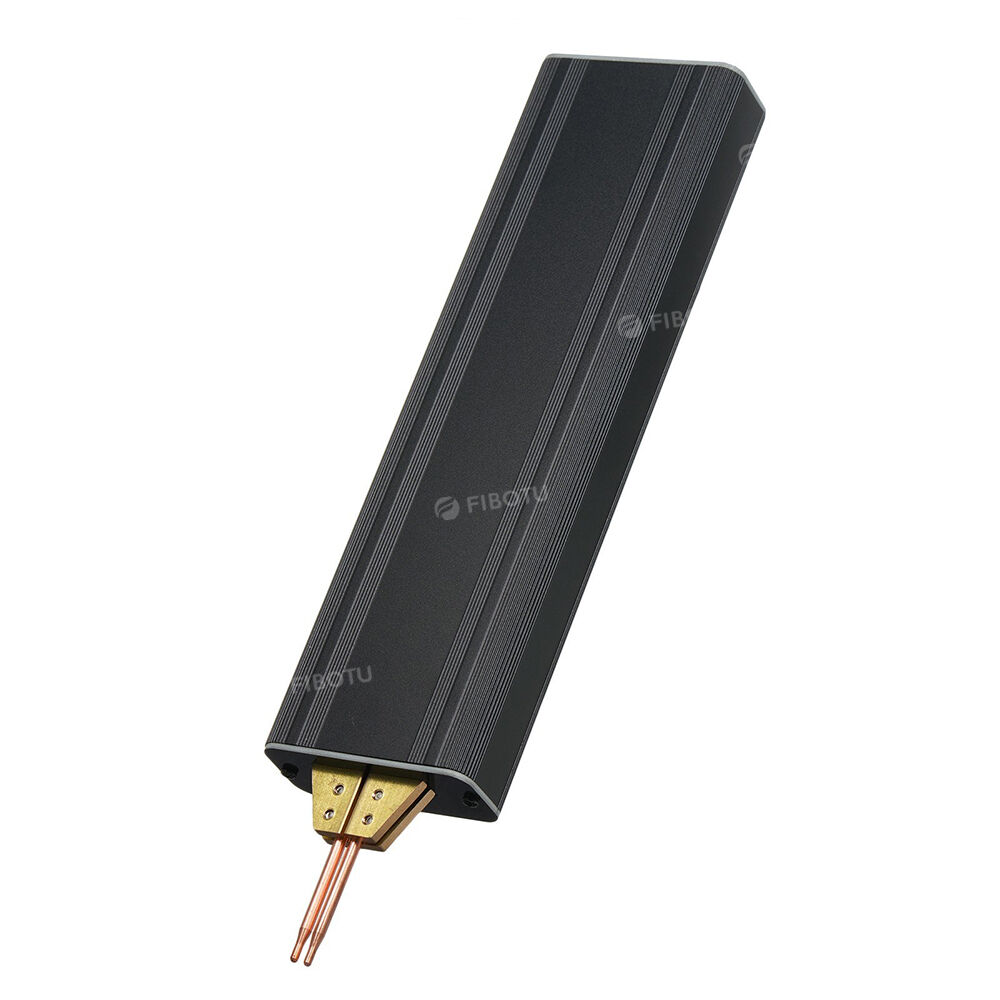

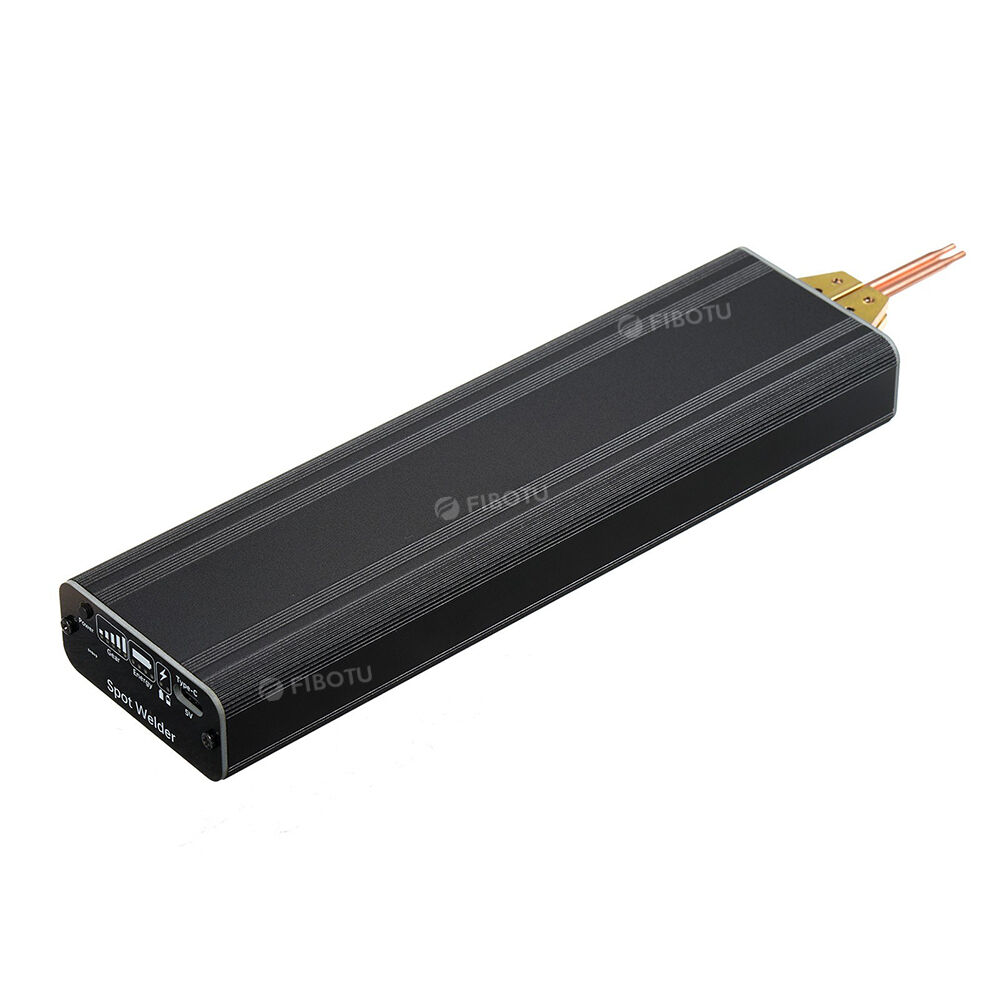

Portable Spot Welder 5 Gear Adjustable Handheld Welding Tool

Portable Spot Welder  5 Gear Adjustable Handheld Welding Tool

• 5V input (higher voltage is strictly prohibited), charging current 1A, recommended to use a 5V/2A charger. Supports charging while using.
• Supports nickel sheets with a thickness of 0.1-0.15mm, supports welding of 0.2mm nickel sheets at full charge, intelligent recognition, and fully automatic welding.

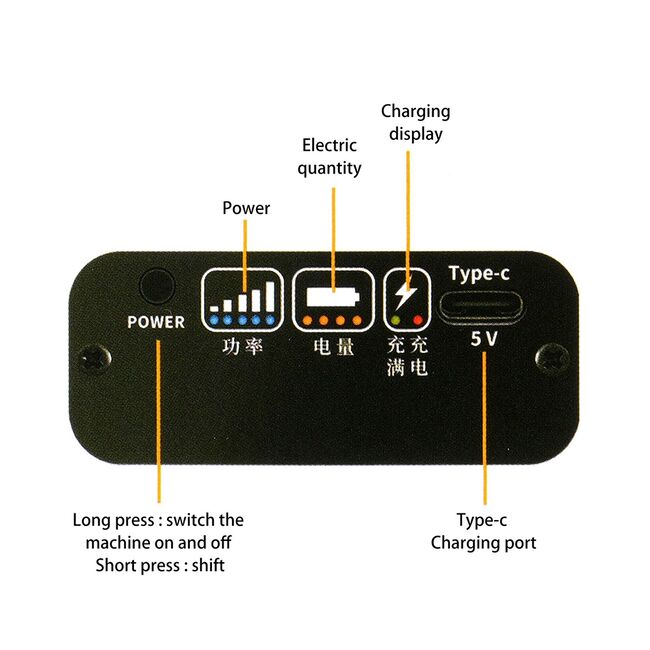

• Five adjustable power levels, four level battery display, one charging indicator light, and one fully charged indicator light.

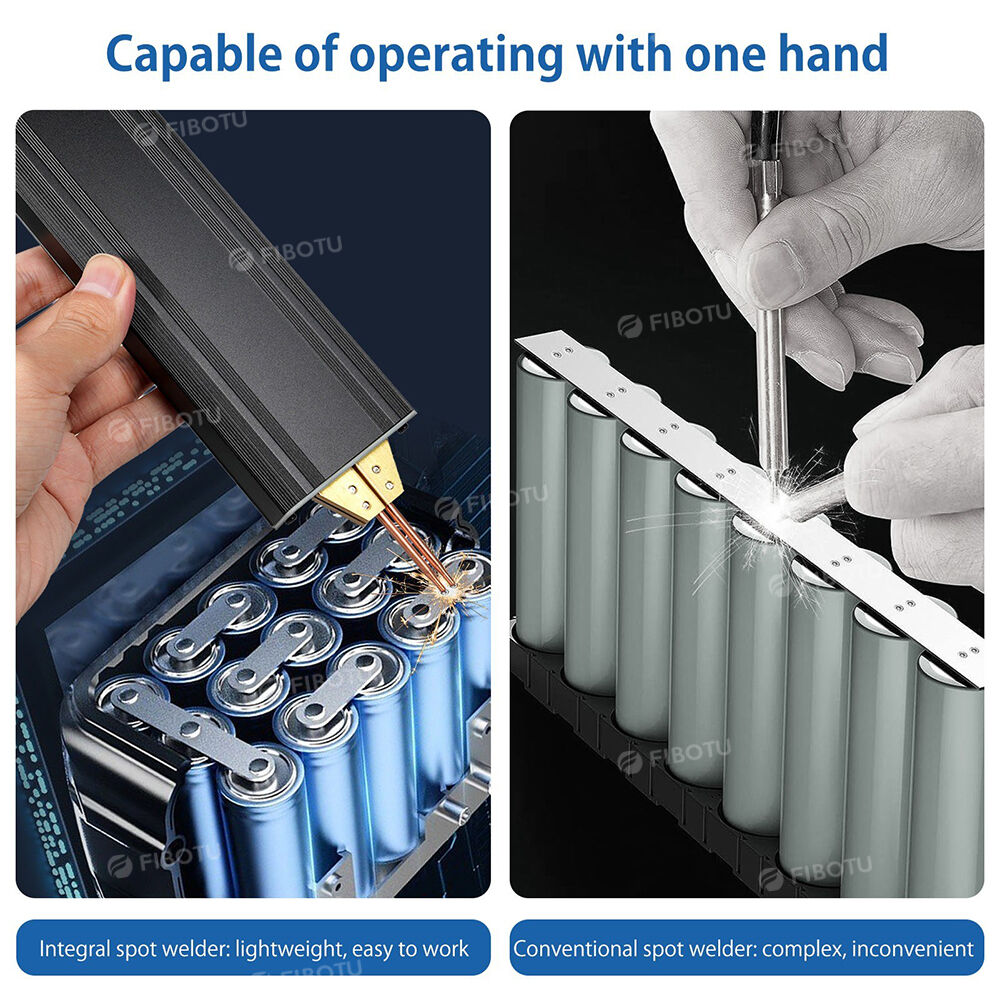

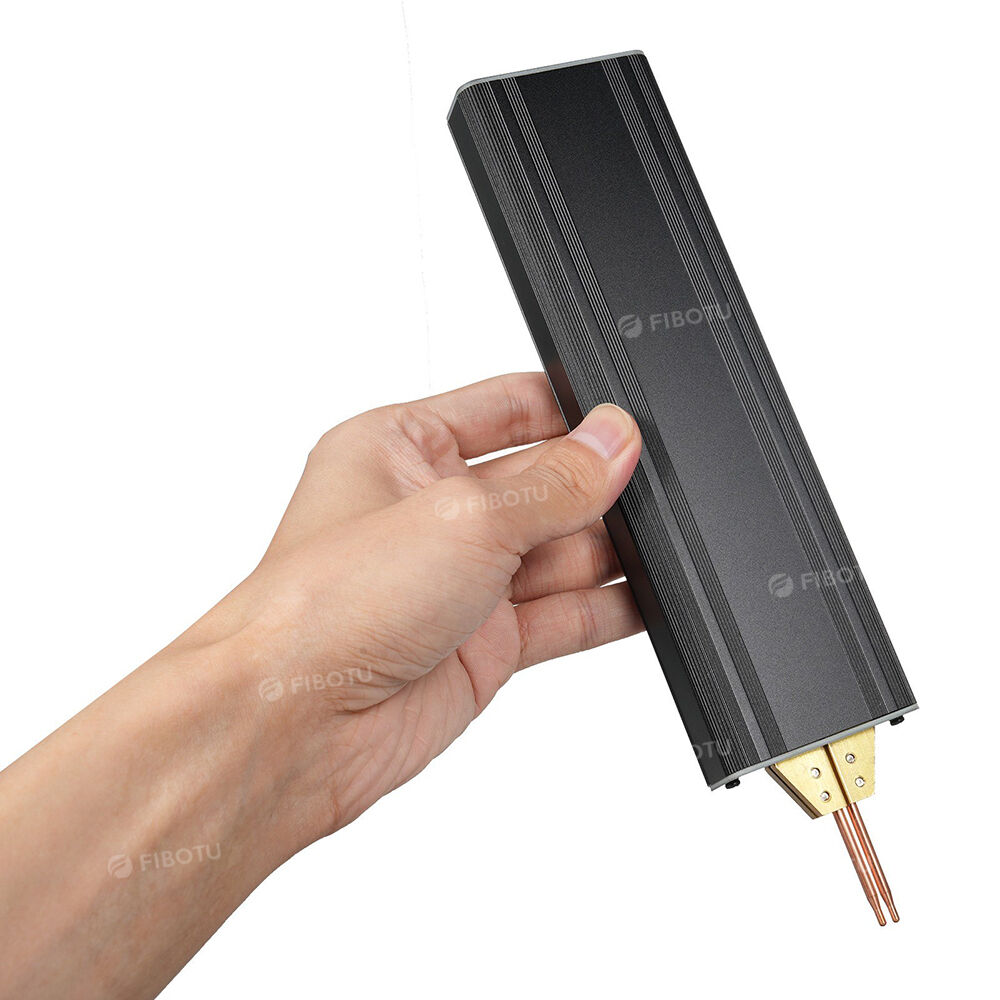

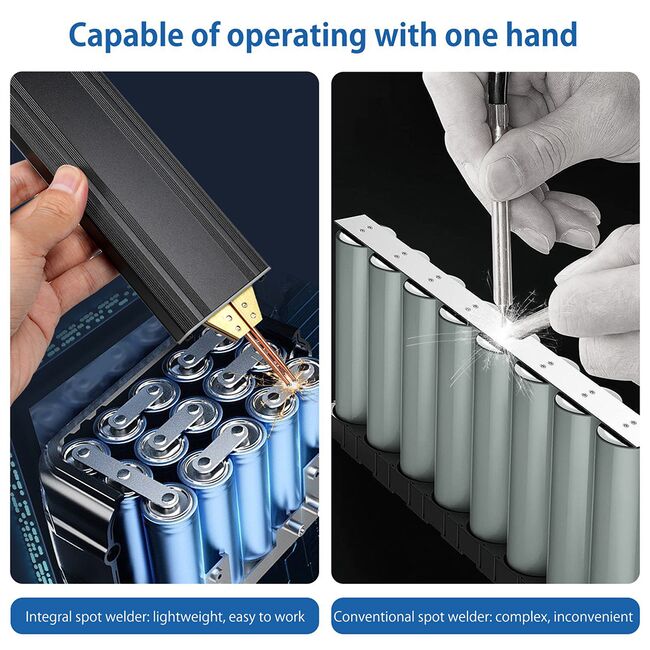

• The spot welding machine comes with a nickel strip that can be held by one hand for easy use.
• Charging display, buzzer alarm.
• Summary: Intelligent spot welding machine with 5V input, 5 adjustable power levels, and automatic welding functionality.

• Maximum output current up to 1200A
• Fully charged, capable of continuously welding 1000 times

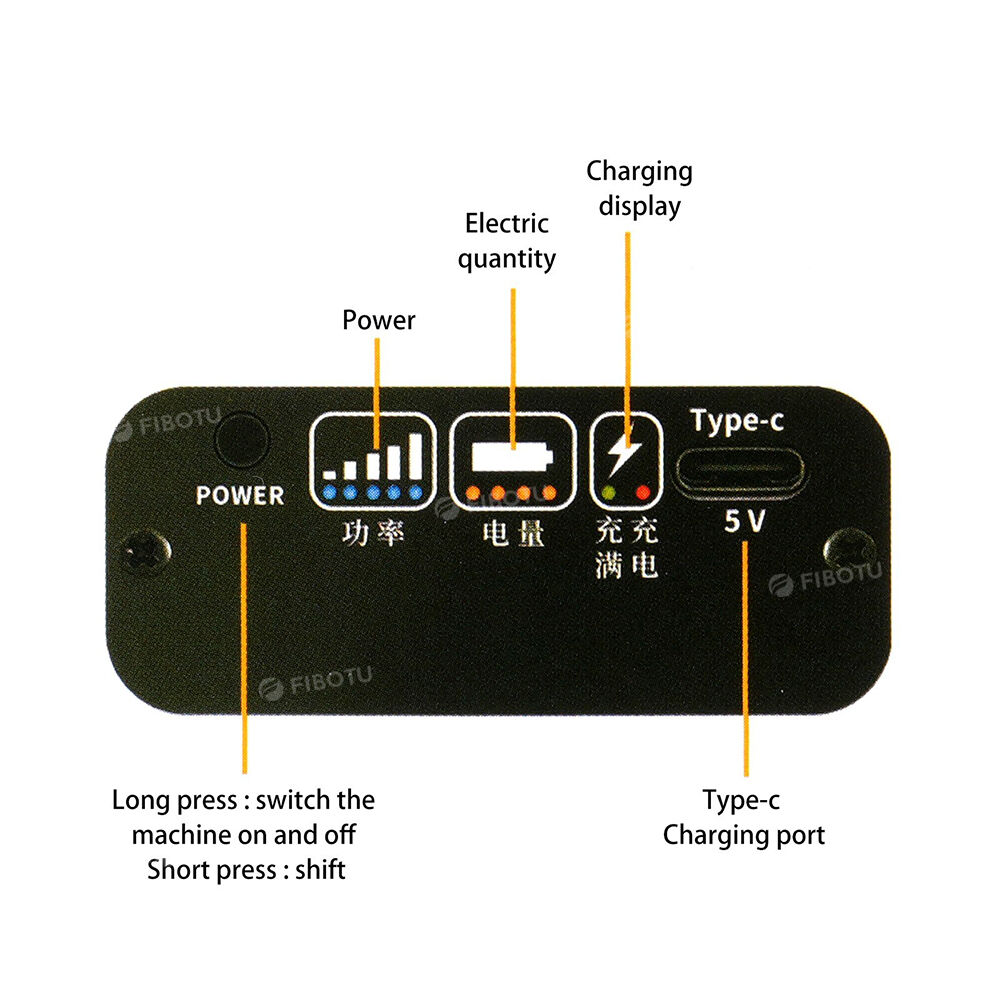

• Five adjustable power levels, short press button control, blue light indication
• Charging port: USB plug for charging
• Charging voltage: 5V input (higher voltage input is strictly prohibited)
• Charging current: 1A (it is recommended to use a 5V/2A charger)
• This product supports charging while using. The remaining battery indicator is green (high), green flashing (medium high), red flashing (medium low), red (low).

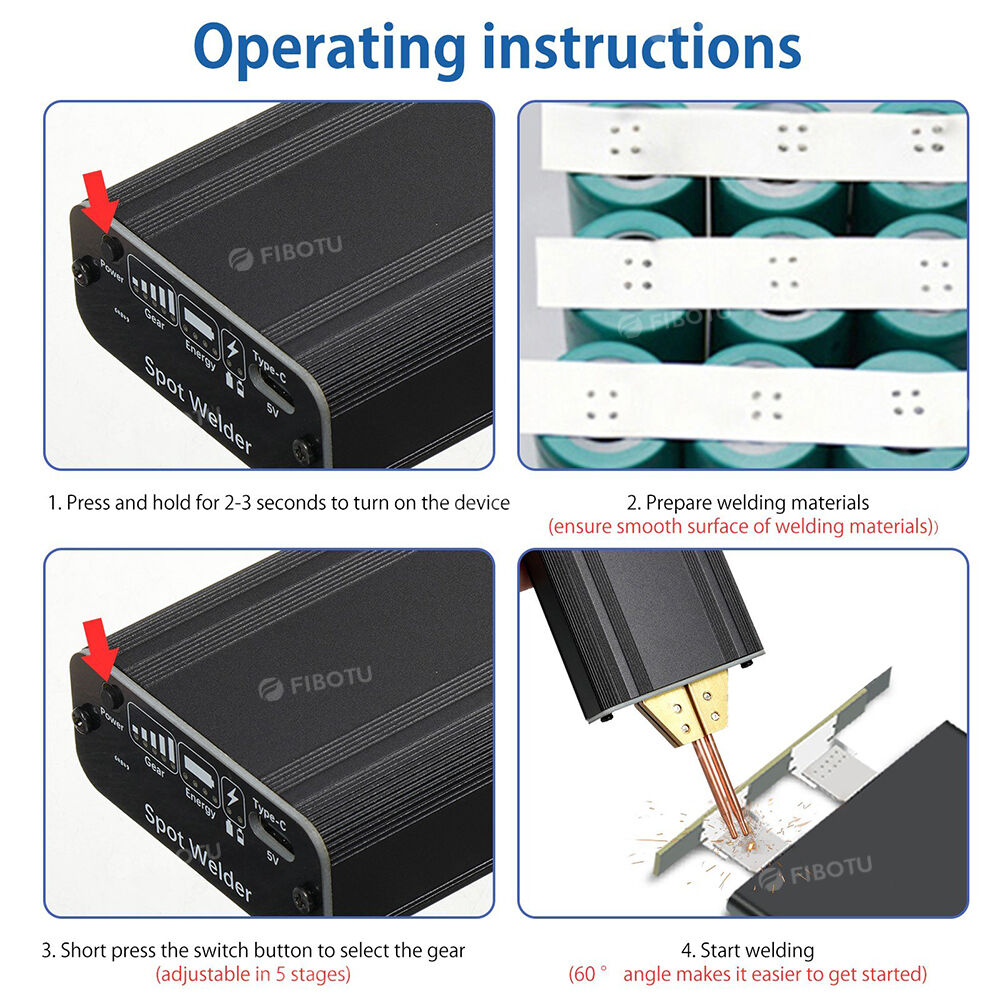

• Short press the button to turn on, long press the button for 3 seconds to turn off
• After startup, the module is in automatic welding mode, and welding occurs once every 2 seconds
• After turning on, the output power of the spot welding machine can be changed by briefly pressing the button, and the blue light indicates the gear position
• Ensure that the welding surface of the battery is free of rust and clean and flat
• Ensure that the nickel sheet is clean and flat
• When the welding head detects contact with metal, it can output once, and after lifting it, it can be welded again for the next time
• Set up the spot welding machine and press it with appropriate force to ensure good contact between the welding needle and the nickel sheet, as well as between the nickel sheet and the battery, without any suspension or poor contact.

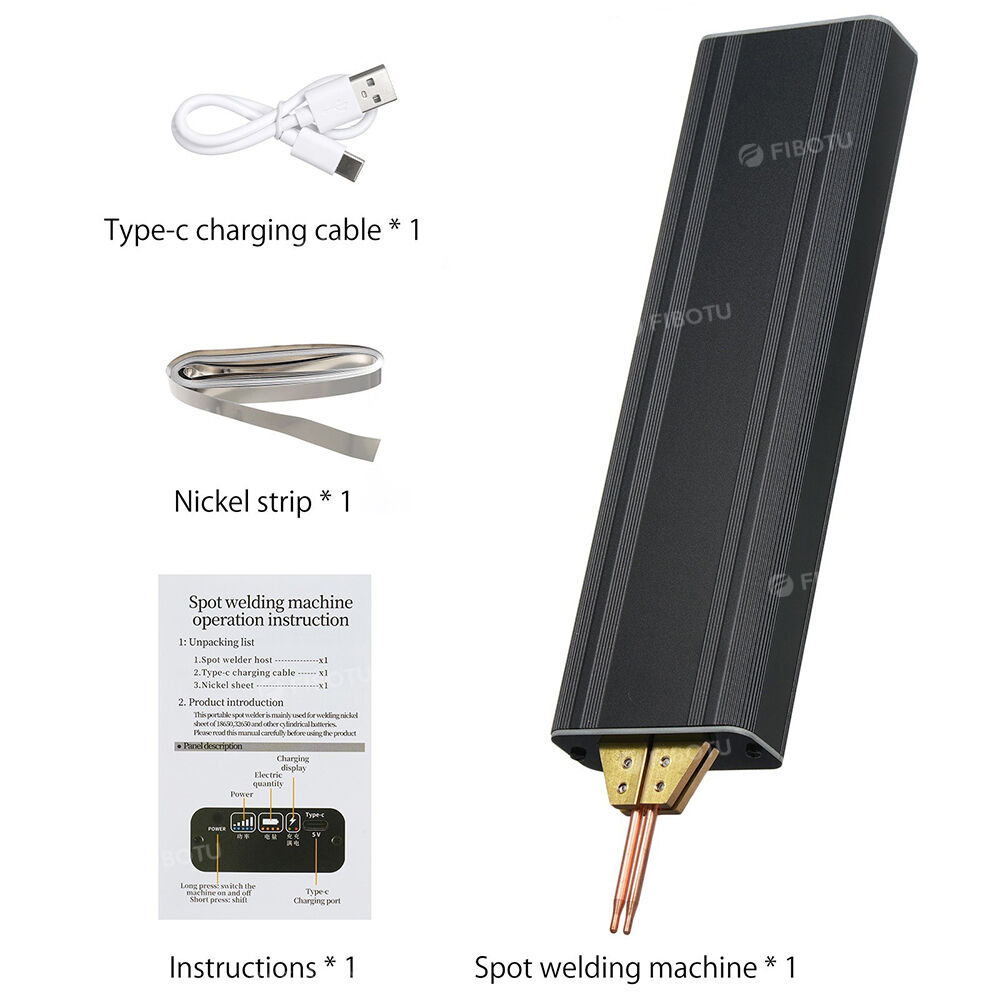

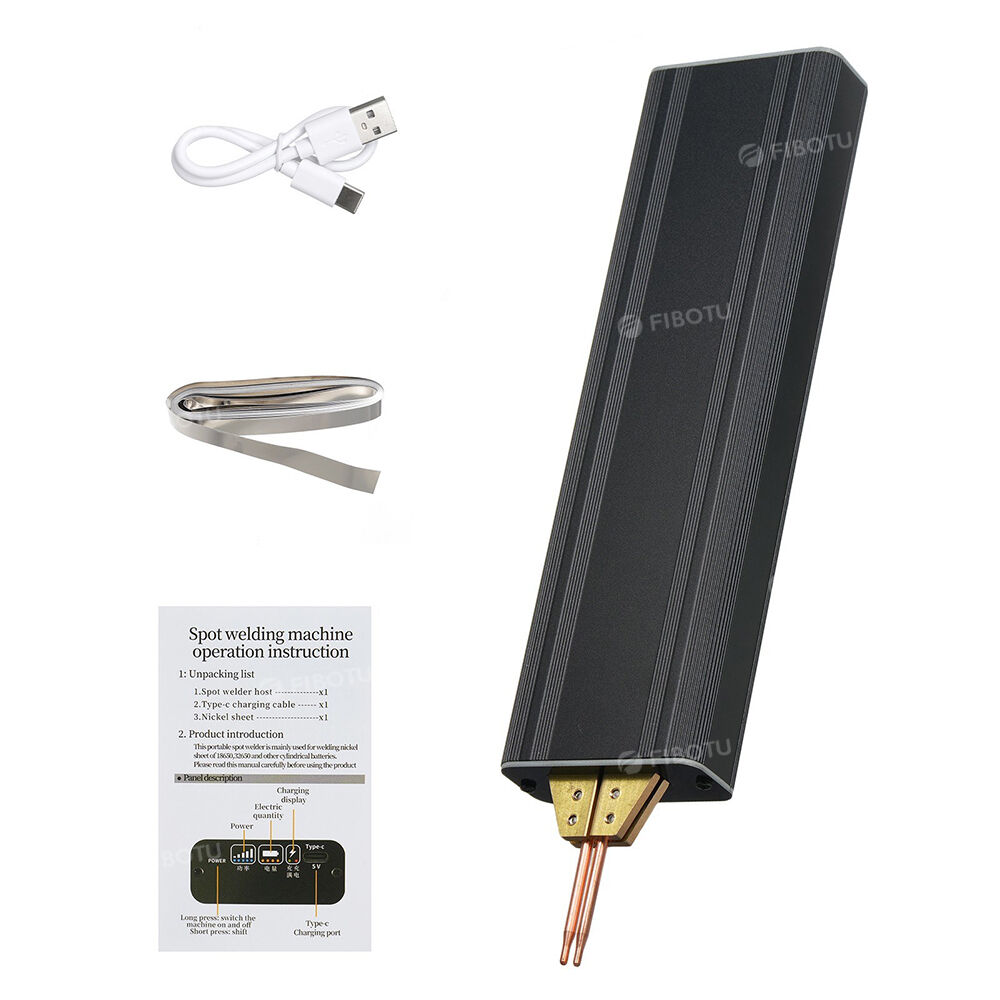

Package List:
• 1x Spot welding machine
• 1x Nickel strip
• 1x USB charging cable
