Mechanic iScout PCB Motherboard Locate Faulty Detection Infrared Thermal Imaging Camera

Mechanic iScout PCB Motherboard Locate Faulty Detection Infrared Thermal Imaging Camera

Features:

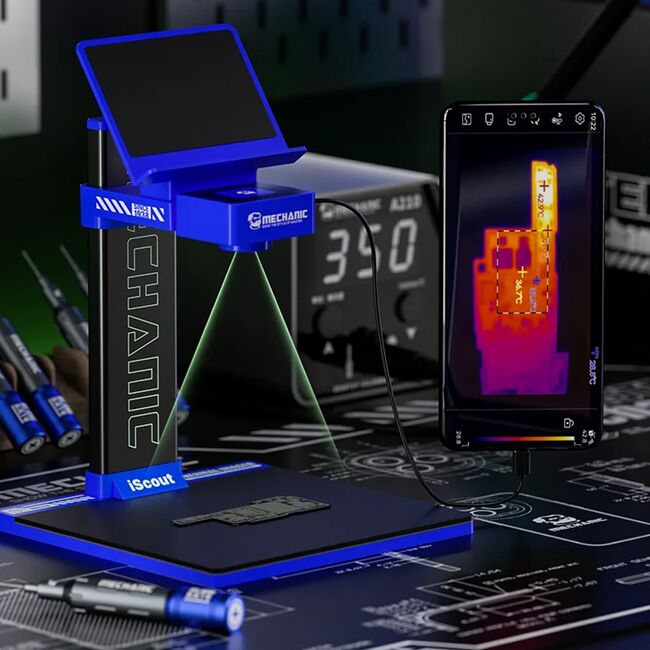

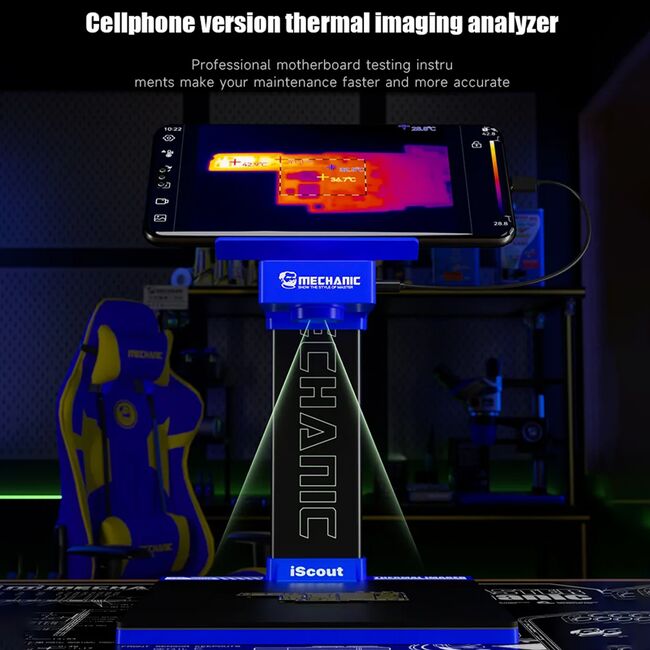

• The Mechanic iScout thermal imaging analyzer camera, professional motherboard testing instruments make your maintenance faster and more accurate

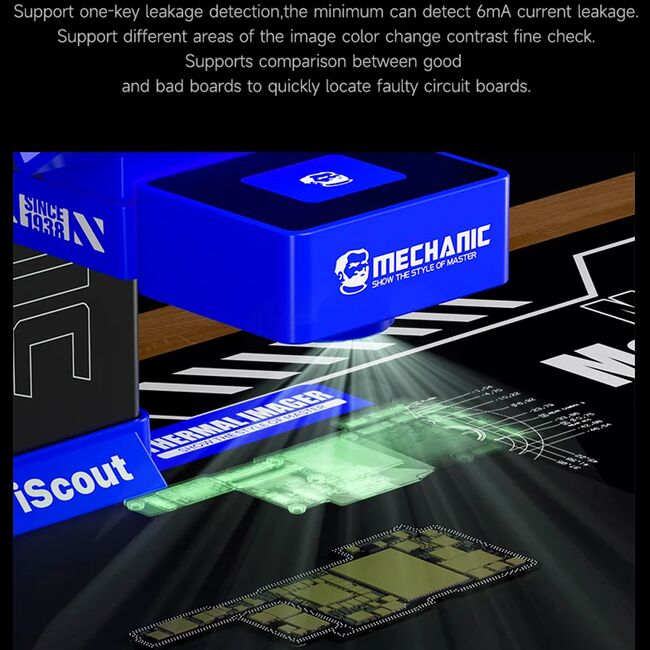

• Support one-key leakage detection,the minimum can detect 6mA current leakage
• Support different areas of the image color change contrast fine check
• Supports comparison between good and bad boards to quickly locate faulty circuit boards

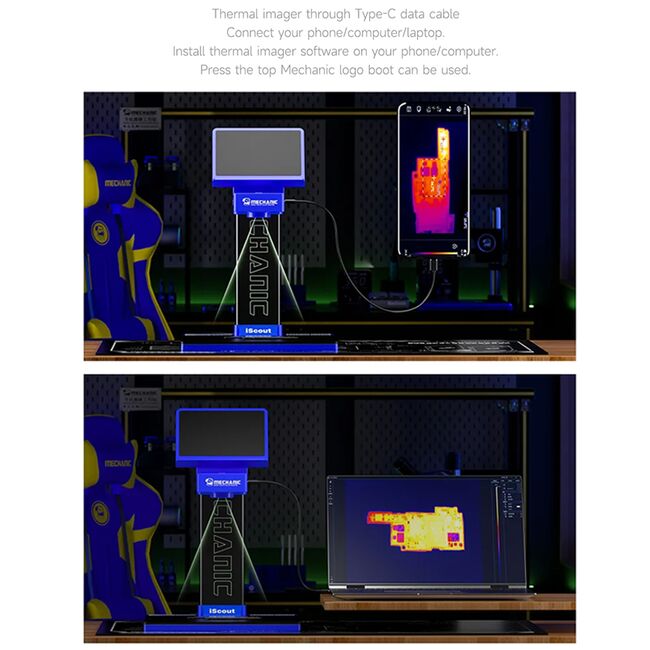

• Compatible with phone/computer, thermal imager through Type-C data cable, connect your phone/computer/laptop, install thermal imager software on your phone/computer can be used

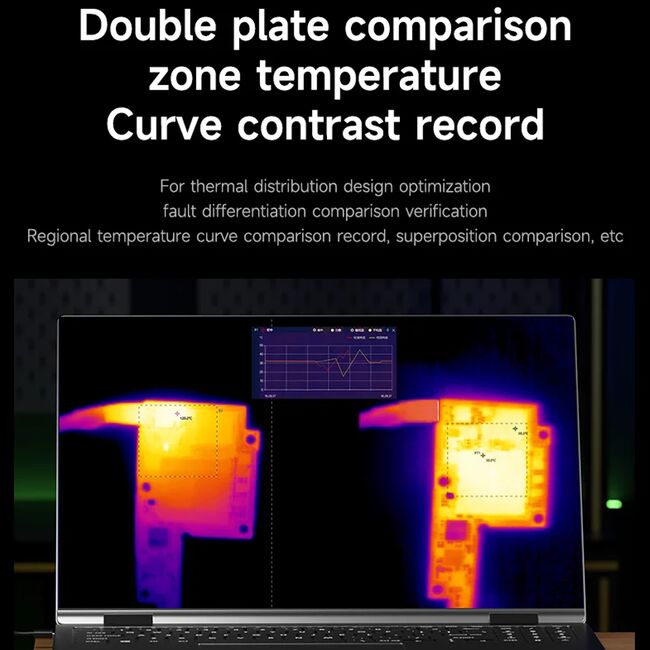

• Double plate comparison zone temperature, curve contrast record, for thermal distribution design optimization, fault differentiation comparison verification, regional temperature curve comparison record, superposition comparison, etc
• 52000 points effective temperature measurement, 192x256 full frame infrared detection

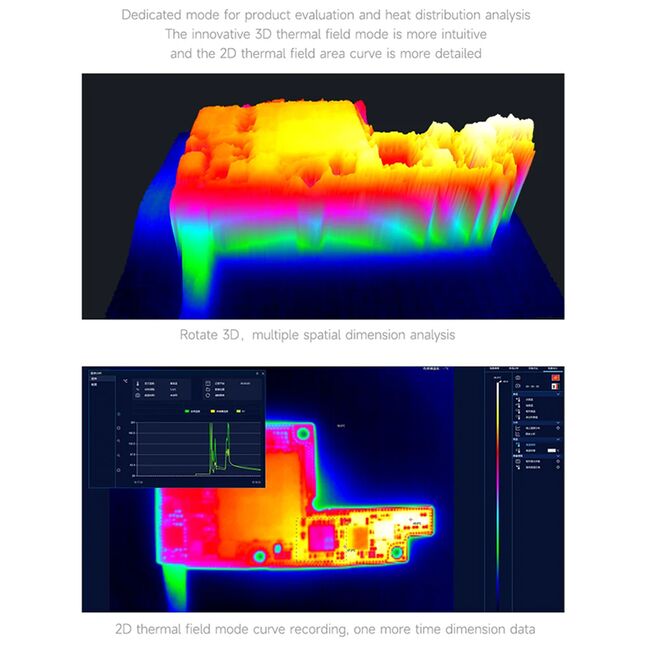

• 3D thermal field distribution, display of temperature changes, dedicated mode for product evaluation and heat distribution analysis
• The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed

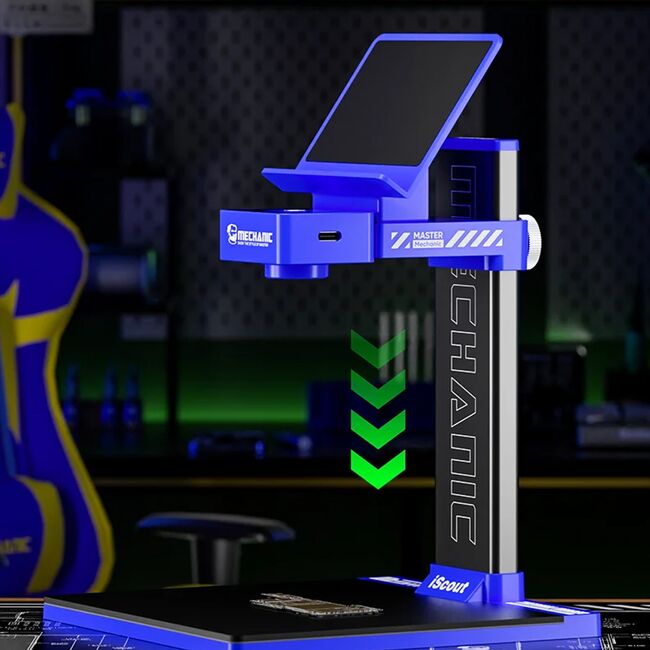

• It can realize up and down, go up and down and select the appropriate detection angle, the working distance is 100-150mm, and the extended lens can be observed at 30mm

Specification:

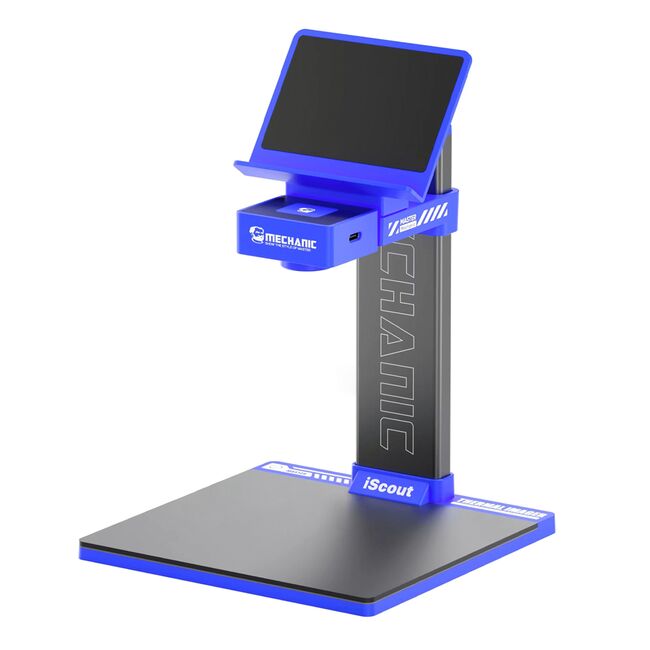

• Model: iScout
• Name: Thermal Imaging Camera
• Resolution: 256x192 pixels
• Measurement distance: 100~150mm
• Device interface: Type-C interface
• Lens field of view Angle: 56°x42°
• Image storage format: JPG
• MP4 Video storage format: MP4
• Temperature range: -15℃~+600℃
• Detection: Minimum current leakage of 6mA
• Size: 147*147'217mm
• Net Weight: 433g

Package includes:

• 1 x Thermal Imaging Camera
• 2 x Type-C Cable
• 1 x Macro Lens
