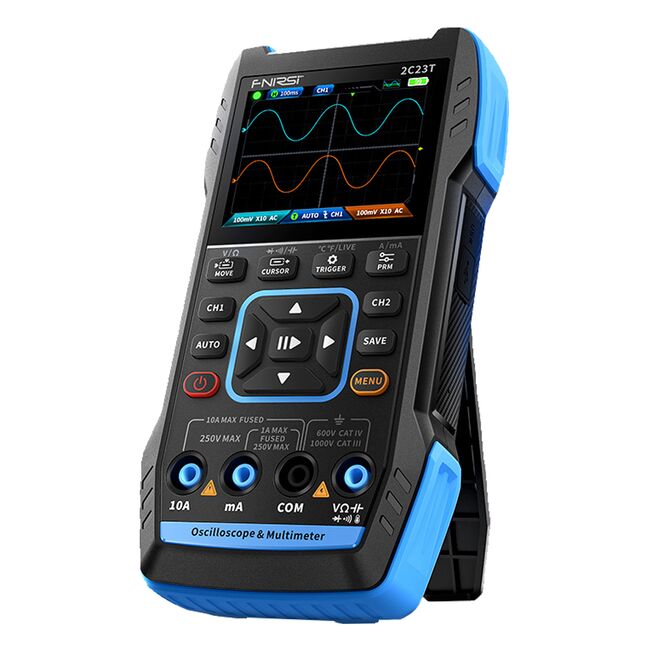

Fnirsi 2C23T Handheld 3-in-1 Dual Channel Digital Oscilloscope + Multimeter + Signal Generator

Fnirsi 2C23T Handheld 3-in-1 Dual Channel Digital Oscilloscope + Multimeter + Function Signal Generator

Features:

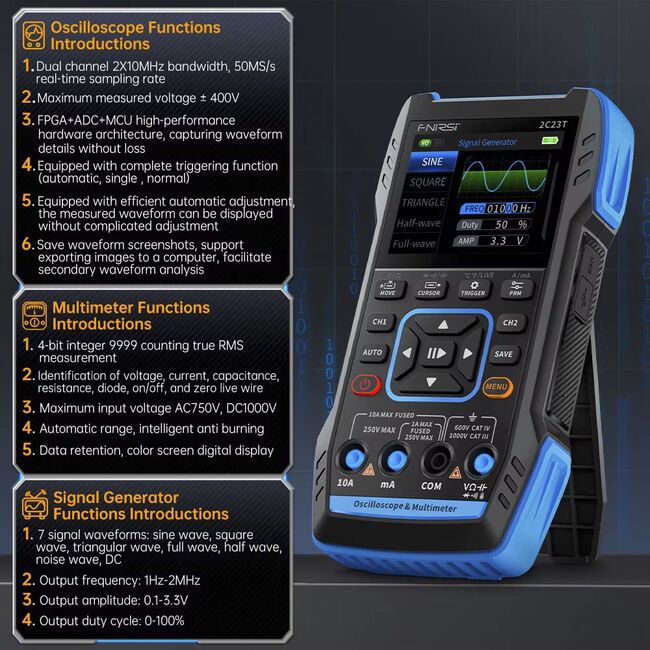

• 2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI
• This device is equipped with three main functions oscilloscope, multimeter, and signal generator
• The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V
• Support for saving and viewing waveform screenshots for analysis has a 4-digit 10000-point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off, and other measurement functions
• Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz, the output frequency, amplitude, and duty cycle are adjustable

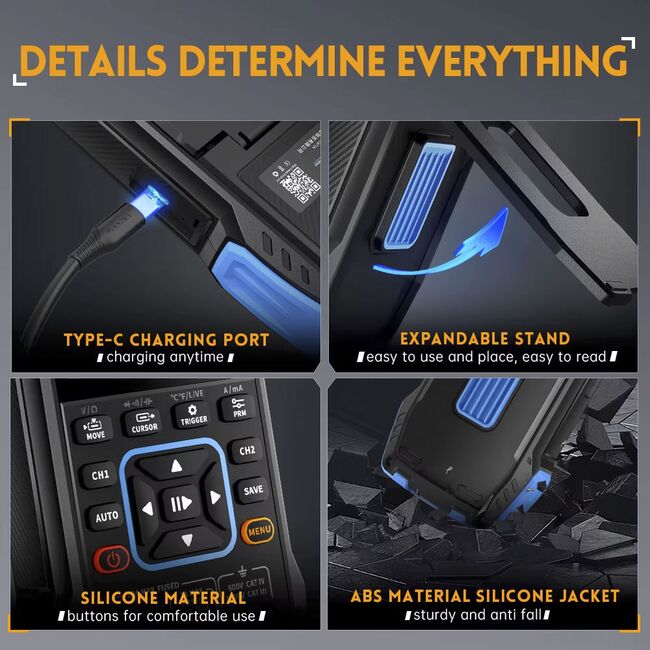

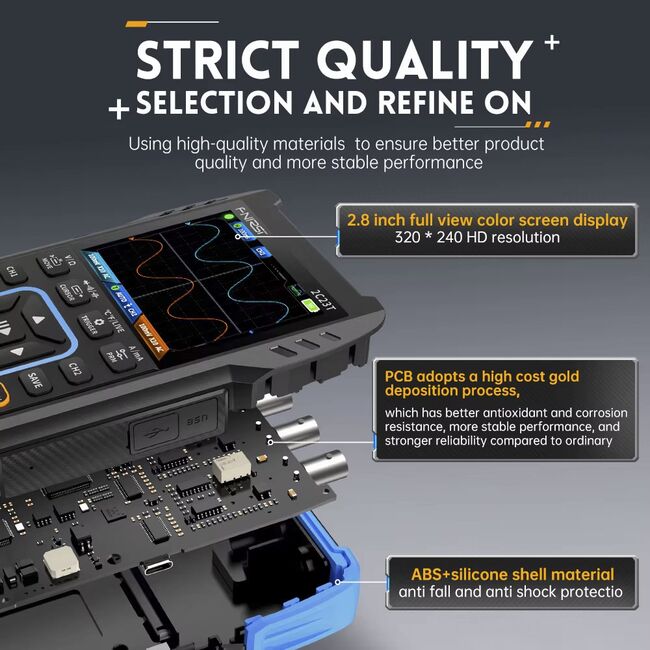

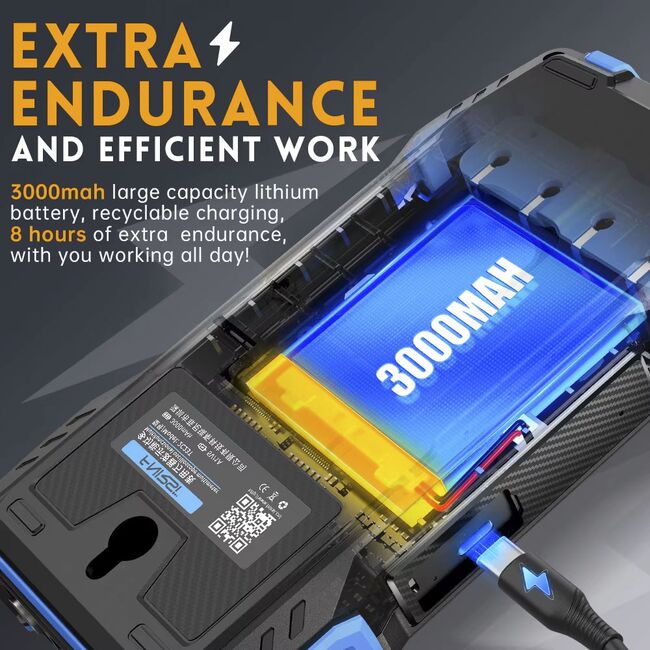

• Using a 2.8 inch 320*240 resolution high-definition LCD screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6H
• Provide users with more and stronger practical functions in a compact size, while also having good portability
• Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument

Specification:
Oscilloscope:

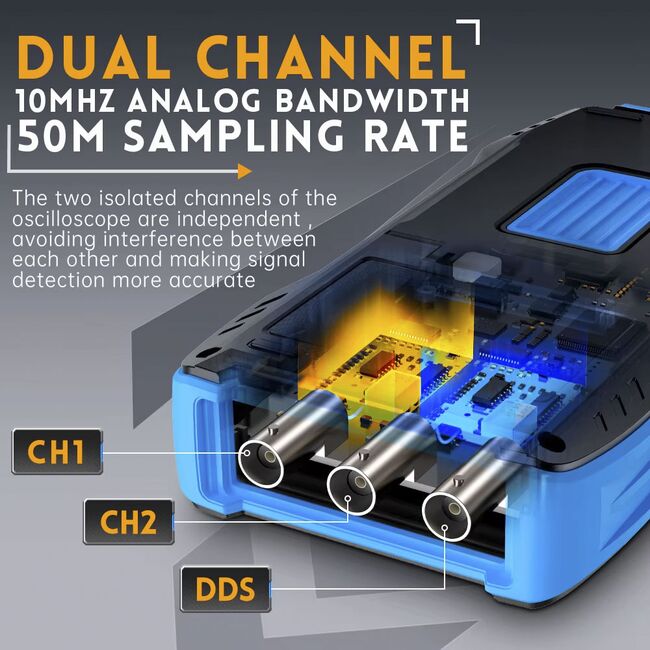

• Channel: Dual-channel
• Sample rate: 50M
• Analog bandwidth: 10M (Dual channel independent 10M)
• Storage depth: 32kB
• Impedance: 1MΩ
• Time Base Range: 50ns~10s
• Vertical sensitivity: 20mV/div~10V/div (X1)
• Maximum measured voltage: ±400V
• Trigger mode: Auto/Normal/Single
• Trigger type: Rising edge, Falling edge
• Display mode: YT/Scroll
• Coupling method: AC/DC

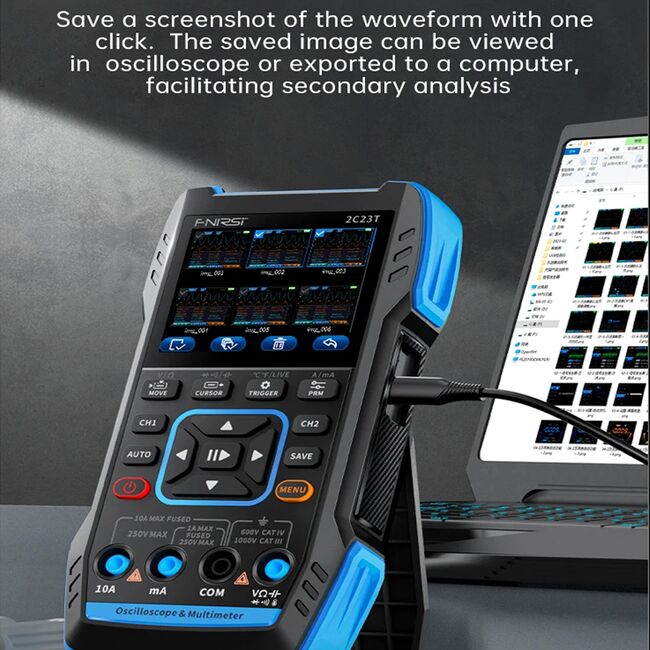

• Save waveform screenshot: Yes
• Export waveform images: Yes

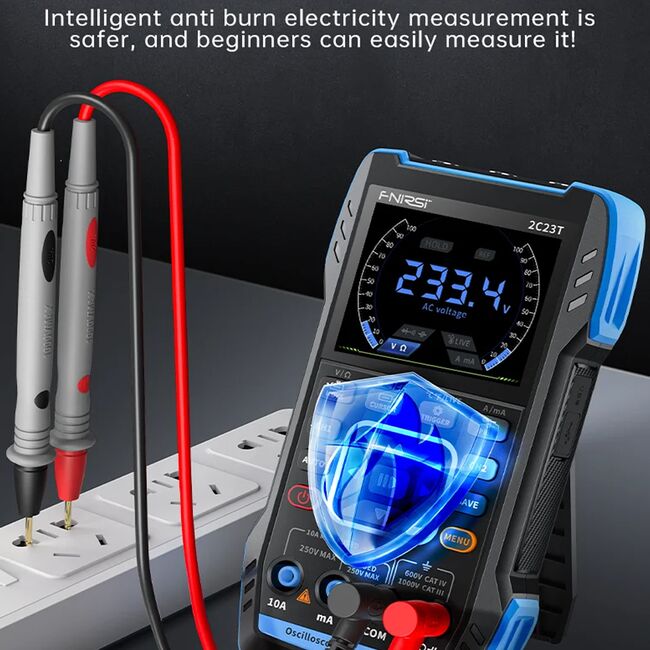

Multimeter:

• DC Voltage: 9.999V~999.9V
• AC voltage: 9.999V~750.0V
• DC: 9999uA~9.999A
• AC: 9999uA~9.999A
• Resistance: 999.9Ω~99.99MΩ
• Capacitance: 9.999nF~99.99mF
• Temperature Range: -55~1300℃/-67~2372℉
• Diode: Yes
• Continuity test: Yes
• Live line detection: Yes

Function Signal Generator:

• Channel: Single channel
• Frequency: 1Hz~2MHz
• Amplitude: 0.1~3.3V

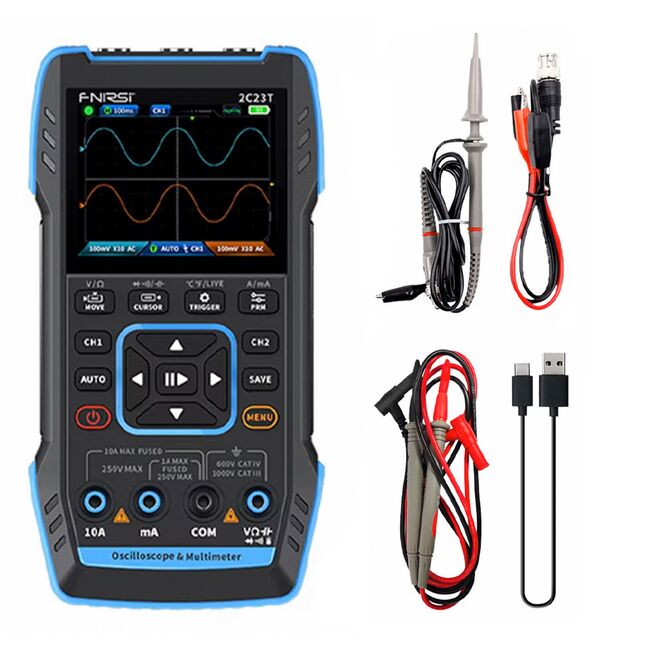

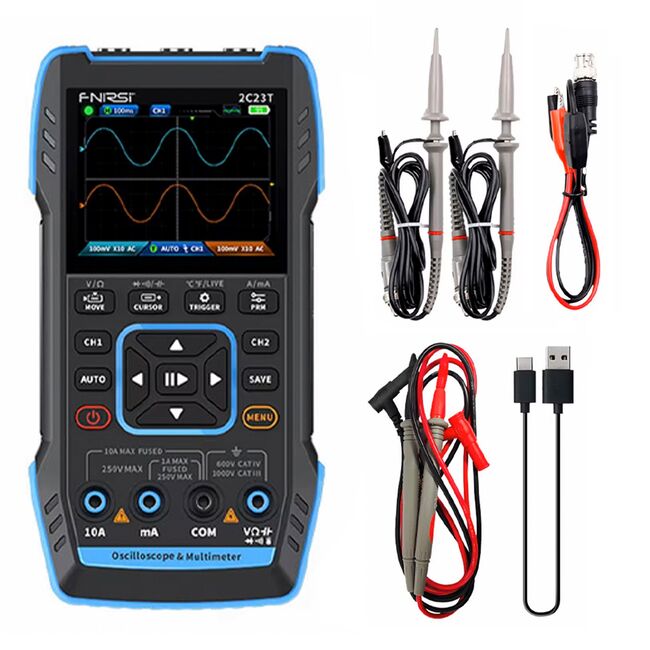

Package includes:

• 1 x 2C23T
• 1 x P6100 Probe (The upgraded version is two)
• 1 x Crocodile Clip Probe
• 1 x Multimeter Test Leads
• 1 x Charging Cable
