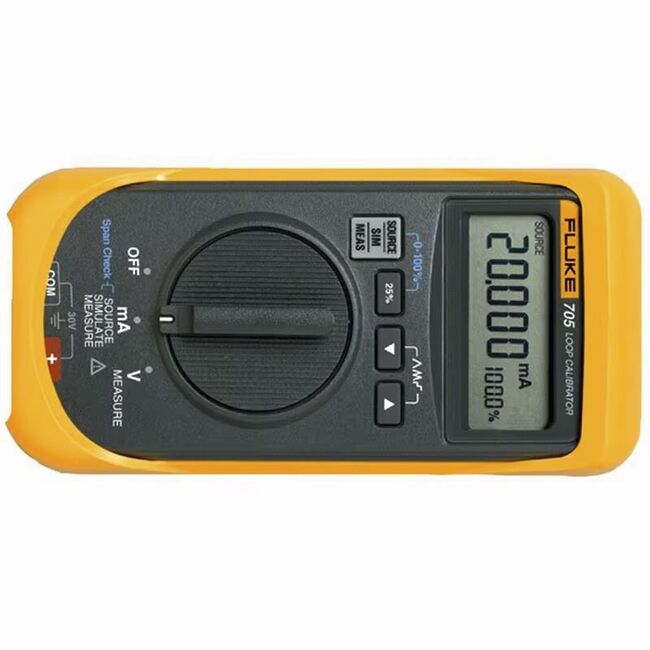

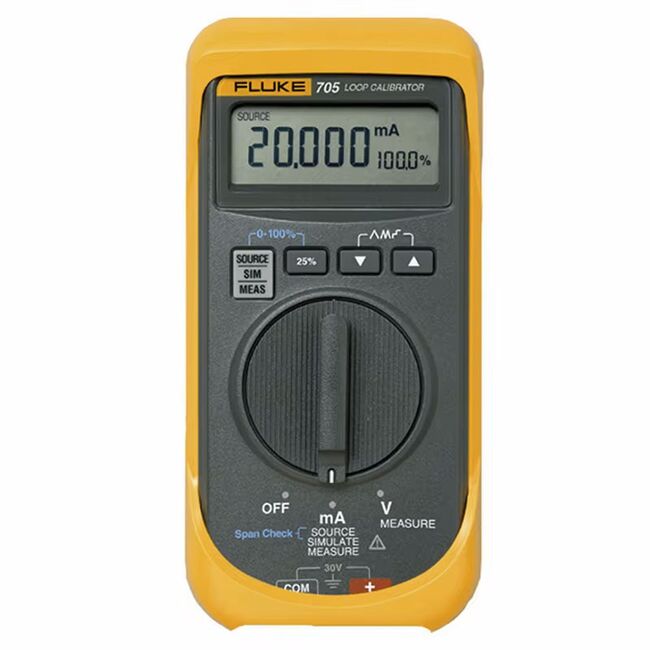

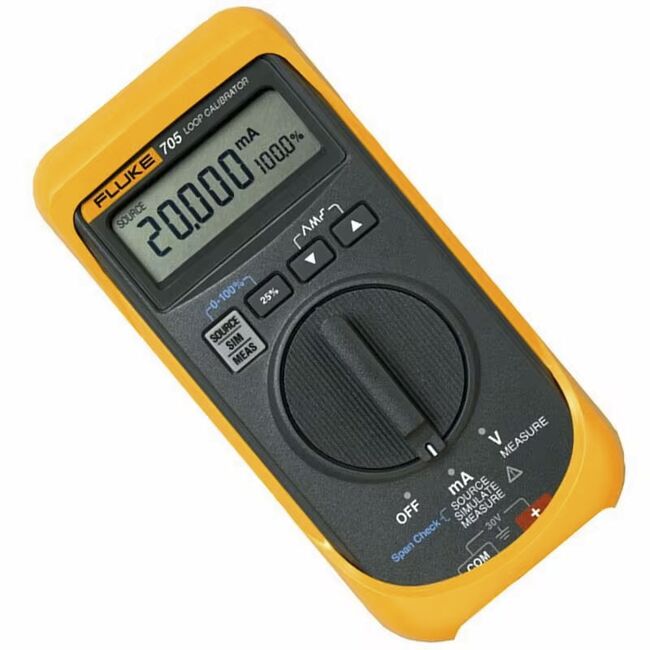

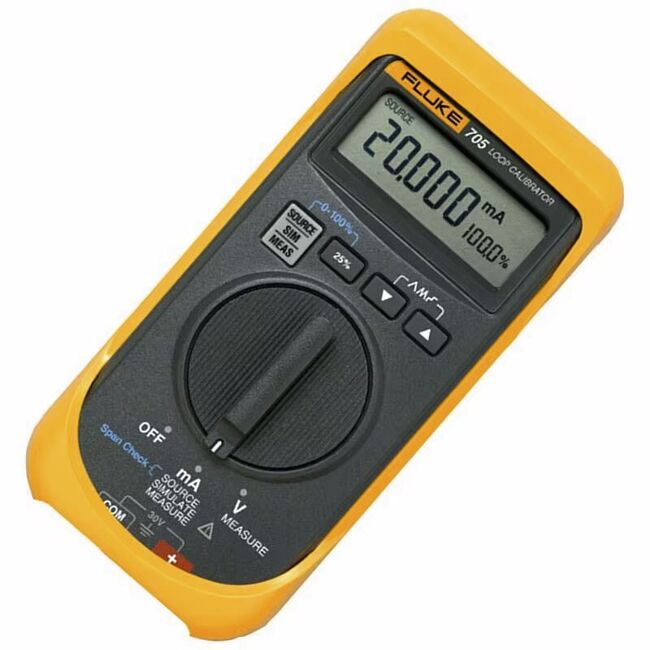

Fluke 705 Loop Process Calibrator for mA Sourcing Simulation and Measurement

Features:

  • mA sourcing, simulation, and measurement
  • 0.02% accuracy and 0.001 mA resolution
  • Simultaneous mA and % of span display
  • Selectable step or ramp outputs
  • 24 V Loop supply with mA measure
  • DC 0-28V measurement to check Loop Voltage
  • Easy battery exchange without opening the case
  • Compact case with separate protective holster

Specification:

  • Range: 0V to 28V
  • Resolution: 1mV
  • Accuracy: 0.025% Rdg 1 counts
  • Current measurement Range: 0mA to 24mA
  • Resolution: 0.001 mA
  • Accuracy: 0.02% Rdg +2counts
  • Current sourcing Range: 0mA to 20mA or 4mA to 20mA
  • Accuracy: 0.02% Rdg +2counts
  • Drive capability: 1000Ω@24mA
  • Loop power while measuring mA: 24V
  • Voltage sourcing: n/a
  • Display current and of span: Yes
  • Auto step, auto ramp: Yes
  • Spam Check: Yes
  • Battery life: 18 hours typical, at 12 mA

Package includes:

  • 1 x Loop Process Calibrator(with Battery)
