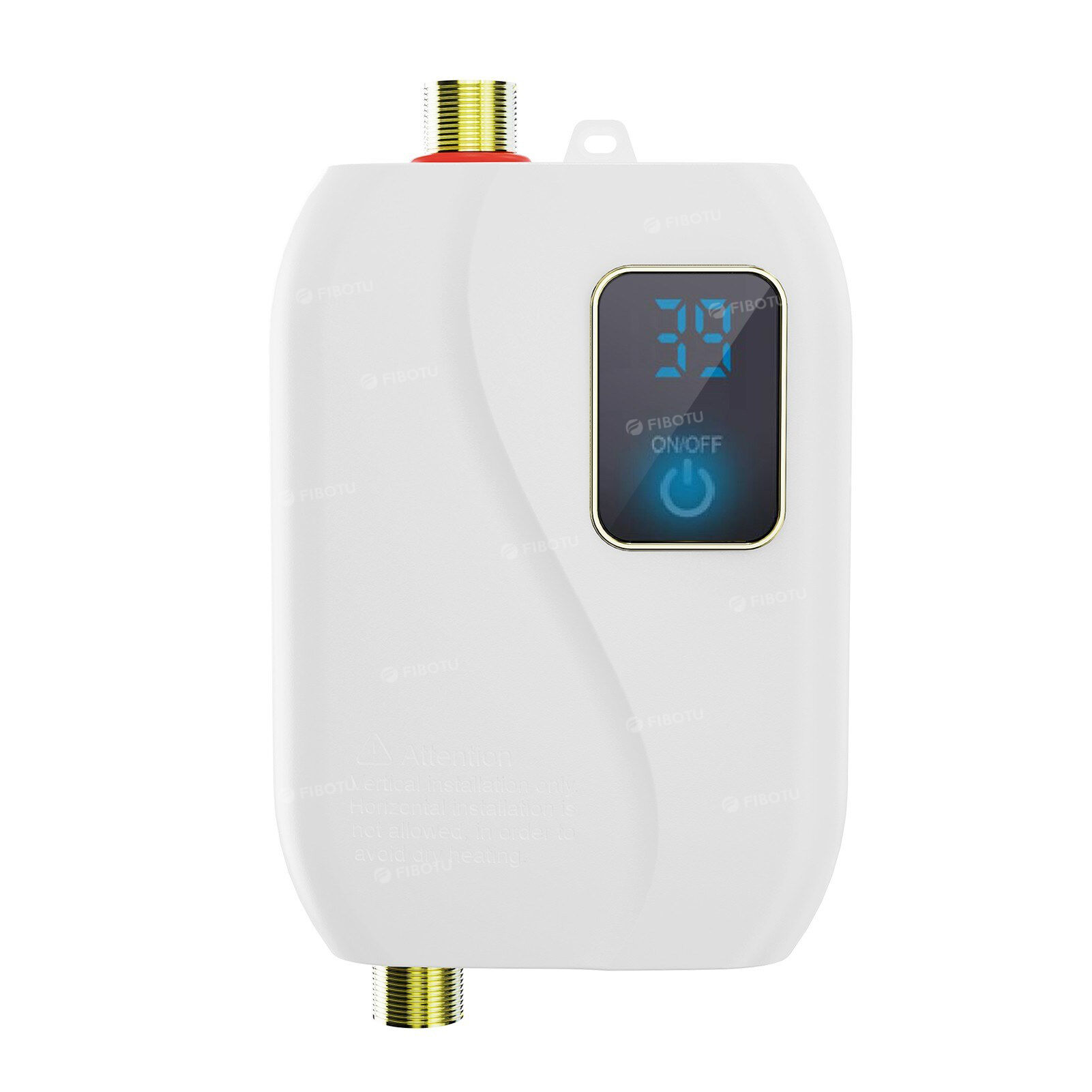

Electric Mini Tankless Water Heater 220V 3500W Bathroom Kitchen Washing Machine with LCD Display for Shower Bathroom Kitchen Washing Machine EU Plug
Instantaneous water heaters are small in size, fast to heat up, easy and convenient to install, suitable for installation in kitchens, toilets, showers, public bathrooms, etc., suitable for hand washing, dish washing, face washing and bathing.Features:
- It is a high efficiency water heater with compact size to produce the hot water very quickly.

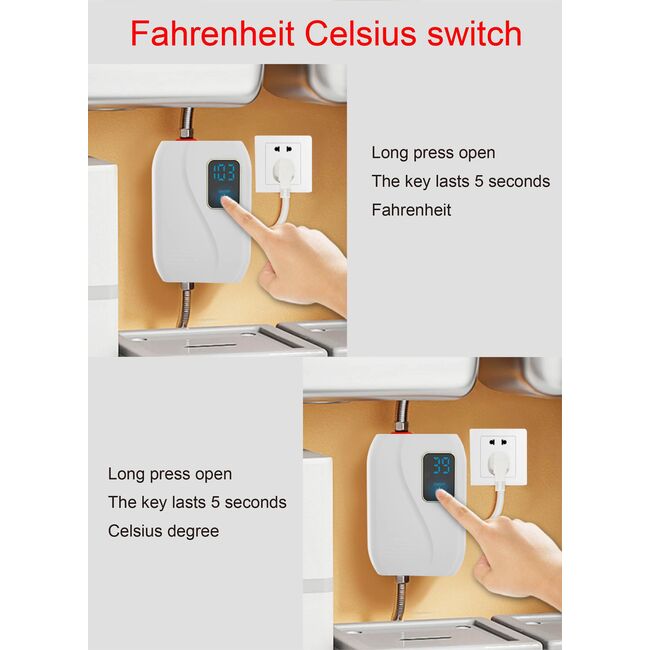

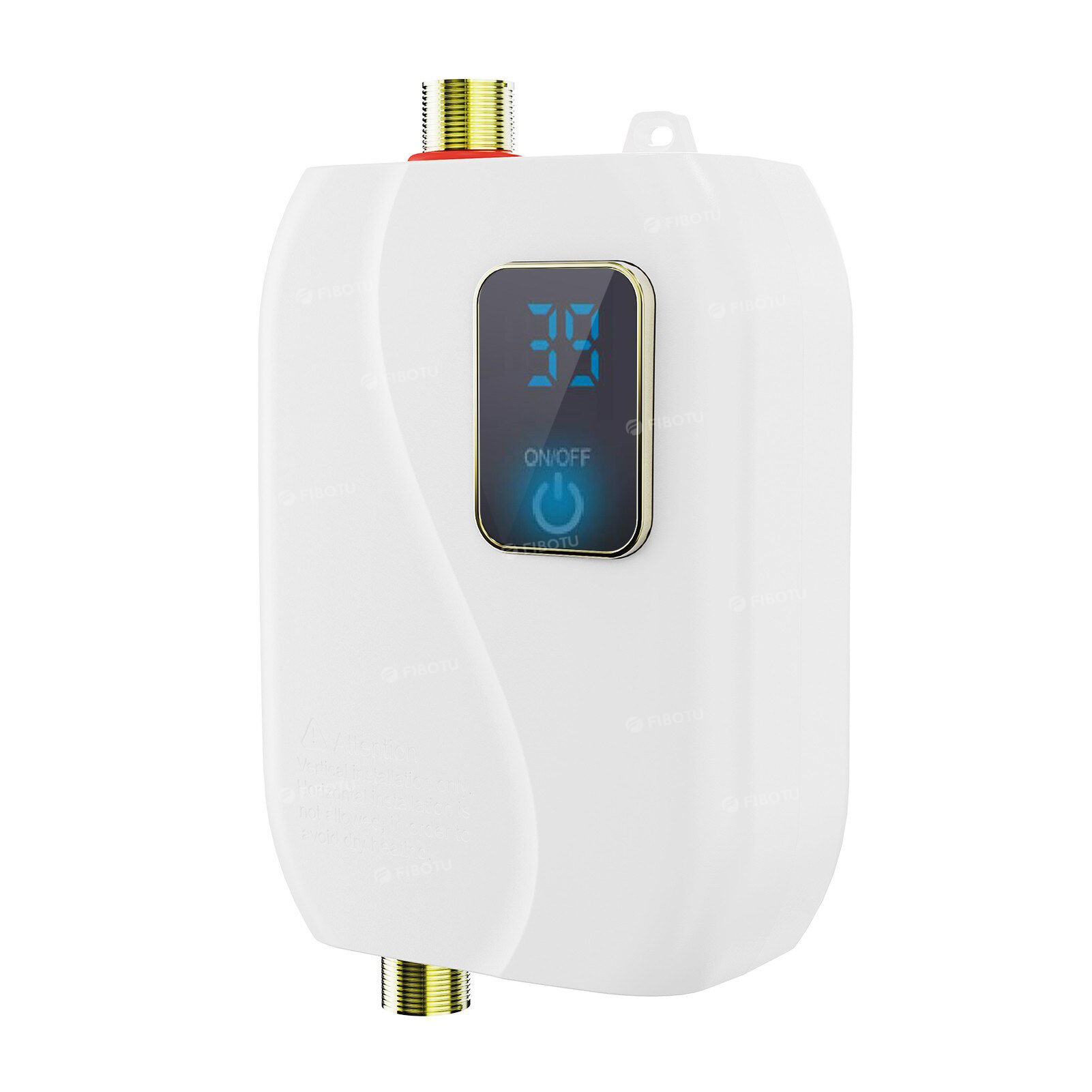

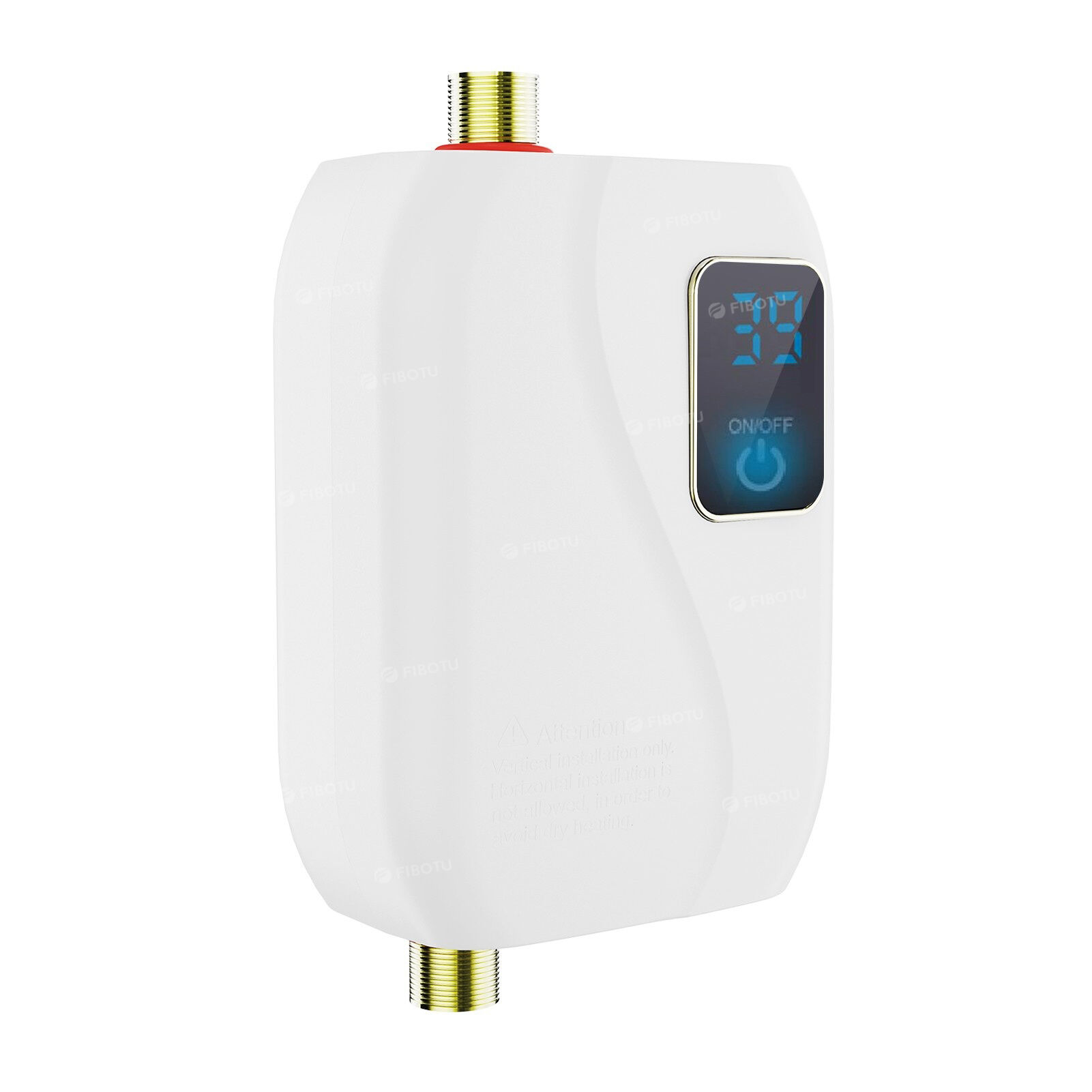

- With LCD display, for more convenient.
- Freely adjustable water temperature by water flow, easy to use.
- Safe heater, electricity saving, water saving, no pollution, no exhaust gas.

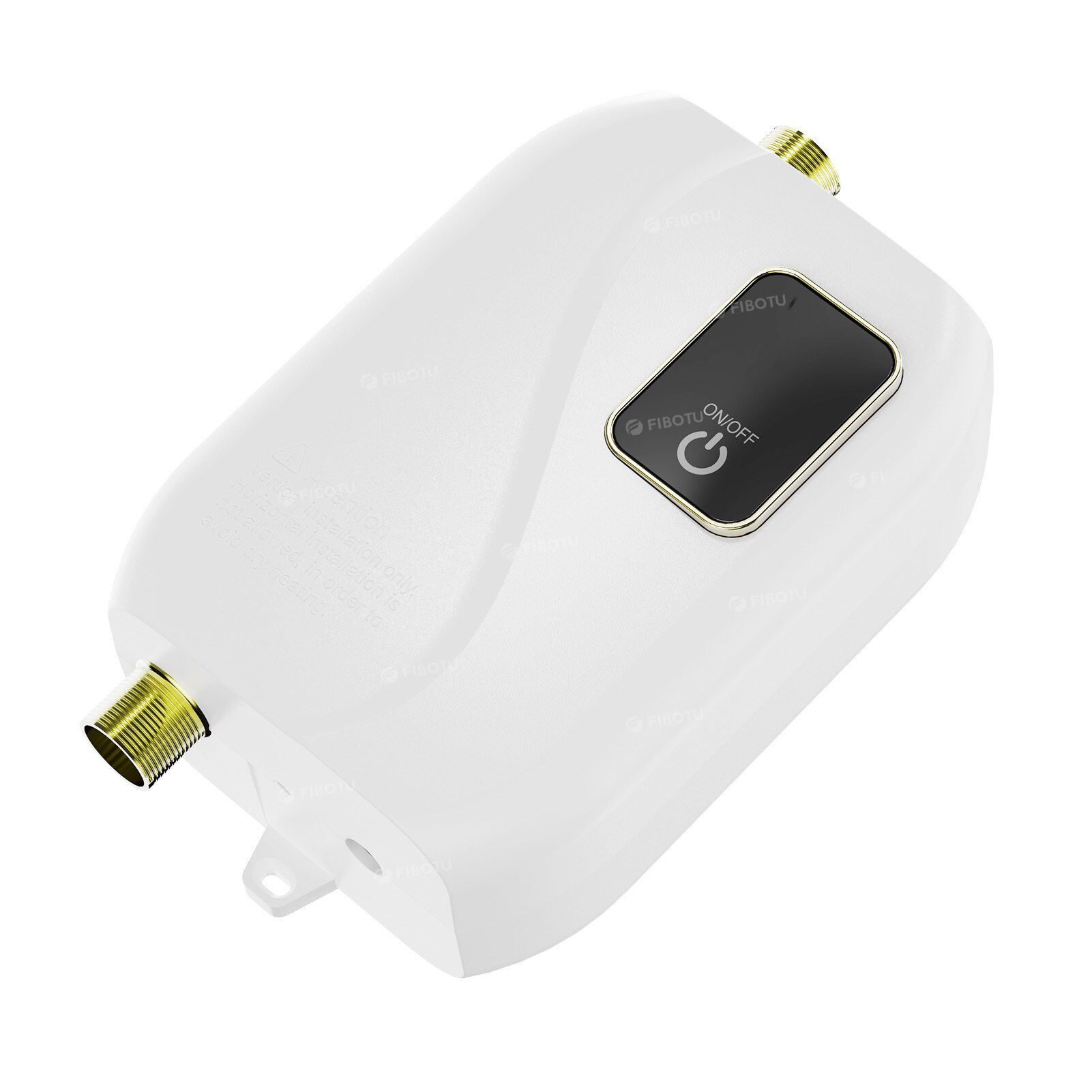

- ABS construction with mini design, it is durable, elegant and fashionable.

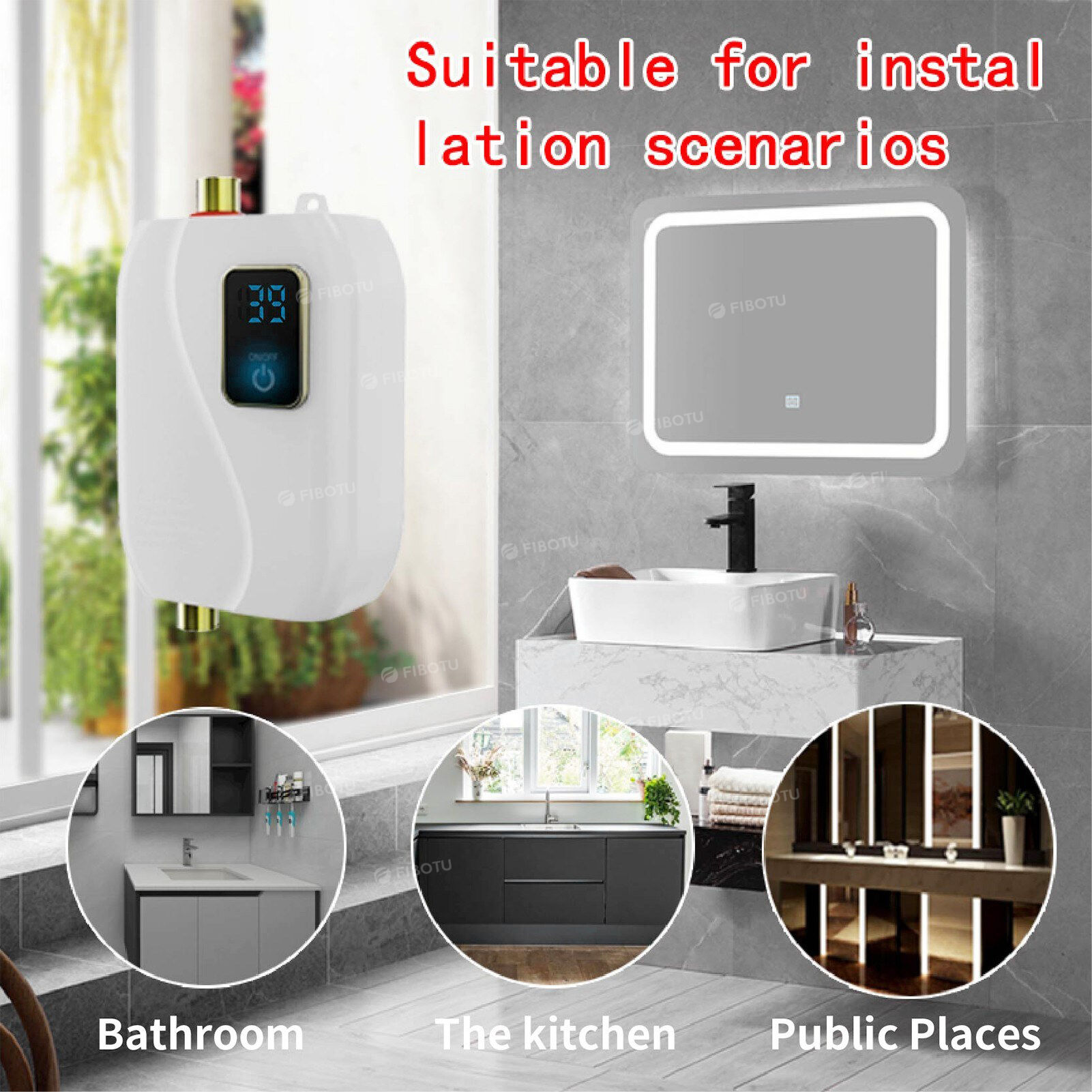

- This is a water heater for the application of changing cold water into hot water and it will meet your various needs such as kitchen, bathroom, public toilet, etc.

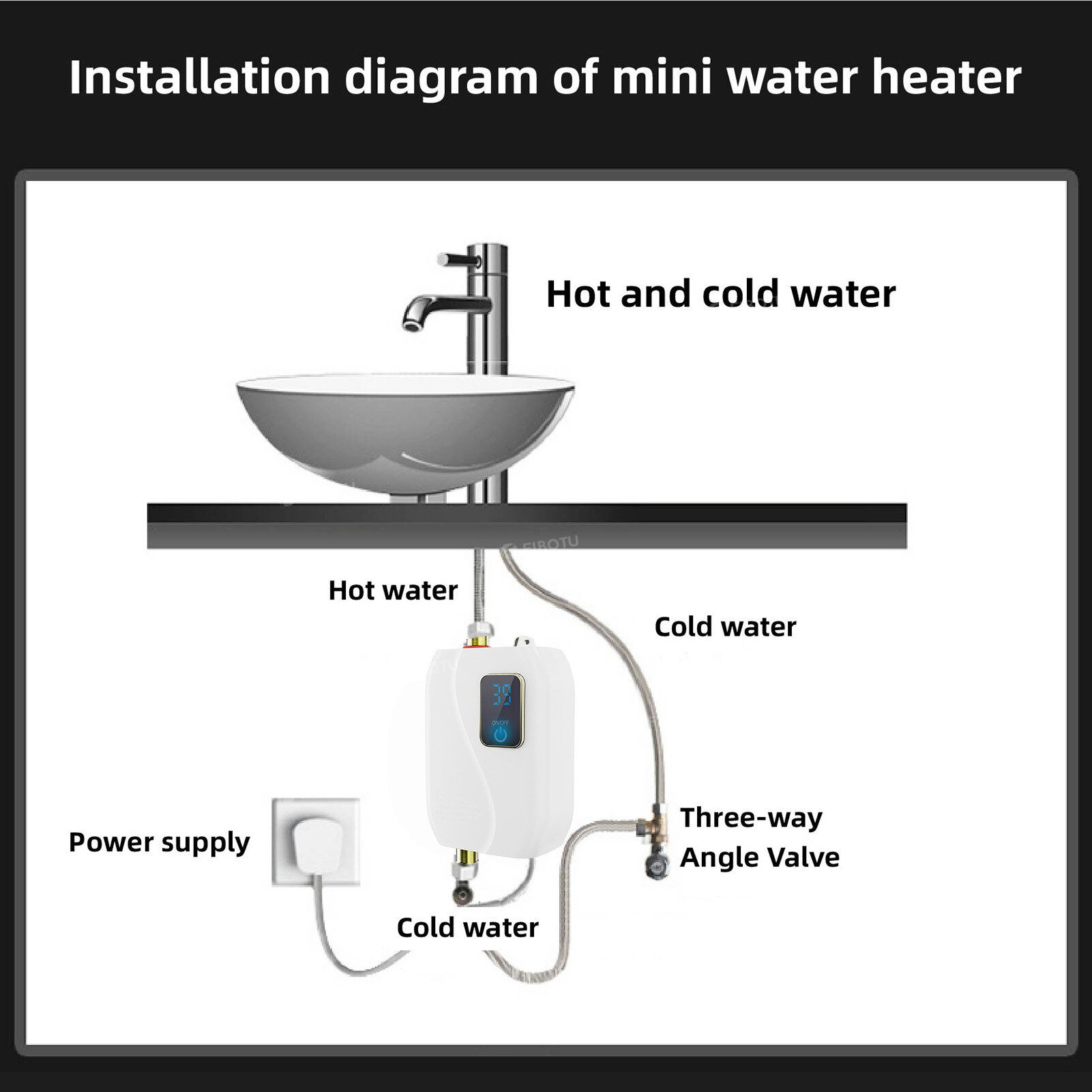

Installation Environmental requirements:

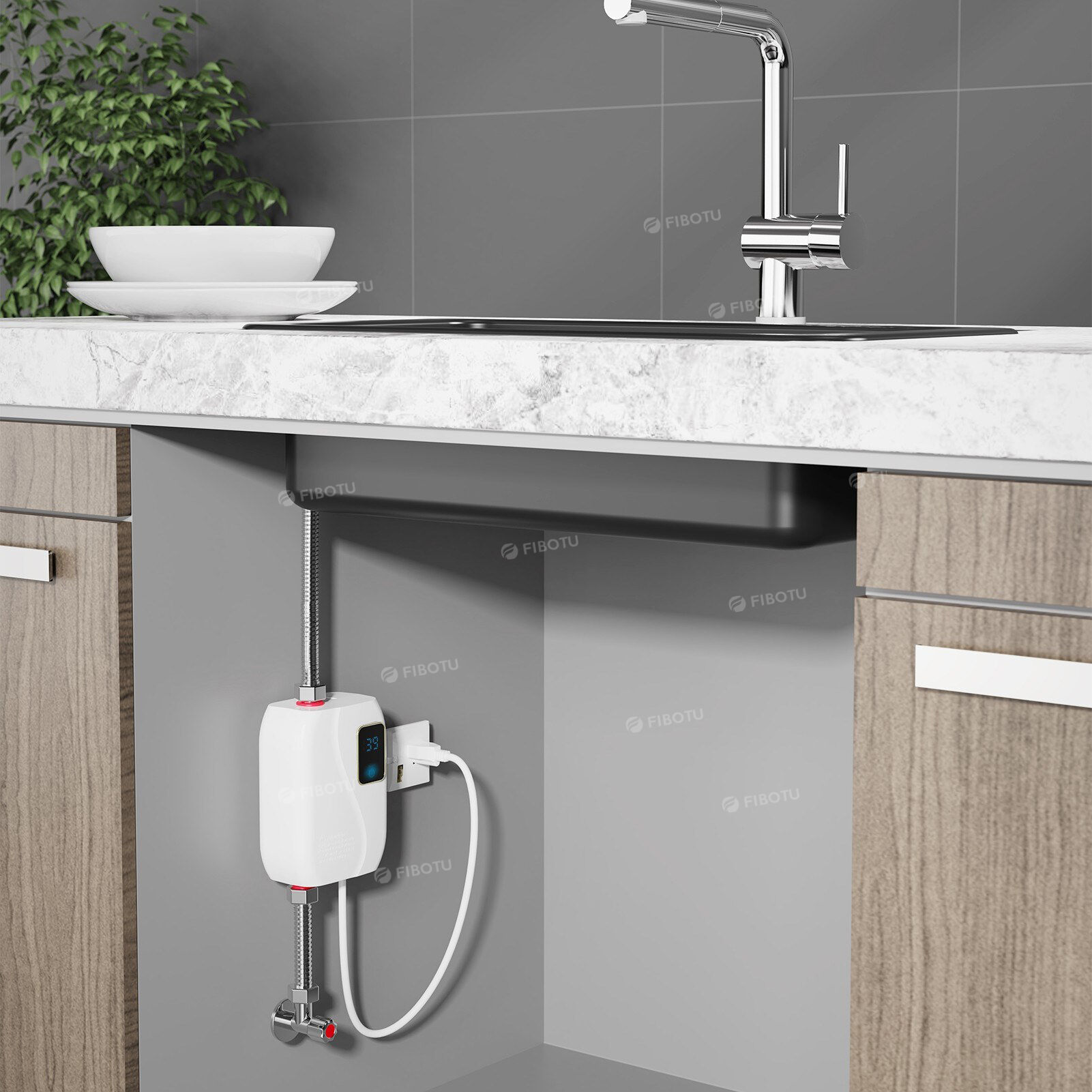

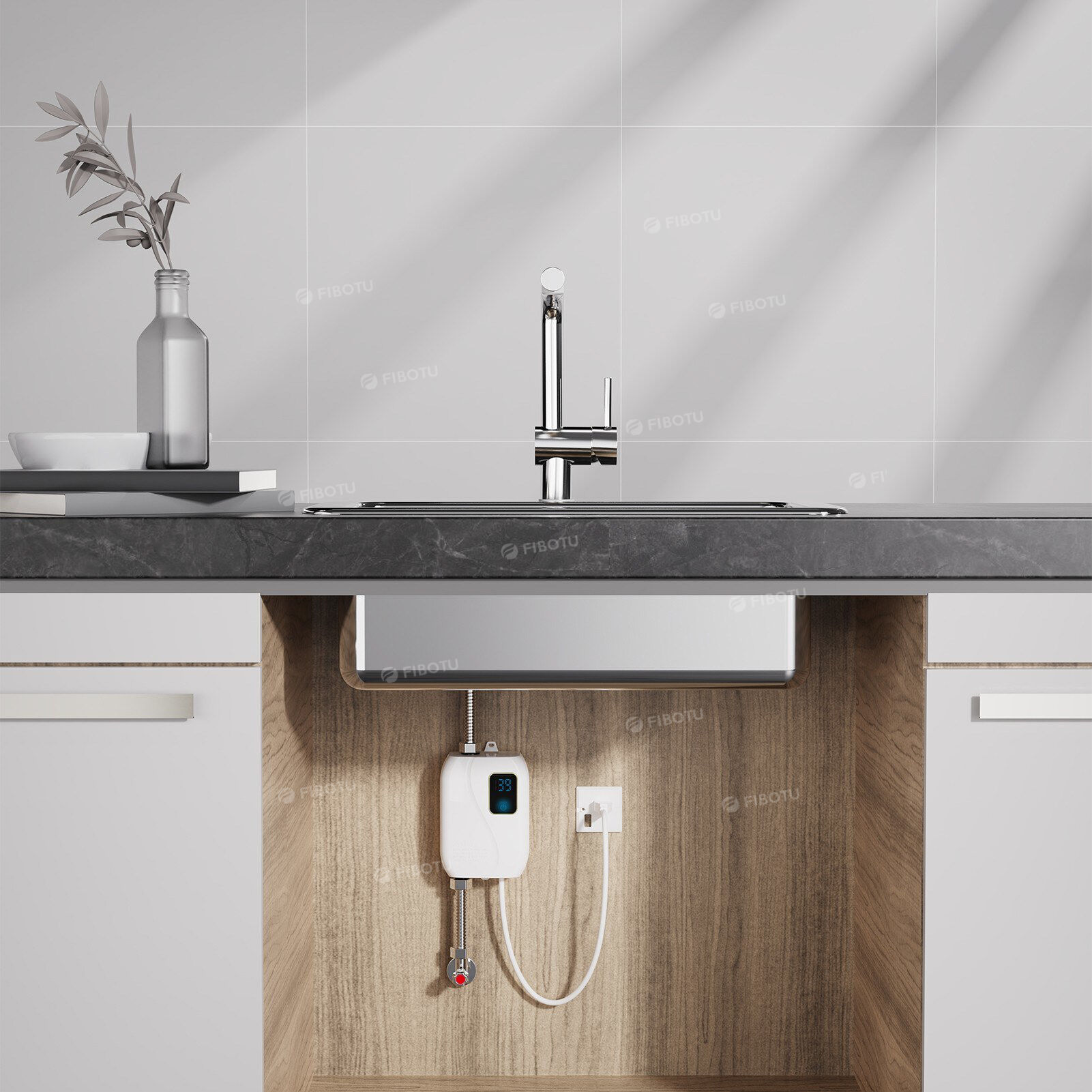

- Kitchen, Bathroom, Toilet, Shower room, Wire requirements greater than 2.5 square; Circuit breaker greater than 32A.
Common faults and their treatment:
- 1 . Check that the power supply is normally energised, energised indicator will light up to show the temperature, not energised will not light up.
- 2. Normally energised, the water flow open, press the on/off button, the machine starts heating, water heater display: water temperature.
- 3. If the temperature does not rise, there are two options: one is the water heater internal temperature control switch (overheat protection switch) to skip, press the temperature control switch, can be recovered. Another is the heating tube failure, replace the heating tube can be.
- 4. If the display does not warm up, the display operation lamps are reversed, that is, the water flow has not passed through the water heater, or the water pressure is too low, or the installation direction is incorrect, make sure that the water inlet and outlet are installed properly, but if the water pressure is sufficient, there is a water flow is not warming up, then check the water heater inlet turbine, there may be dirt clogging the turbine, causing the water heater not to start.
- 5. Water heater outlet pipe length is recommended not to exceed 3 metres. If exceeded, may be due to the water pipe long water pressure difference, water pressure is not enough to start. (If the water tower is used in rural areas, the height of the water tower is required to be higher than 10 metres, so that the water pressure reaches the value of the start).
- 6. The display shows E1 excess temperature, E3/E4 or temperature sensor failure, the first power off, with cold water over the machine, and then powered to use, attention to the usual use of water flow is not too small!
- 7. heating tube failure display E2, need to replace the heating tube.

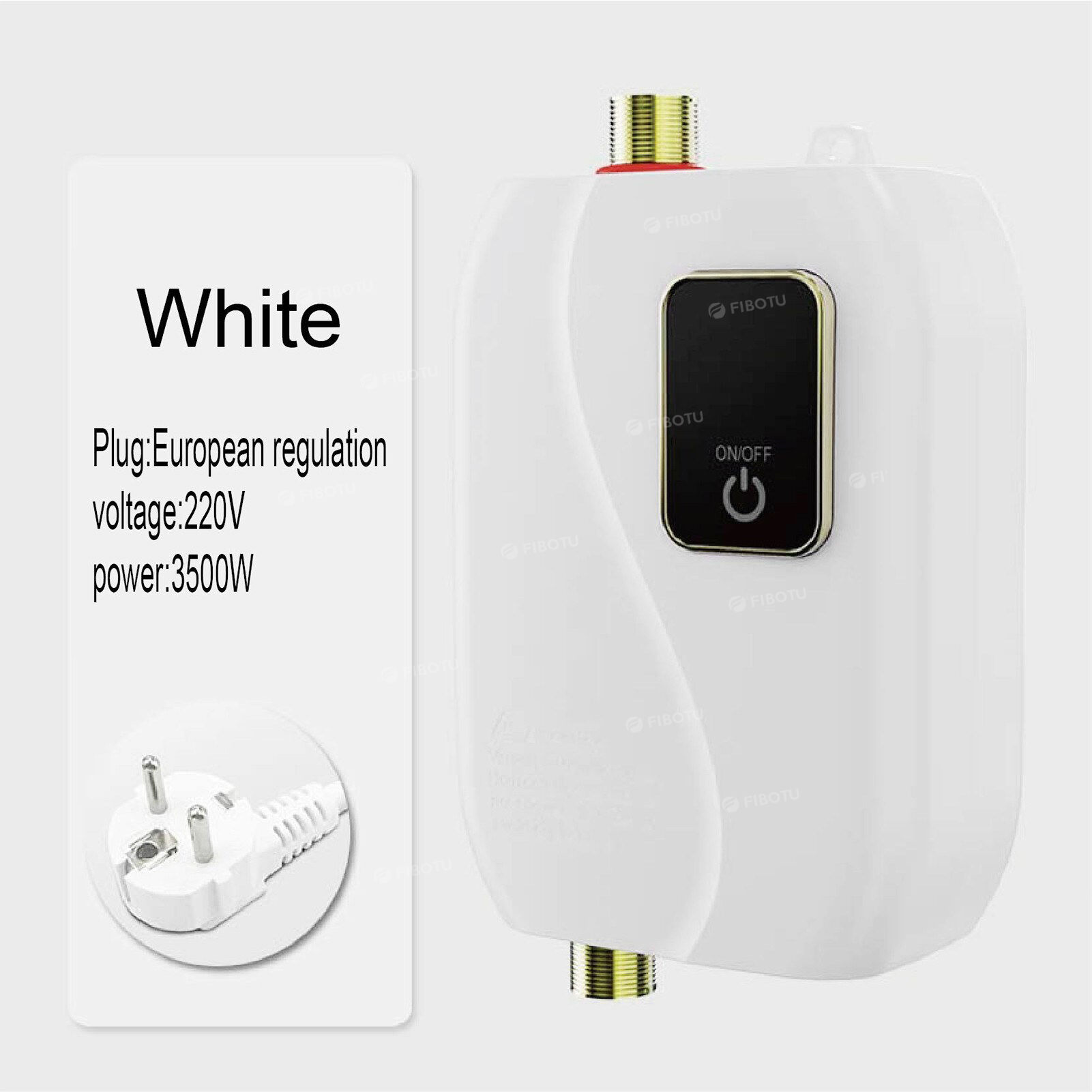

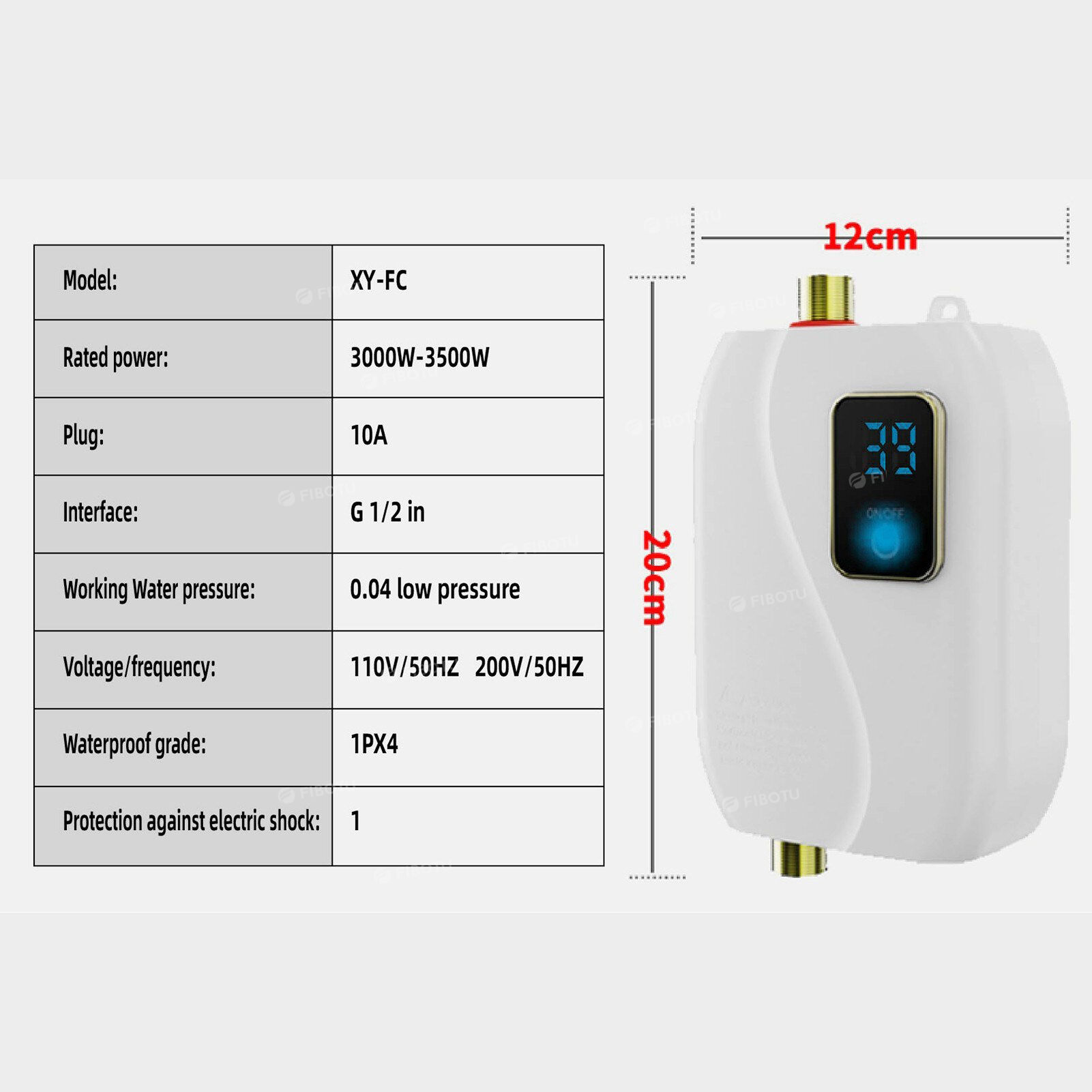

- Plug: EU / US / UK / AU (Optional)
- Material: ABS
- Colour: White
- Voltage: 110V(US), 220V(EU/UK/AU)
- Power: 3000W(US/UK), 3500W(EU/AU)
- Wire requirements: 1.5mm² (UK), 2.5mm² (EU/US/AU)
- Trip switch: ≥16A (UK), ≥32A (EU/US/AU)
- Frequency: 50-60Hz

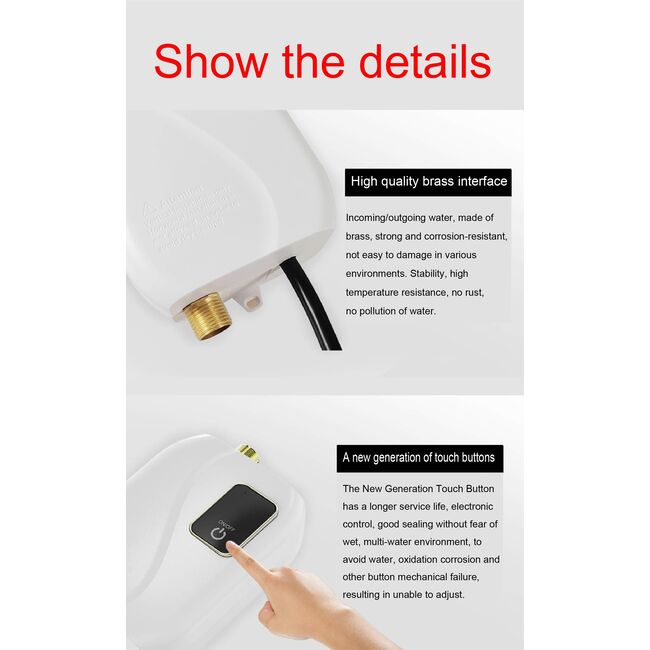

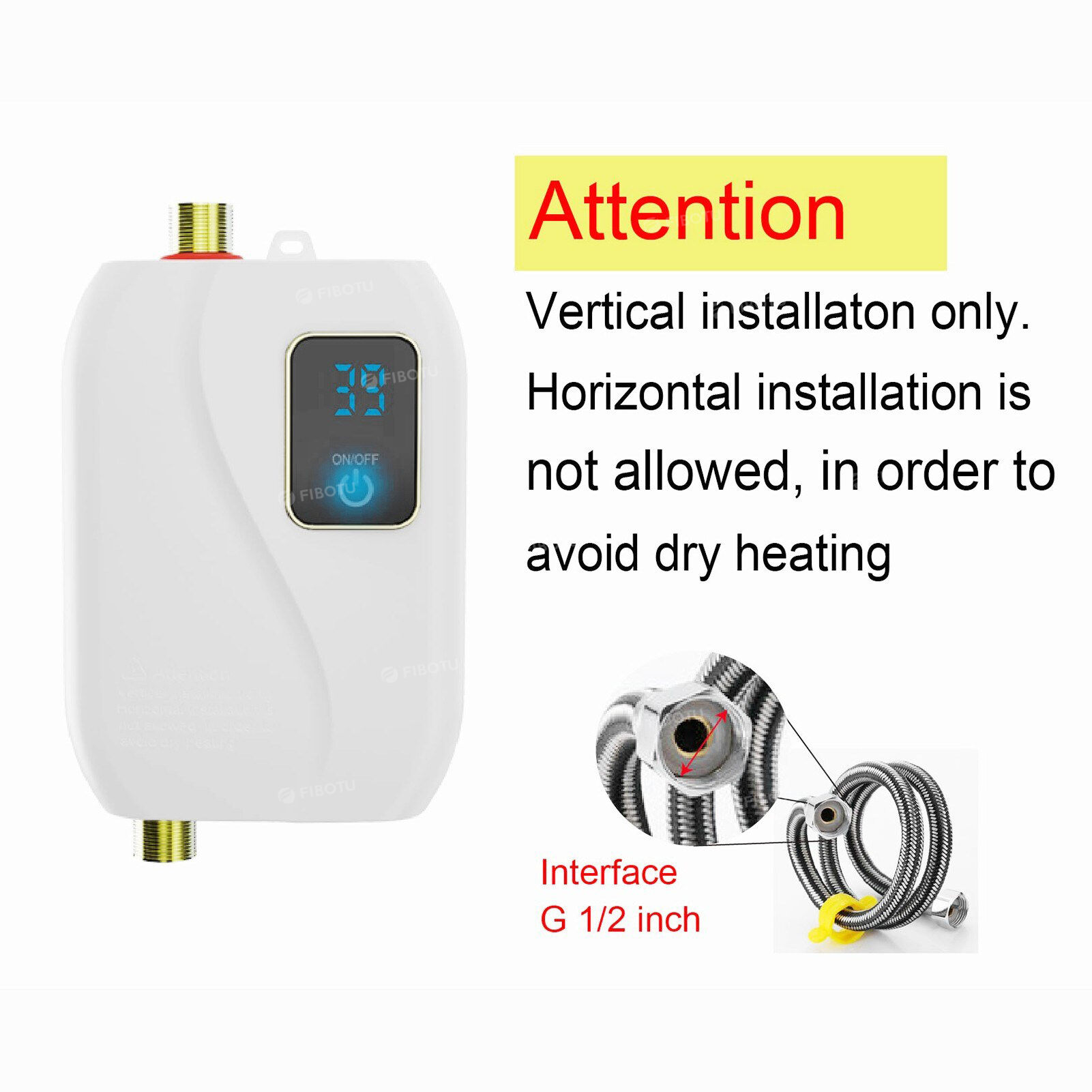

- Water pipe interface: G 1/2in
- Working water pressure: 0.01 low pressure
- Waterproof class: 1PX4
- Temperature regulation range: 20℃-50℃ / 68℉-122℉ C

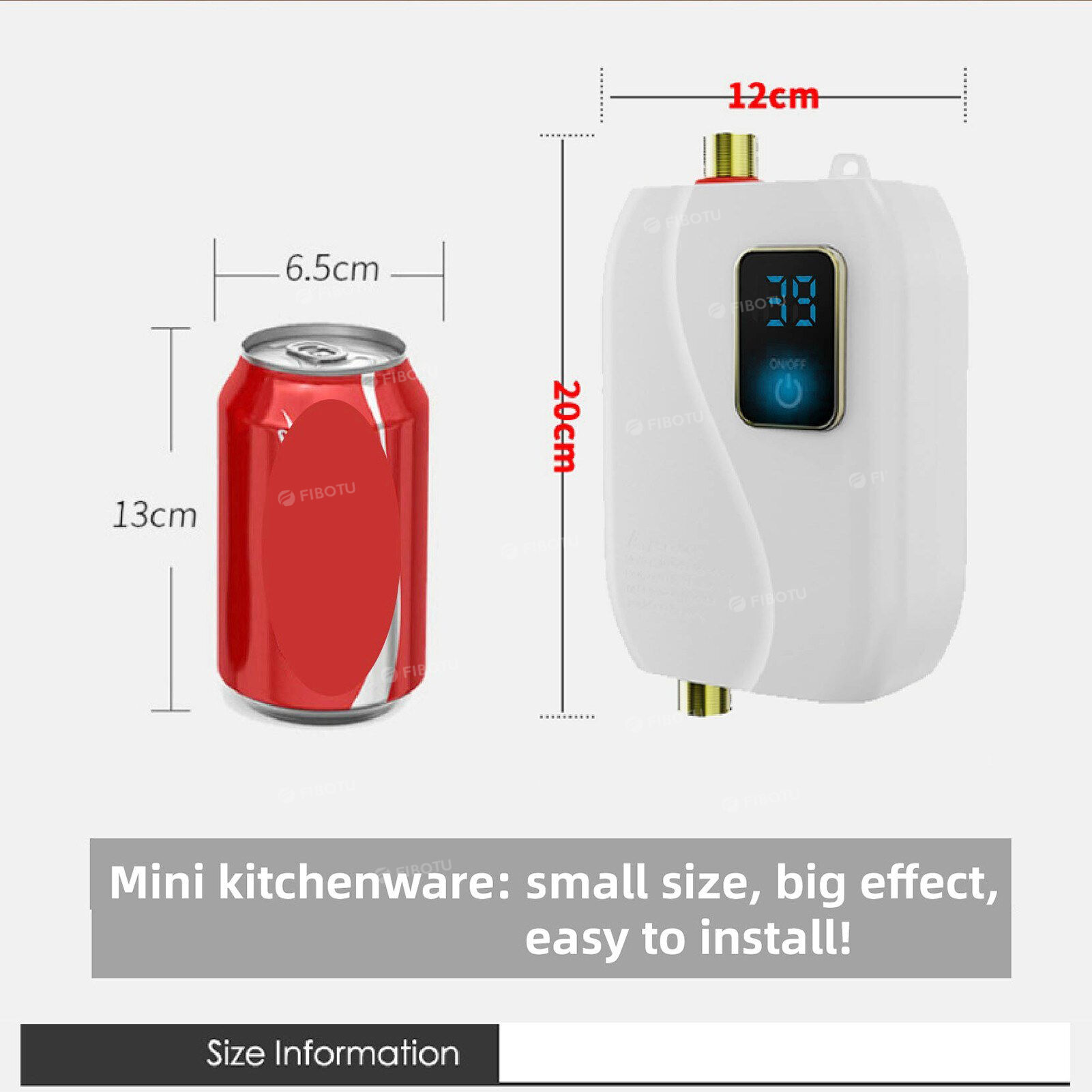

- Item size: 195 * 116 * 70mm / 7.68 * 4.57 * 2.76in
- Item weight: 1000g / 2.20lb
- Package weight: 1100g / 2.43lb
- Package size: 23.5 * 19 * 10cm / 9.25 * 7.48 * 3.94in

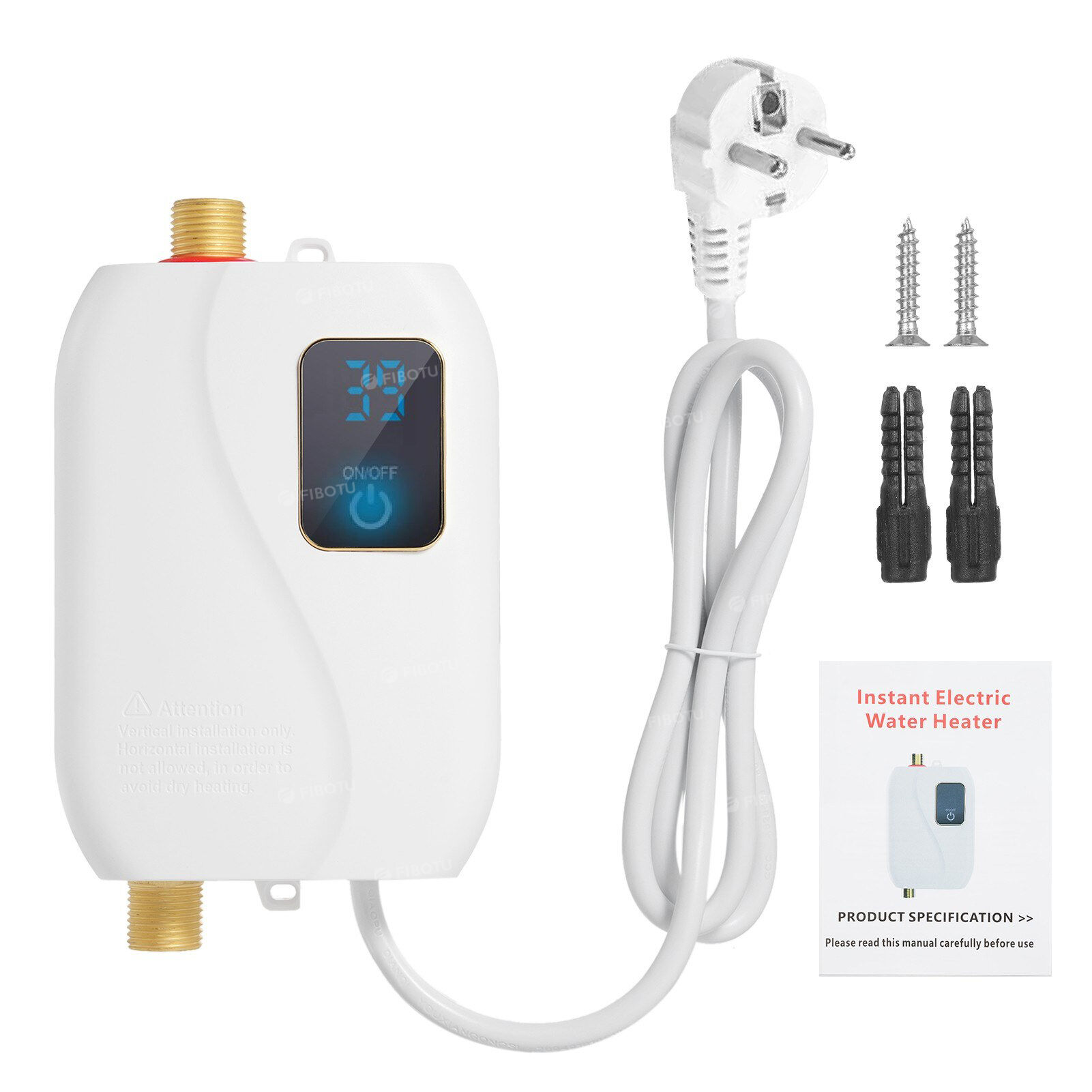

Package List:
- 1 * Mini water heater
- 2 * fixing screws
- 2 * Screw protector
- 1 * User manual (English)
